Honeywell Delta DA Quad+ M/EBUS - 271800.1

Honeywell2718001

Used

Honeywell / Eltek Fire & Safety
Delta DA Quad+ M/EBUS - Part.No: 271800.1

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer Honeywell / Eltek Fire & Safety
Model Delta DA Quad+ M/EBUS
Manufacturers part number 271800.1
Alternative part number 2718001
Serial number Several units in stock
Year 2024 (label 11/01/2024)
Other Fire detection and alarm module, Rev. 01; made by Honeywell Life Safety AS, Drammen; country of origin Romania
Amps Input 0.7 A; output max. 2.55 A
Volt Input 230 V AC, 50/60 Hz; output 24 V DC; battery 24 V DC
Connection / terminals RS232 (COM1), USB, LON A/B, loop/outputs TB1–TB8, relays RLA/RLB, battery and temperature sense, mains 230 V AC (fuse 1 A, battery fuse 4 A)
Standards / approvals EN 54-2, EN 54-4; CE 0470 001-CPR-2019 / 004-CPR-2019

More info

Honeywell / Eltek Fire & Safety
Delta DA Quad+ M/EBUS - Part.No: 271800.1

Label data (from photos)

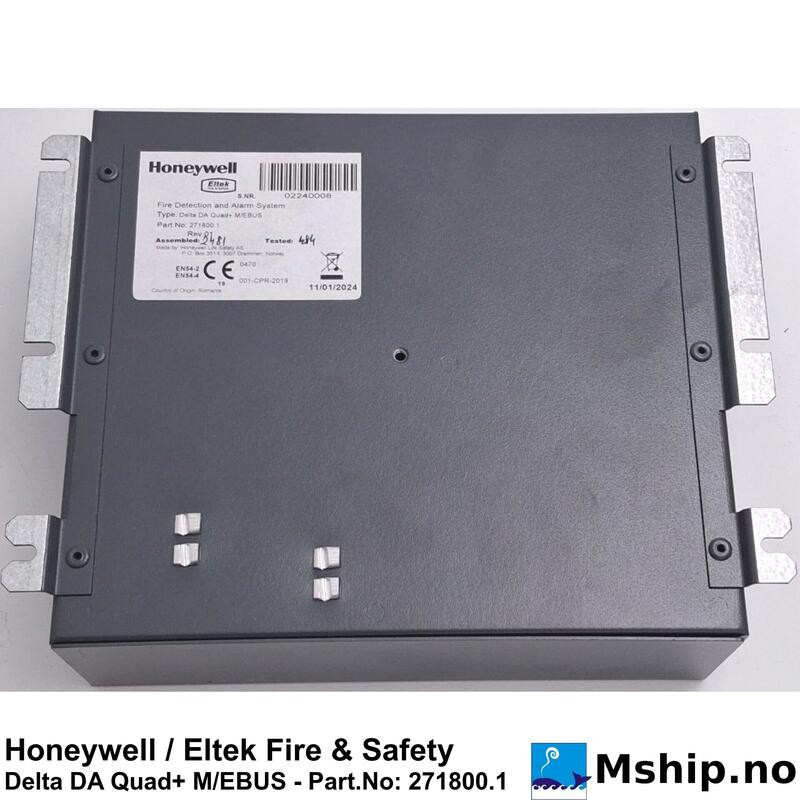

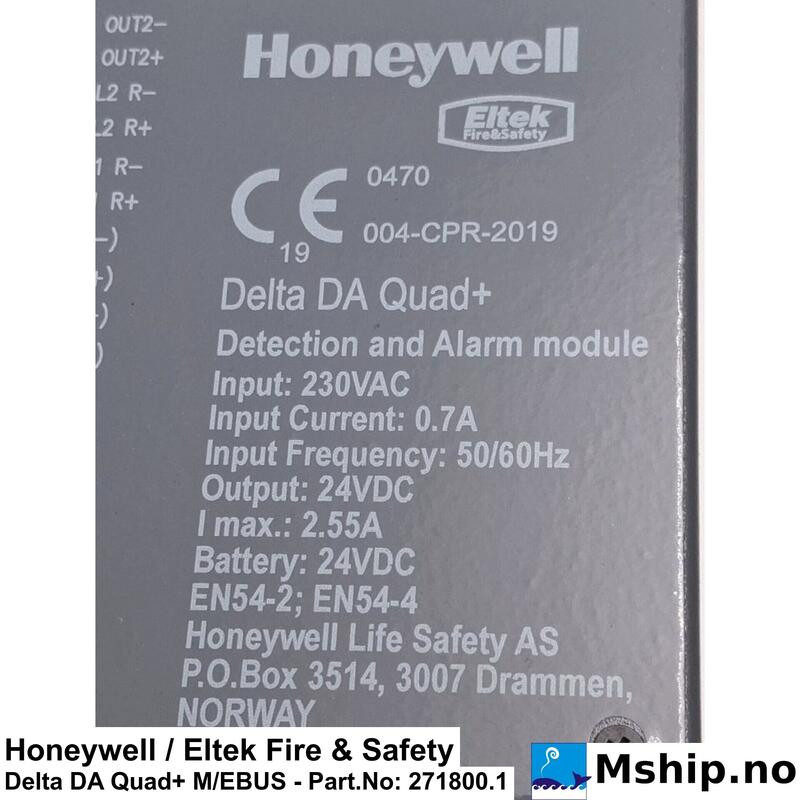

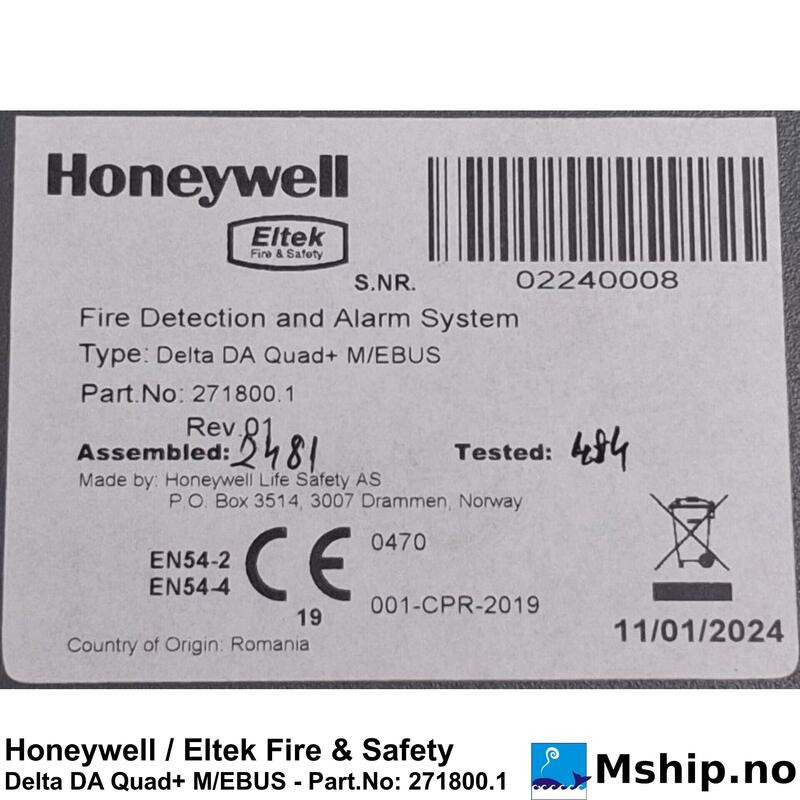

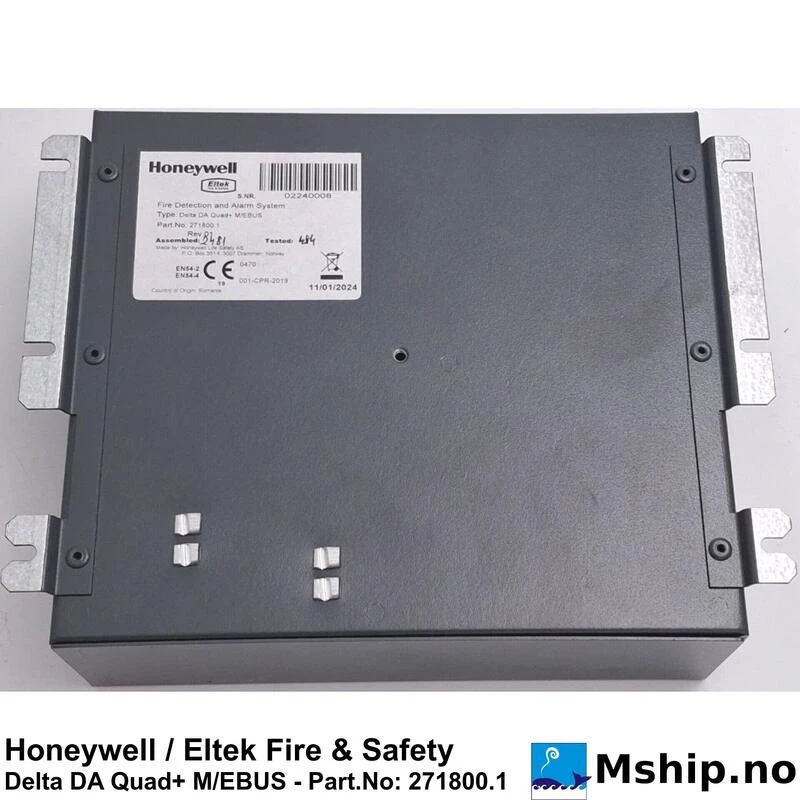

Type label: Honeywell / Eltek Fire & Safety fire detection and alarm system, type Delta DA Quad+ M/EBUS, part no. 271800.1 Rev. 01, EN 54-2 and EN 54-4, CE 0470, dated 11/01/2024. Input 230 V AC 50/60 Hz 0.7 A, output 24 V DC max. 2.55 A, battery 24 V DC. Supply ratings: CN1 3–4 300 mA, CN2 13–14 1 A, CN2 11–12 100 mA. Three units in stock.

Connection diagram

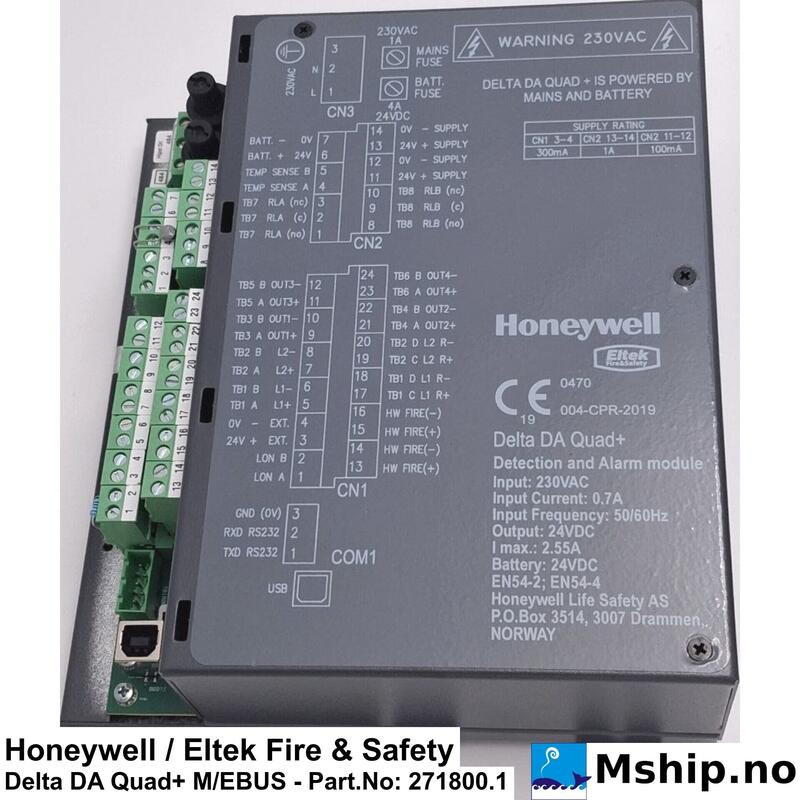

From the terminal legend on the cover. CN3: mains 230 V AC (1 L, 2 N, 3 earth). CN2: battery 24 V (6 +, 7 −), temperature sensor (4 A, 5 B), relay RLA/TB7 (1 no, 2 c, 3 nc), relay RLB/TB8 (8 no, 9 c, 10 nc), 24 V supply out (11/12 100 mA, 13/14 1 A). CN1: LON A/B (1/2), 24 V ext. out (3 +, 4 −, 300 mA), loop L1 (5/6, return 17/18), loop L2 (7/8, return 19/20), outputs OUT1–OUT4 (9/10, 21/22, 11/12, 23/24), hardwired fire inputs (13–16). COM1 RS232: 1 TXD, 2 RXD, 3 GND; USB.

Delta DA Quad+ connection diagram 1 – power, relays, LON

Delta DA Quad+ connection diagram 2 – loops and outputs
