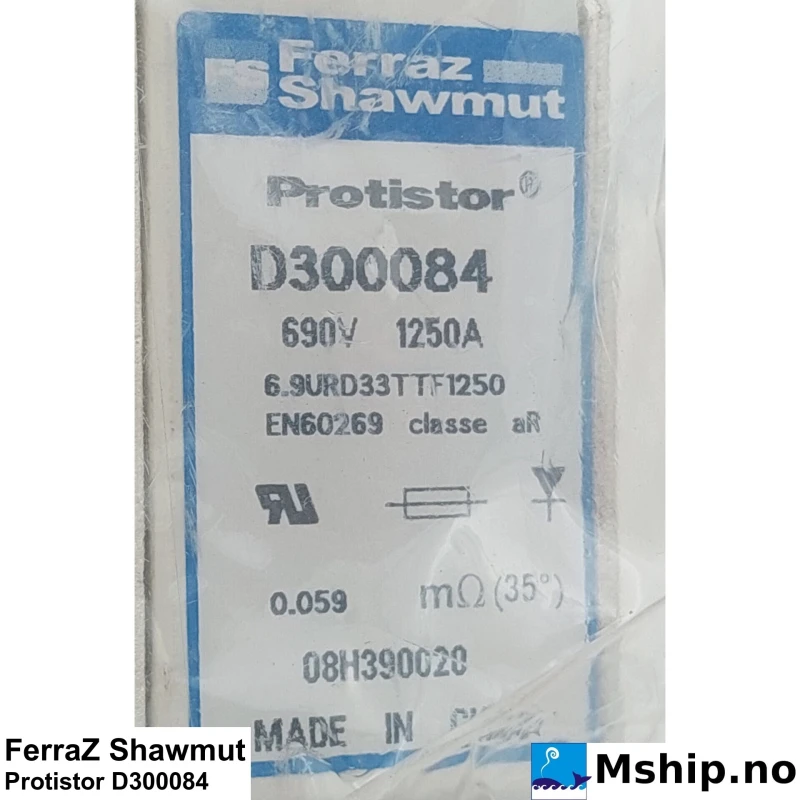

Ferraz Shawmut Protistor D300084

Ferraz-D300084

New product

Ferraz Shawmut
Protistor D300084

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer Ferraz Shawmut
Model D300084
Manufacturers part number D300084
Alternative part number 6.9URD33TTF1250 / 69URD33TTF1250 / PC33UD69V1250TF
Other High-speed fuse, size 33, aR. Breaking capacity 200 kA. I²t melting 355 kA²s / clearing 2053 kA²s. Power loss 150 W. 0.059 mΩ. Striker indicator. Lot 08H390020. IEC 60269-4 / EN 60269, VDE 636-23 class aR, UL/CSA Recognized E76491, CCC, CE
Weight Approx. 0.81 kg
Amps 1250 A
Volt 690 VAC (IEC) / 700 VAC (UL)
DIMENSIONs 73 x 50.6 x 78.5 mm

More info

Ferraz Shawmut
Protistor D300084

High-speed fuse for semiconductor protection, square body, size 33, class aR
690 VAC (IEC) / 700 VAC (UL), 1250 A
Ferraz Shawmut is now Mersen: this fuse is sold today as Mersen item D300084, catalogue no. PC33UD69V1250TF
Former reference 6.9URD33TTF1250

Breaking capacity: 200 kA
I²t: melting 355 kA²s, clearing 2053 kA²s at rated voltage
Power loss at rated current: 150 W
Cold resistance: 0.059 mΩ

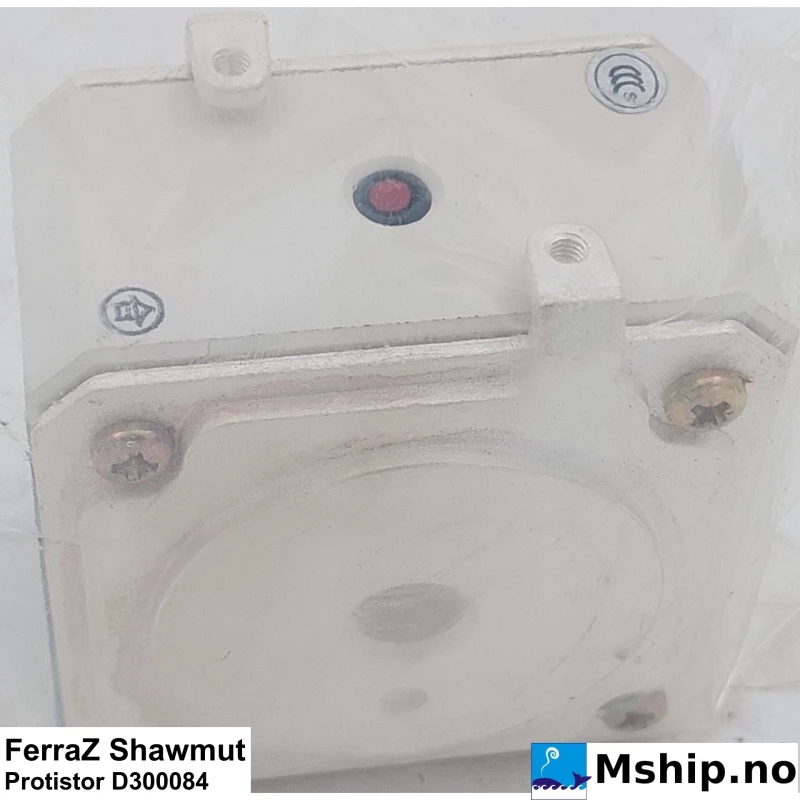

Striker indicator (can operate a microswitch)

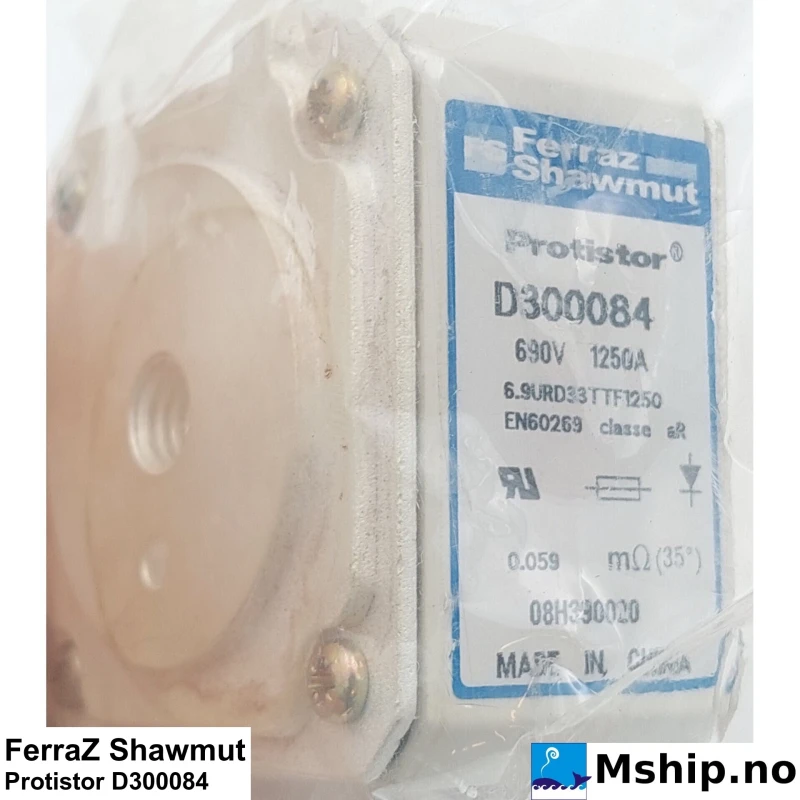

Flush ends with metric threads, bolted mounting, ceramic body, silver-plated contact surfaces, non-magnetic hardware
Dimensions: 73 x 50.6 x 78.5 mm, weight approx. 0.81 kg
Standards: IEC 60269-4 / EN 60269 and VDE 636-23 (class aR), UL/CSA Recognized (E76491), CCC, CE

For protection of semiconductors (diodes, thyristors, IGBTs) in inverters, motor drives, UPS systems and similar equipment up to 690 V.

New, in original packaging.
