CAREL IR33 — Manufacturer: CAREL, Model: IR33, Manufacturers part number: IR33C0HB00, Other: 4 relay outputs (compressor, defrost, evaporator fan, auxiliary), 2 NTC inputs (10 kΩ at 25 °C), 2 digital inputs, real-time clock, HACCP, IR receiver, buzzer, RS-485, IP65 front, CE, Weight: 220 g, Amps: Compressor 16 A + defrost, fan, aux 3 × 8 A, Volt: 115/230 VAC, HZ: 50/60 Hz, DIMENSIONs: Front 76.2 × 34.2 mm, panel cut-out 71 × 29 mm View larger
Previous Next

CAREL IR33

carel-IR33C0HB00

New product

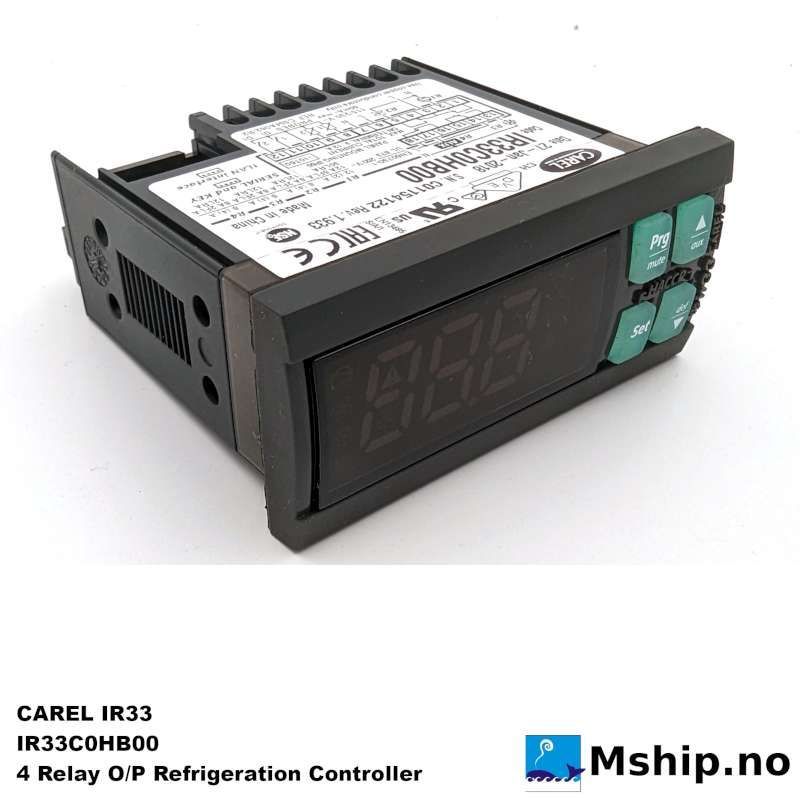

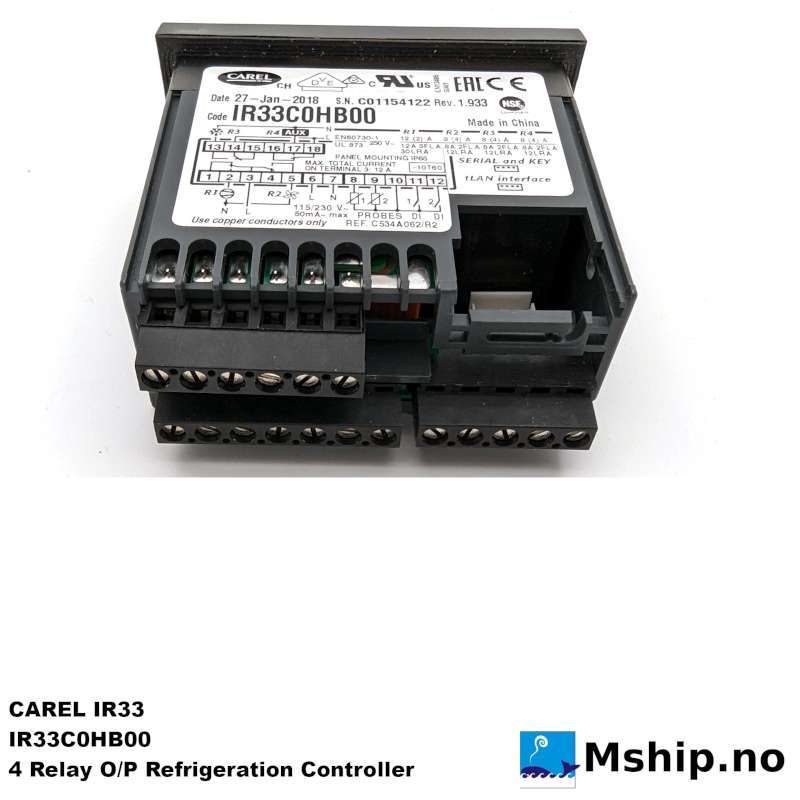

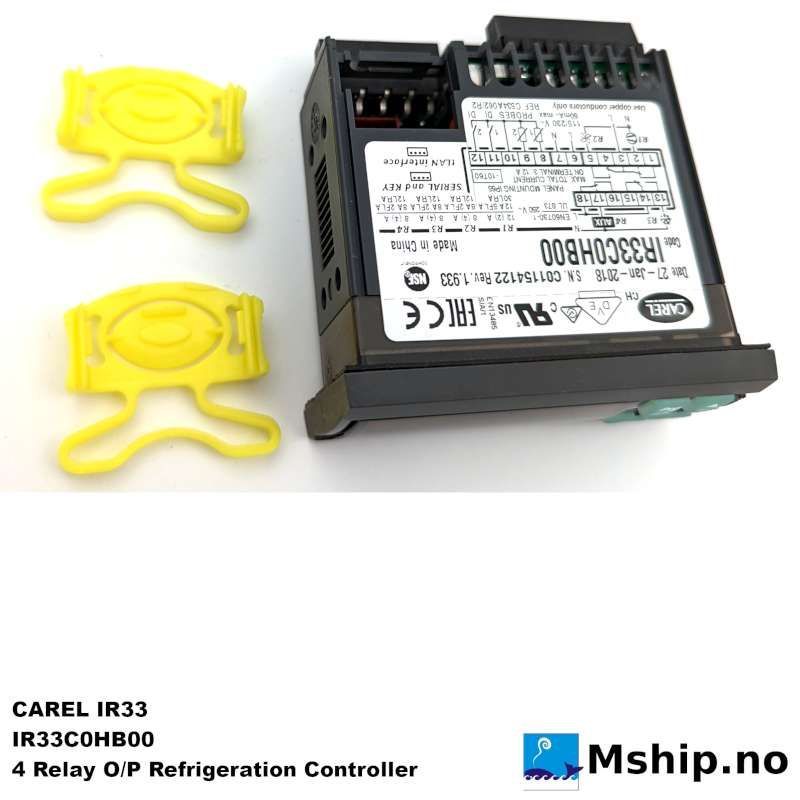

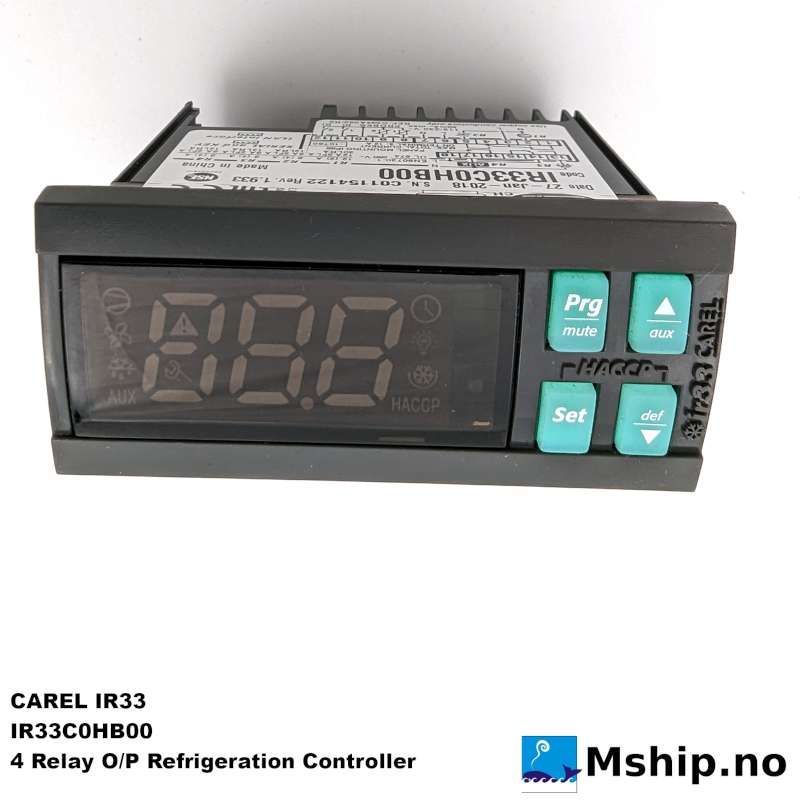

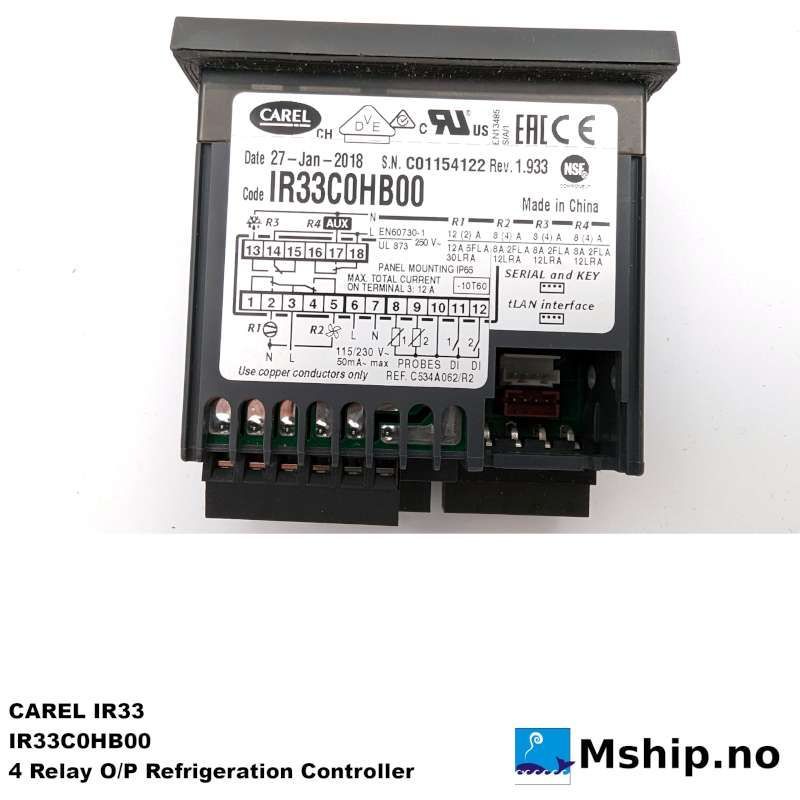

Carel IR33C0HB00 – IR33 panel mount refrigeration controller with 4 relay outputs, real-time clock and HACCP

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer CAREL
Model IR33
Manufacturers part number IR33C0HB00
Other 4 relay outputs (compressor, defrost, evaporator fan, auxiliary), 2 NTC inputs (10 kΩ at 25 °C), 2 digital inputs, real-time clock, HACCP, IR receiver, buzzer, RS-485, IP65 front, CE
Weight 220 g
Amps Compressor 16 A + defrost, fan, aux 3 × 8 A
Volt 115/230 VAC
HZ 50/60 Hz
DIMENSIONs Front 76.2 × 34.2 mm, panel cut-out 71 × 29 mm

More info

CAREL IR33 – IR33C0HB00
4 relay output digital refrigeration controller for ventilated refrigeration units: compressor, defrost and evaporator fan control with an additional auxiliary output.

  • Relay outputs: compressor 16 A, defrost, evaporator fan and auxiliary 8 A each (changeover contacts, resistive)
  • Power supply 115–230 VAC, 50/60 Hz, burden < 3 VA
  • 2 NTC probe inputs (10 kΩ at 25 °C) for ambient and defrost temperature, 2 voltage-free digital inputs
  • Range −50 to +90 °C, accuracy ±1 % of scale range
  • Real-time clock and HACCP function, infrared receiver and buzzer, RS-485 serial connection
  • Front IP65, panel cut-out 71 × 29 mm, front 76.2 × 34.2 mm, weight approx. 220 g
  • Operating conditions −10 to 50 °C, < 90 % RH non-condensing; CE marked

Download

carel-IR33C0HB00.pdf

Carel IR33 overview description

Download (898.89k)
