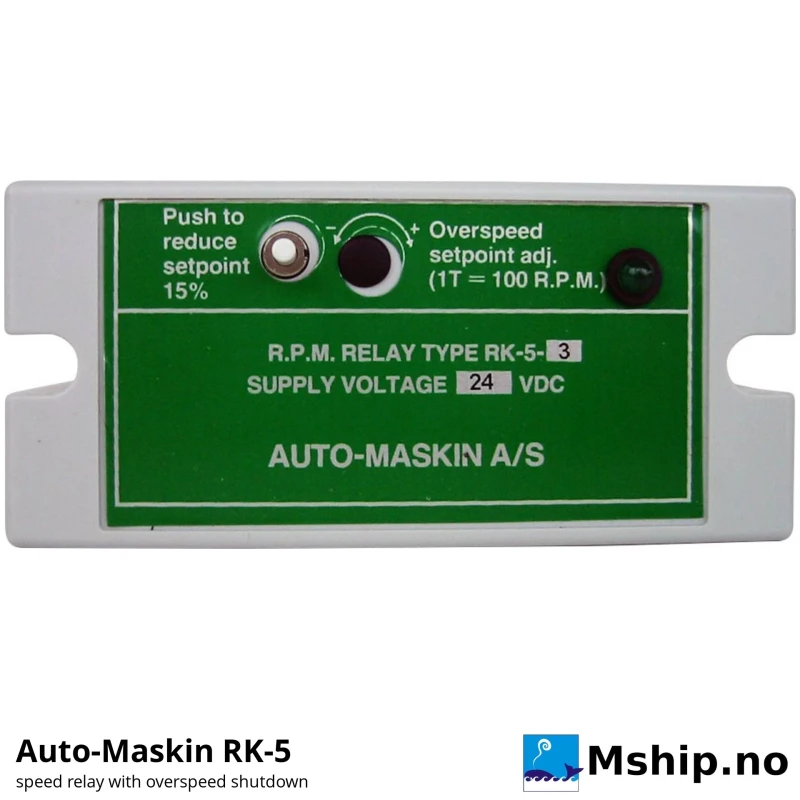

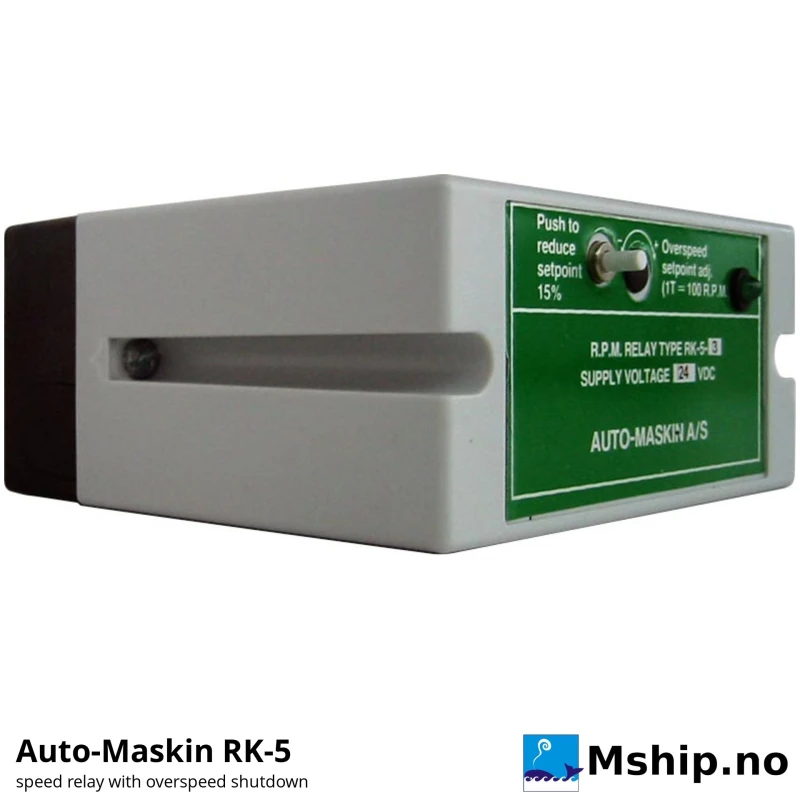

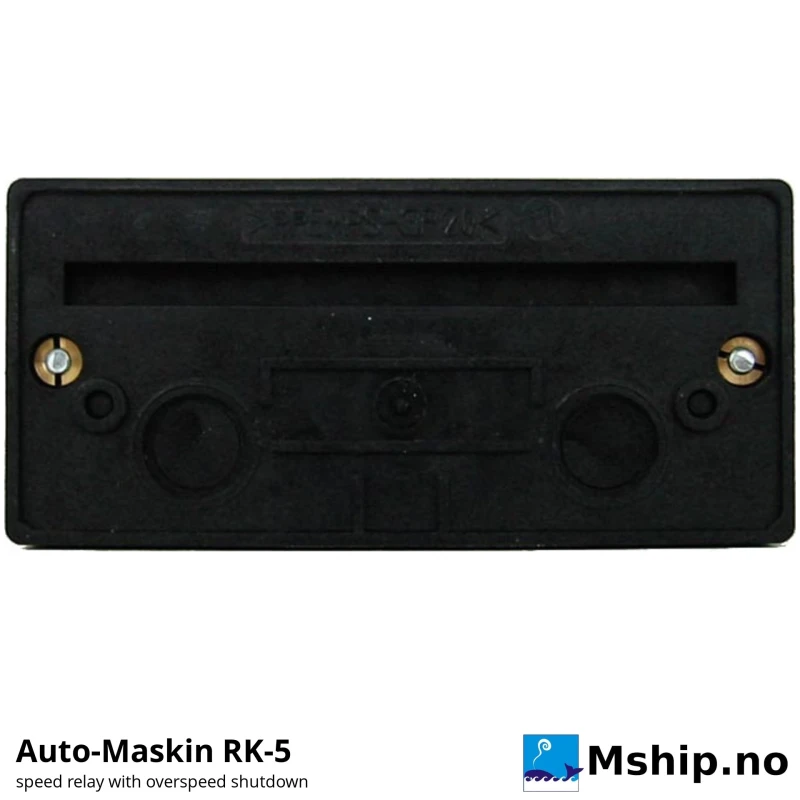

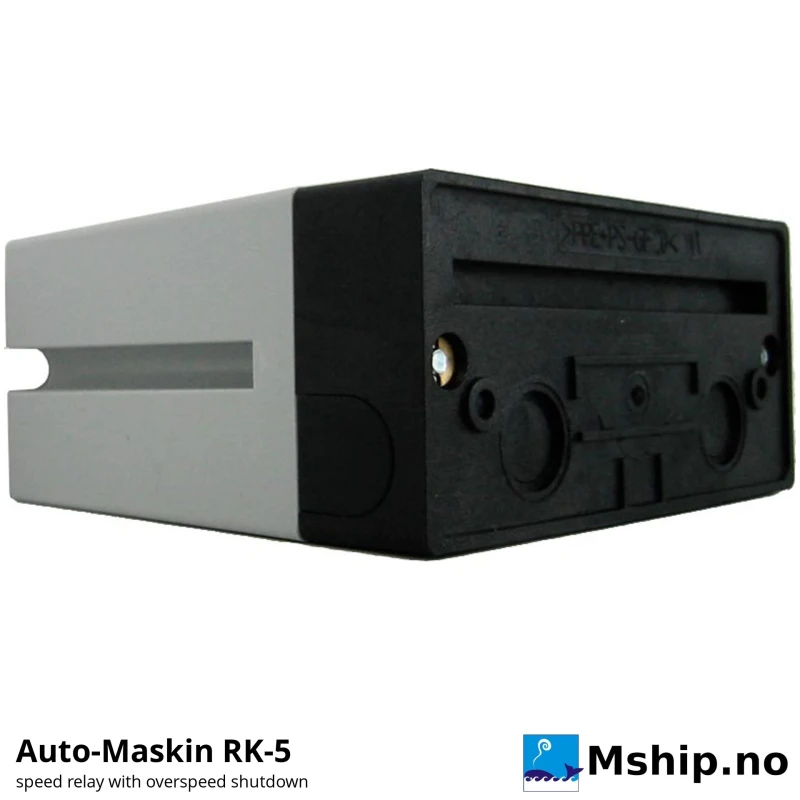

Auto-Maskin RK-5 Speed Relay (legacy)

AM1020008

New product

Auto-Maskin RK-5 Speed Relay – speed relay with overspeed shutdown.

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer Auto-Maskin
Model RK-5 (discontinued)
Manufacturers part number 1020008 (RK-5-1)
Alternative part number 1020009 (RK-5-2), 1020031 (RK-5-3)
Performance specification Speed relay with overspeed shutdown; RK-5-1 0-100 Hz (tachogenerator), RK-5-2 0-2000 Hz (pickup at timing gear), RK-5-3 0-8000 Hz (pickup at flywheel)
Remarks Relays: D1 and D2 changeover, D3 normally open – closes and self-holds at overspeed, reset with button

More info

The RK-5 is a speed relay for speed control and overspeed shutdown of diesel engines. It measures the frequency from a tachogenerator or magnetic pickup and comes in three versions: RK-5-1 for 0–100 Hz tachogenerators, RK-5-2 for 0–2000 Hz pickups at the timing gear and RK-5-3 for 0–8000 Hz pickups at the flywheel. Two changeover relays and one normally open relay that closes and self-holds at overspeed until it is reset.

The RK-5 is discontinued. In Auto-Maskin's current range, overspeed protection is handled by the Auto-Maskin SDU 404 Safety Shutdown Unit safety shutdown unit.

The original Auto-Maskin documentation is in the downloads below.

We can often supply used units and spare parts, or help with the change to the current model. Contact us with your request.

Accessories

Download

RK-5 Speed Relay Description

Auto-Maskin

Download (95.98k)
