Auto-Maskin Marine Watch S-ONE Alarm Panel

AM1500073

New product

Auto-Maskin Marine Watch S-ONE 12" vessel alarm panel, IACS type approved.

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer Auto-Maskin
Model Marine Watch S-ONE
Manufacturers part number 1500073
Performance specification Vessel alarm panel: 12.1" touchscreen 1280 x 800 with swipe navigation; alarm list, event log, trending, watch transfer, dead man alarm; IP56 front
Class IACS type approved: DNV (TAA000033G) – Marine Watch S Series
Volt 8-32 VDC (12 / 24 VDC systems)
Remarks Ethernet to Marine Watch I/O cabinets and panels; Marine Broadcast cloud monitoring, SMS / e-mail alerts
DIMENSIONs 333 x 202 x 51 mm (W x H x D); panel cut-out 321 x 190.5 mm

More info

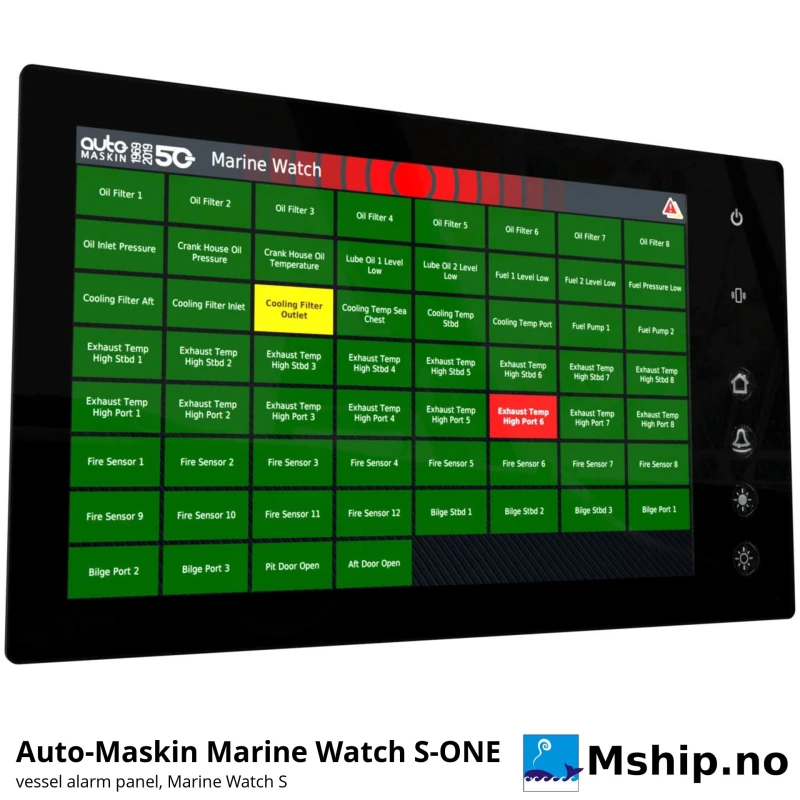

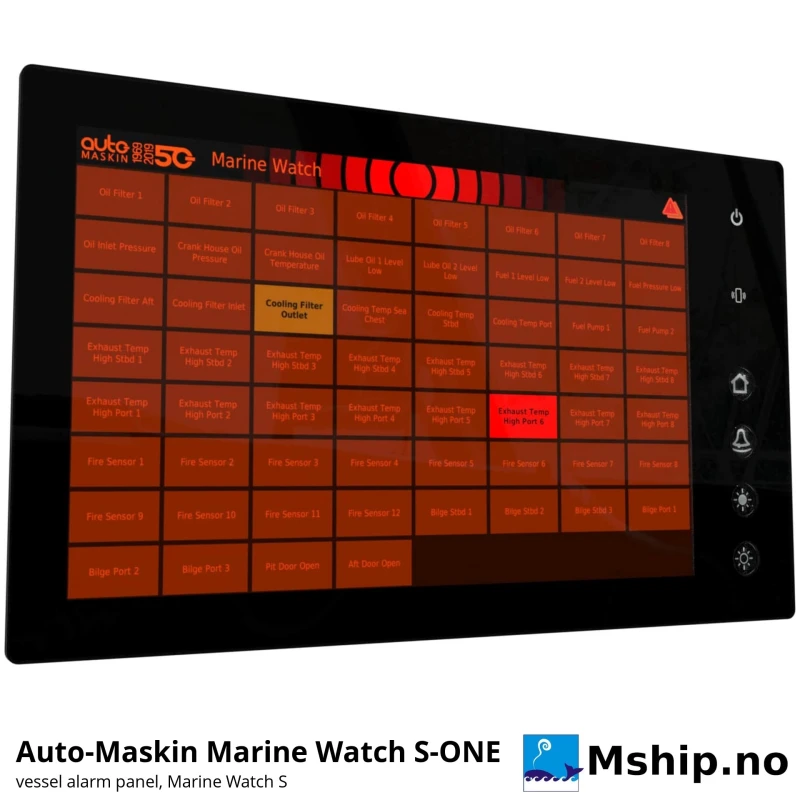

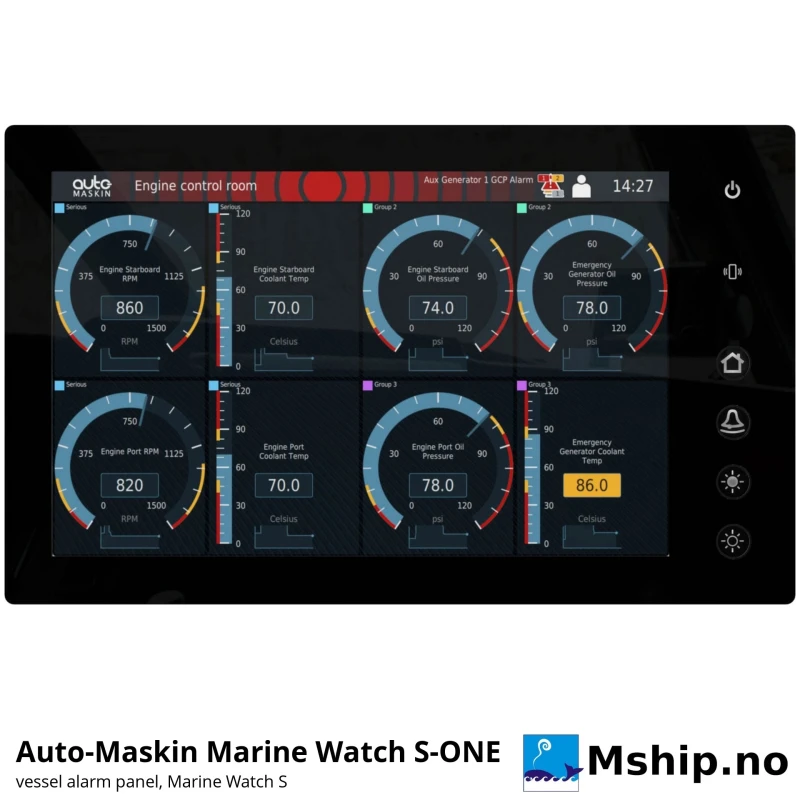

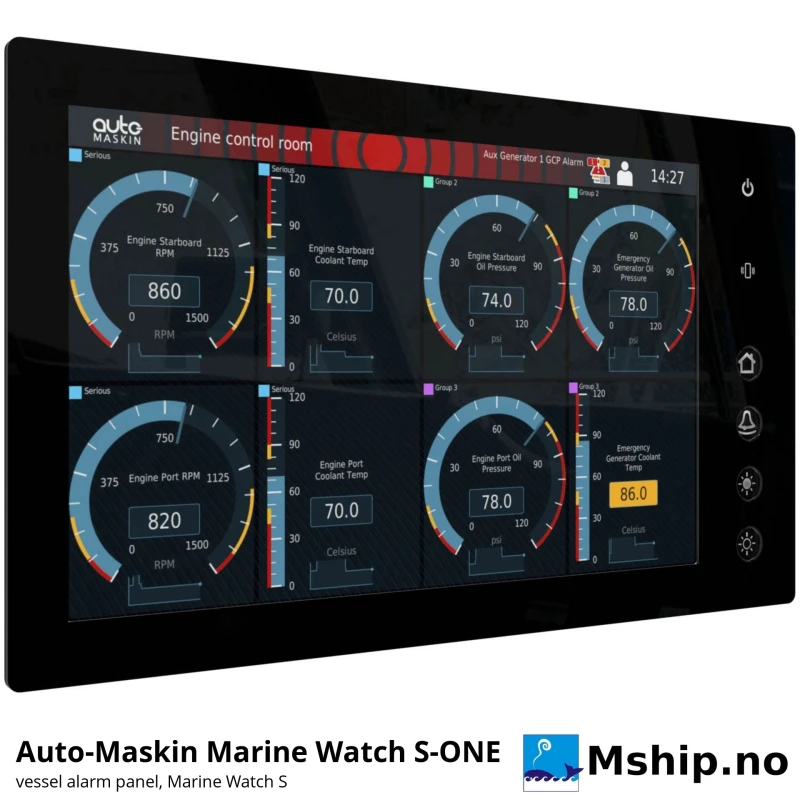

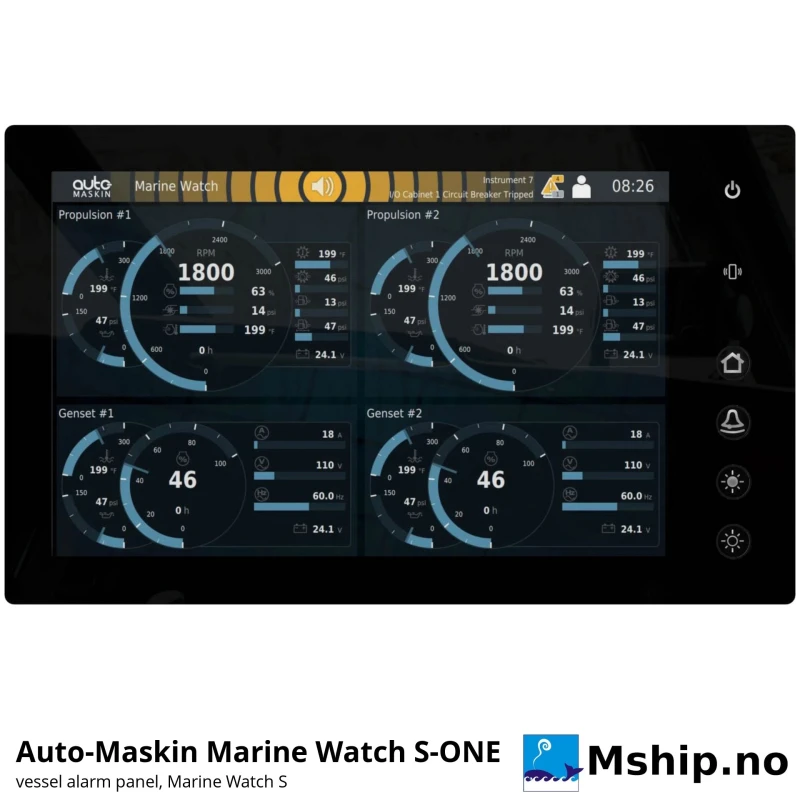

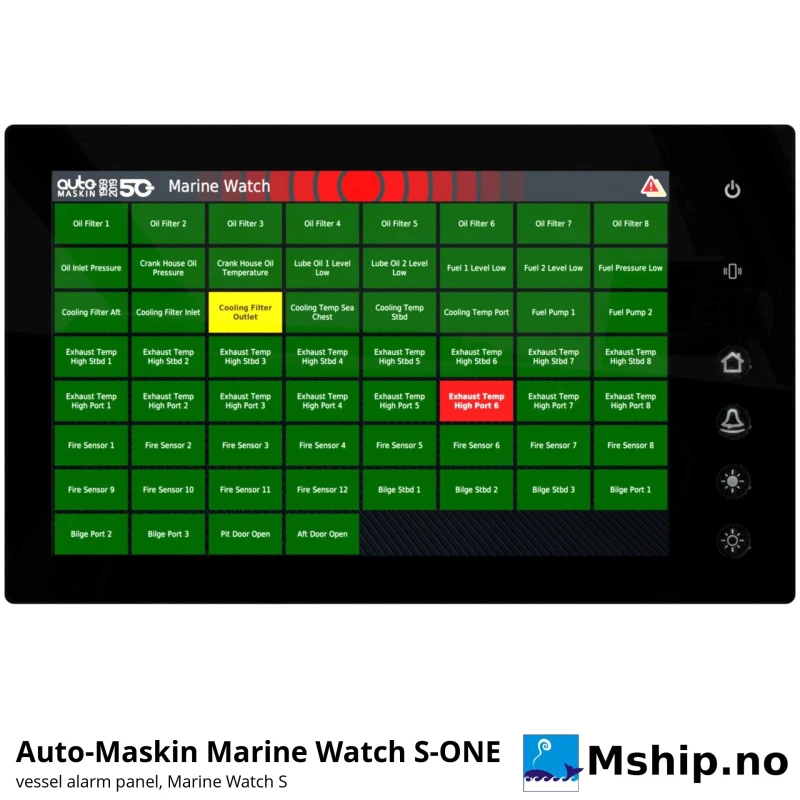

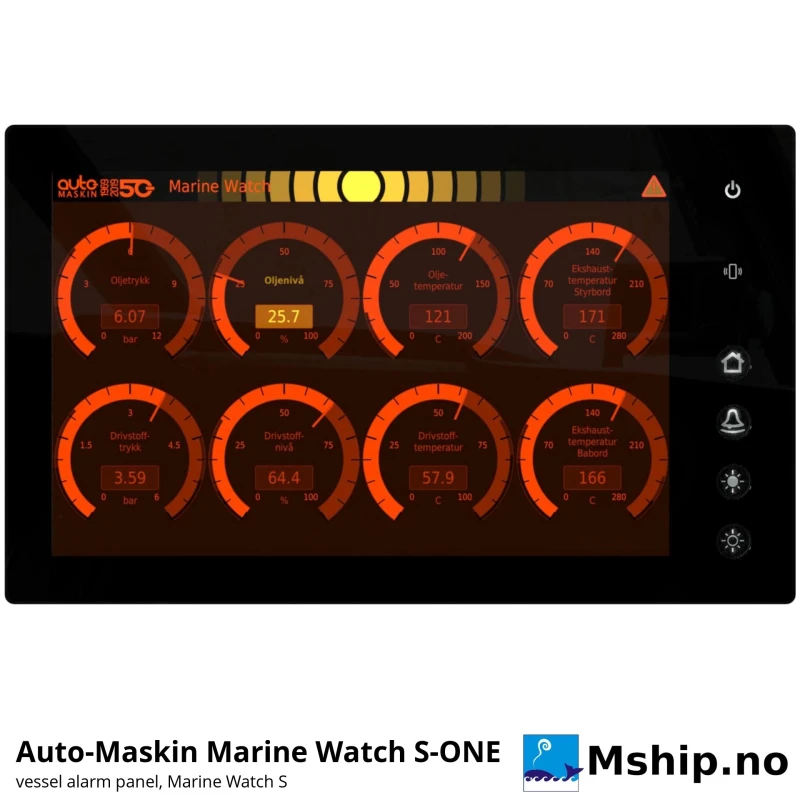

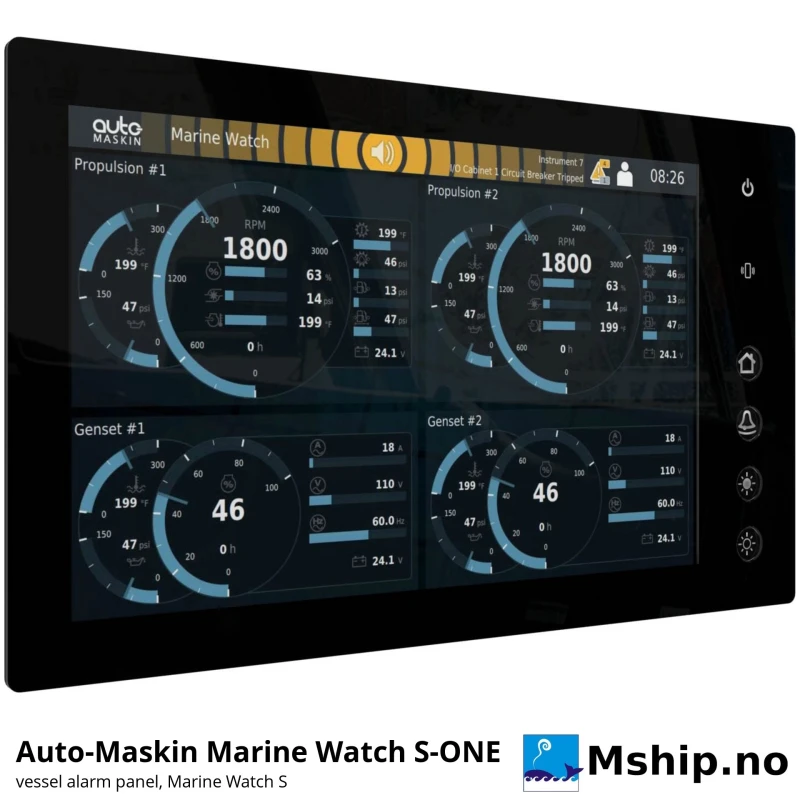

The S-ONE is the main operator panel of the Marine Watch S alarm system: a 12.1" touchscreen with swipe navigation and a home screen that shows vessel status at a glance.

  • Alarm list with time-stamped event log, simple alarm set-up and grouping
  • Optional analogue inputs with trending, configurable digital outputs and real-time engine data
  • Rudder angle indication, unattended engine room with watch transfer and engine room dead man alarm
  • Built-in Marine Broadcast cloud monitoring with SMS and e-mail alerts

Marine Watch S is Auto-Maskin's IACS type-approved vessel alarm system for small and medium-sized ships. Alarm panels and I/O cabinets communicate over standard Ethernet; the system scales to several hundred channels and brings alarms from many processes and cabinets into one clear alarm list.

I/O cabinets: S-C60 / S-C120; repeater: S-ACE annunciator panel. DNV type approved (certificate in the downloads).

Most units are delivered from stock or at short notice from the manufacturer.

Contact us for price and delivery time.

Accessories

Download

RP 480i / Marine Watch S-ONE Data Sheet

Auto-Maskin, rev. 4 Oct 2024

Download (147.51k)

S-ONE / RP 480i Installation Manual

Auto-Maskin, Jan 2026

Download (1.41M)

RP 480i / S-ONE Installation Drawing

Auto-Maskin, 16 Jun 2021

Download (117.45k)

Marine Watch S Series Product Sheet

Auto-Maskin, v3.5 (2025)

Download (731.19k)

Marine Watch S Series User's Manual

Auto-Maskin, 2.00 Patch 5 (Jul 2026)

Download (5.2M)

EU Declaration of Conformity Marine Watch

Auto-Maskin

Download (66.66k)

DNV Type Approval TAA000033G (Marine Watch S)

Marine Watch S Series, rev. 1

Download (229.08k)
