ABB SACE S2 Circuit Breaker G2 - 1600A — ABB SACE G2 air circuit breaker 1600 A with SACE S2 electronic trip unit, model SACE G2 View larger
Previous Next

ABB SACE S2 Circuit Breaker G2 - 1600A

ABB-SACE-1600

Used

ABB SACE S2 Circuit Breaker G2 - In = 1600A

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer ABB
Model SACE G2
Serial number MB011202

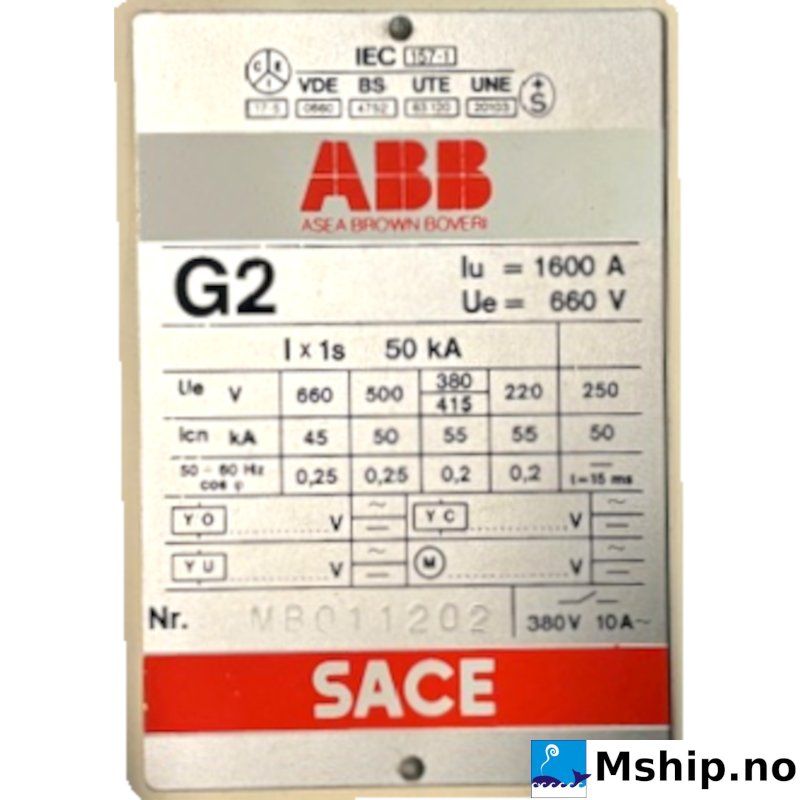

Other Icw 50 kA 1 s; Icn 45 kA @ 660 V, 50 kA @ 500 V, 55 kA @ 380/415 V, 55 kA @ 220 V, 50 kA @ 250 V DC (t = 15 ms); IEC 157-1, VDE 0660, BS 4752, UTE 63120, UNE 20103
Amps Iu 1600 A; trip unit SACE S2 set I1 0.6 x Ith 30 s, I2 10 x Ith 1 s, I3 10 x Ith; aux 380 V 10 A
Volt Ue 660 V AC
HZ 50-60 Hz

More info

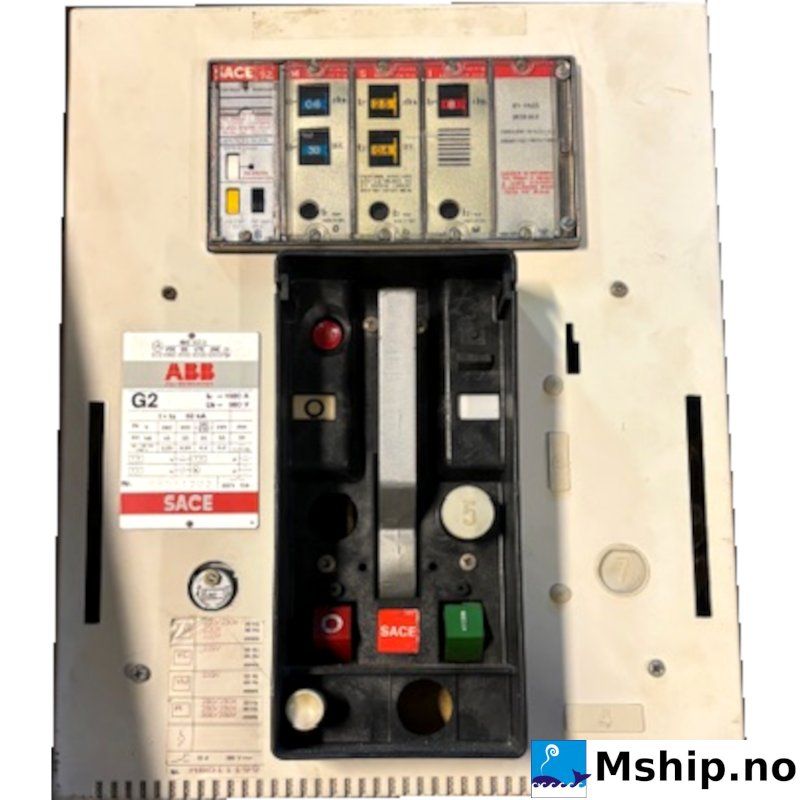

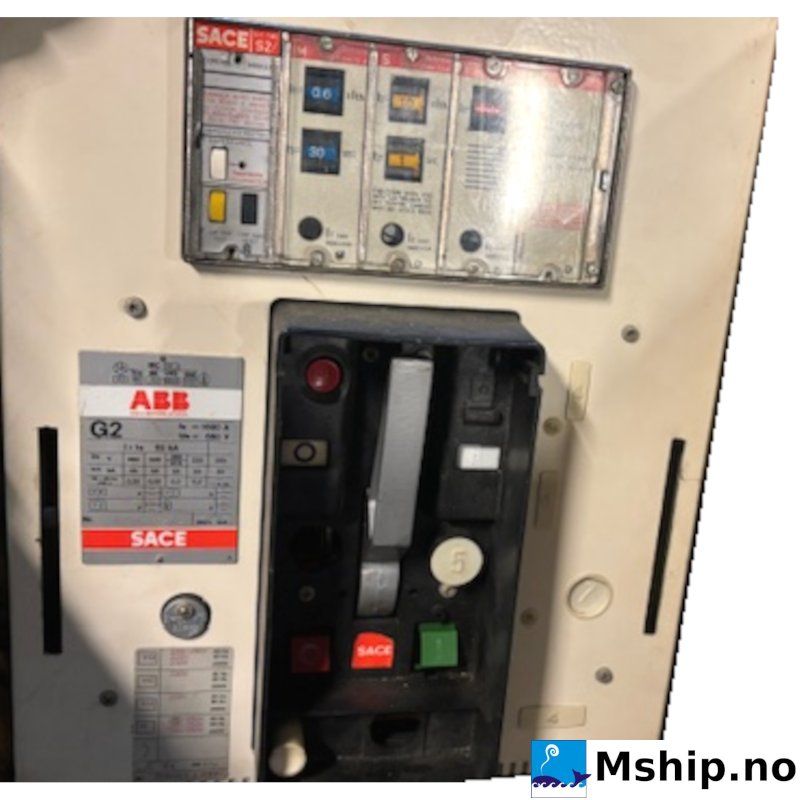

ABB SACE G2 air circuit breaker 1600 A with SACE S2 electronic trip unit

  • Rated current: Iu = 1600 A
  • Rated voltage: Ue 660 V AC, 50-60 Hz
  • Short-time withstand: 50 kA 1 s
  • Breaking capacity Icn: 45 kA @ 660 V, 50 kA @ 500 V, 55 kA @ 380/415 V, 55 kA @ 220 V, 50 kA @ 250 V DC (t = 15 ms)

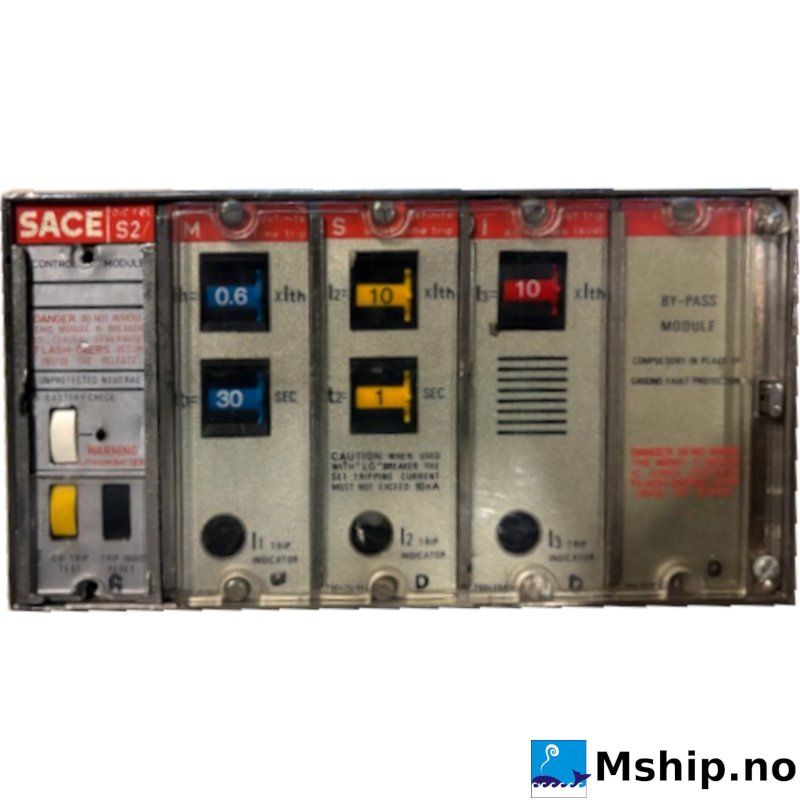

  • Trip unit SACE S2 with M, S and I modules and by-pass module; set I1 = 0.6 x Ith, t1 30 s, I2 = 10 x Ith, t2 1 s, I3 = 10 x Ith
  • Auxiliary contacts 380 V 10 A
  • IEC 157-1, VDE 0660, BS 4752, UTE 63120, UNE 20103
  • Serial number (Nr.): MB011202
