ABB TPS57EV2 Turbo charger — Manufacturer: ABB, Model: ABB TPS57EV2 – for Bergen KVG / KVGS G3/G4 gas engines, Serial number: HT505692, Performance specification: Used – from Bergen KVGS-12 G4 engine no. 20047 (upgraded to G4 by Rolls-Royce 2009), RPM: Operating limit n Bmax 625 1/s (37,500 rpm), overload limit n Mmax 658 1/s (39,480 rpm), Turbo model: ABB TPS57EV2, Other: Operating limit t Bmax 650 °C, overload limit t Mmax 700 °C. Intervals on rating plate: bearing inspection 10,000 h, compressor and turbine replacement 100,000 h. ABB Turbo Systems Ltd, Baden, made in Switzerland. Nameplate HZTL 439999 P1, Weight: 420 kg, Working temperature max, celsius degrees: 700 View larger

ABB TPS57EV2 Turbo charger

HT505692

Used

ABB TPS57EV2 Turbo charger

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer ABB
Model ABB TPS57EV2 – for Bergen KVG / KVGS G3/G4 gas engines
Serial number HT505692
Performance specification Used – from Bergen KVGS-12 G4 engine no. 20047 (upgraded to G4 by Rolls-Royce 2009)
RPM Operating limit n Bmax 625 1/s (37,500 rpm), overload limit n Mmax 658 1/s (39,480 rpm)
Turbo model ABB TPS57EV2
Other Operating limit t Bmax 650 °C, overload limit t Mmax 700 °C. Intervals on rating plate: bearing inspection 10,000 h, compressor and turbine replacement 100,000 h. ABB Turbo Systems Ltd, Baden, made in Switzerland. Nameplate HZTL 439999 P1
Weight 420 kg
Working temperature max, celsius degrees 700

More info

ABB TPS57EV2 turbocharger – HT505692

Used ABB TPS57EV2 turbocharger from ABB Turbo Systems Ltd, Baden, made in Switzerland. In stock.

From a Bergen KVGS-12 G4 lean burn biogas engine, engine no. 20047, built 1995, totally overhauled and upgraded to G4 by Rolls-Royce in 2009 and maintained by Rolls-Royce under service contract since new. The engine had two of these turbochargers, one per cylinder bank. Other parts from the same engine: Bergen KVG gas engine spares.

  • Type: TPS57EV2
  • HT number: 505692
  • Speed limit in operation n Bmax: 625 1/s (37,500 rpm)
  • Speed limit at engine overload (110 %) n Mmax: 658 1/s (39,480 rpm)
  • Temperature limit in operation t Bmax: 650 °C
  • Temperature limit at engine overload (110 %) t Mmax: 700 °C
  • Recommended intervals on the rating plate: inspection of plain bearings every 10,000 h, replacement of compressor and turbine every 100,000 h
  • Weight: 420 kg

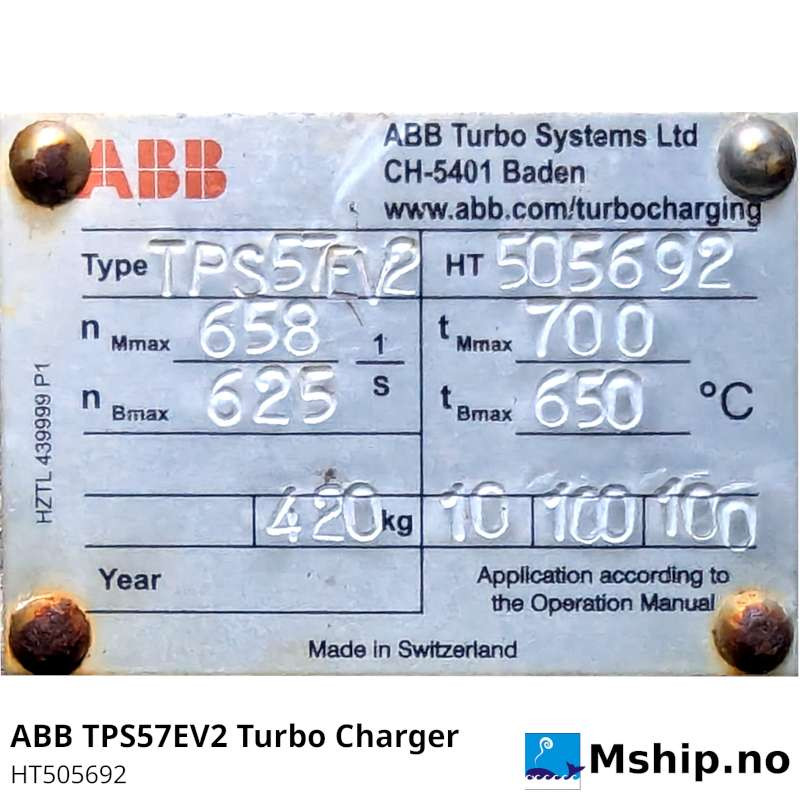

  • Nameplate: HZTL 439999 P1, application according to the operation manual
