View larger

Deutz MWM TBD604 BV 8 V8

Reference: 54306-604-2

Condition: Used

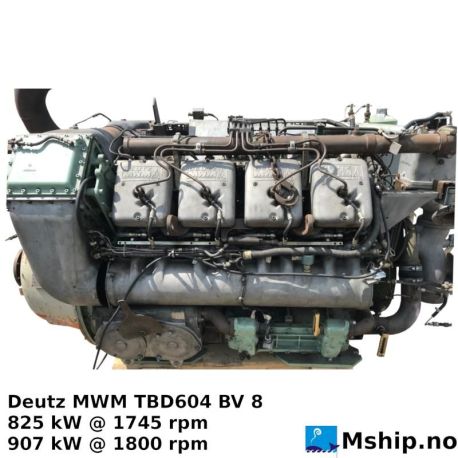

Deutz MWM TBD604 BV 8

Manufacturer	Deutz MWM
Model	TBD604 BV 8
Serial number	604.08.010026 - New serial number in 2007: 604.08010264 (new factory engine)
Year	1990 / 2007 (new factory engine in 2007)
HP	1122 @ 1745 rpm / 1244 @ 1800 rpm
kW	825 @ 1745 rpm / 907 @ 1800 rpm
RPM	1745 / 1800
Running Hours	4240
Cylinder bore	160 mm
Piston Stroke	185 mm
Number of cylinders	8
Cylinder configuration	V-engine
Fuel Type	Diesel
Class	Germanischer Lloyd
Other	Original engine replaced by new factory engine with new serial number in 2007

Deutz MWM TBD604 BV 8

New factory engine with new serial number August 2007. G | L Germanischer Lloyds stamped.

Turbo / manifoild is sold and not included - see photo.

Dimmentions: L= 1913 mm W=1389 mm H = 1989 mm. Weight = 2.75 Ton.
