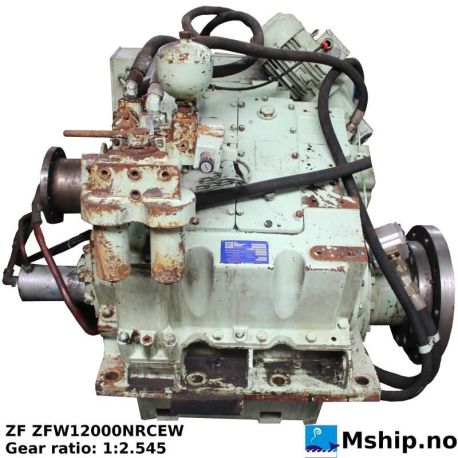

ZF W12000 NR CEW
Vertical offset, remote mount marine
Maximum rated input: 1700 KW
|Manufacturer||ZF Marine - Masson|
|Model||W12000 NR CEW|
|kW||1,369 kW /rpm - Max 1250 rpm input Continuous Duty - 1711 kW|
|RPM||Max input rpm 1250|
|Rotation direction||CEW - Counter Engine Wise|
|Other||Weight 2500 kg.|
|Gear type||Non Reversing Gearbox CPP - to be used with controllable pitch propeller|
ZF W12000 NR CEW - Also manufactured as Masson W12000
• Robust design also withstands continuous duty in workboat applications.
• Fully works tested, reliable and simple to install.
• Design, manufacture and quality control standards comply with ISO 9001.
• Reverse reduction marine transmission with hydraulically actuated multi-disc clutches.
• Easy onboard maintenance.
• Case hardened and precisely ground gear teeth for long life and smooth running.
• Output shaft thrust bearing designed to take maximum propeller thrust astern and ahead.
• Smooth and reliable hydraulic shifting with control lever for attachment of push-pull cable or
other operating system.
• Suitable for twin engine installations (same ratio and torque capacity in ahead or astern
• Emergency “get home” capability.
• Robust cast iron casing.
• Free standing.
• Oil cooler complete with fittings and flexible hoses.
• Integrated brackets.
