MAN Doosan 9L21/31 1881 ekW HFO generating set

9L21_31HFO

New product

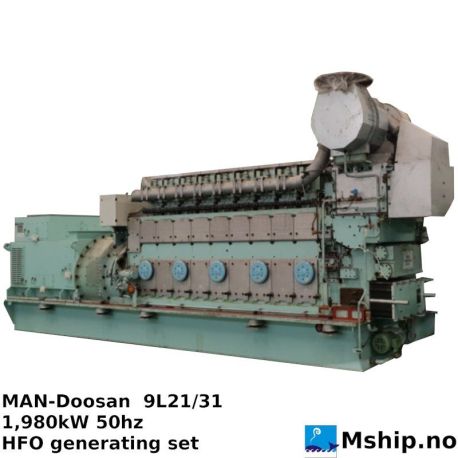

MAN-Doosan  9L21/31  1881 ekW HFO generating set

More details

    • Data sheet

    ManufacturerMAN-Doosan
    Model 9L21/31 1.980 kW HFO generating set
    Year2013 - 2016
    HP2692
    kW1980 kW - 1881 ekW
    RPM1000
    Running Hours0 - Unused - new surplus
    Cylinder bore210 mm
    Piston Stroke310 mm
    Number of cylinders9
    Cylinder configurationIn line
    Rotation directionCW - Clockwise seen from aft
    Fuel TypeHFO, Fuel acceptance MDO, MGO and HFO up to 700 cSt/50°C
    Turbo modelMAN TCR series exhaust turbocharging system Jet Assist for improved load response and start up time
    OtherExhaust gas emission: As standard, IMO Tier II, IMO Tier III (with optional MANSCR)
    Generator end typeHyosung corporation Type SS1881
    Amps205,7
    Volt6600
    HZ50
    kVA2351,3
    RemarksEngine automation and control: MAN in-house developed engine attached Safety and Control-system

    More info

        New Unused  MAN 9L21/31 1,980kW 50hz HFO Diesel Generator Sets.

       Engines are manufactured by MAN Germany

        For sale: MAN 9L21/31 1,980kW 50hz HFO generating sets. ( 14 set's sold - 0 remaining for sale)

    A ‘pipeless’ design philosophy with clean lines characterizes the latest generation of MAN generating sets. A prize-winning concept that has secured MAN Energy Solutions several awards, this philosophy is ultimately based on a proven, solid GenSet heritage. The MAN brand, has over the generations, maintained and developed its position as the leading, HFO-burning, marine GenSet design.

    Economic advantages
    MAN 21/31 units are characterized by reliable and HFO-based GenSet power, delivered at the lowest possible accumulated costs during the entire lifecycle. As such, the GenSet represents a safe investment.

    https://marine.man-es.com/images/librariesprovider6/marine-engines-systems/gen-sets/21_31_illustration.png?sfvrsn=840f5ca2_2

    Basic design
    The engine is designed for lifelong operational reliability. The sturdy engine block, stiff crankshaft and robust connecting rods are just some standard design characteristics that ensure trouble-free operation and long and safe overhaul intervals.
    The 21/31 GenSet is designed as a single unit, on a tailored and integrated base frame, complete with alternator and engine and with built-on auxiliary systems.
    Its hydraulically-tightened tie rods are specifically positioned to maintain a static preloading of the engine block to absorb the dynamic loads generated by the impact from the combustion process and moving masses. The complete GenSet is resiliently seated, vibration-analysed and balanced, and enclosed with specially designed covers to transmit minimal structure-borne and air-borne noise to the ship and engine room.
    Like all MAN GenSets, the L21/31 is designed for reliability, availability and minimal downtime – it will be ready and running when you need it.

        * Diesel Engine
         - Maker :DOOSAN - MAN
         - Model : 9L21/31
         - Year : 2013
         - Output : 1,980kWm
         - Stroke: 310mm
         - Number of Cylinders: 9
         - Fuel : Heavy Fuel Oil

         - Conditions : Brand New and never used before, surplus form canceled project.

        * Alternator
        - Maker : HYOSUNG
        - Year : 2013
        - Output : 2,351kVa
        - Frequency : 50hz
        - Voltage : 6,600V
        - Rated speed : 1,000rpm 1,980kW 50hz HFO Diesel Generator Sets.
