Sulzer MB100-280/5

Sulzer-pumpen-MB100-280_5

New product

Sulzer MB100-280/5
High Pressure Stage Casing Pump

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer Sulzer
Model MB100-280/5
Year 2001 (new unused)
m³ /h, cubic meter per hour capacity 208.3 m³/h
Pump Pressure BAR Approx. 56 bar (calculated from head 556 m at 1031 kg/m³)
Other Head 556 m, NPSH 5.0 m, liquid 30 °C / 1031 kg/m³; pump bearings 1 x NU 310 ECJ + 2 x 7310 BECBJ; motor bearings 6319M/C4, insulated N-end; Sulzer Pumpen (Deutschland) GmbH
Electric motor type ABB M2BA 400LKB 2 B3, IEC 400L/K 80, prod. code 3GBA401520-ADA701, 560 kW, 2983 rpm @ 50 Hz, S1, IP55, ins. class F, 2900 kg
kW Pump 408 kW @ 3435 rpm; motor 560 kW
Volt Motor: 690 V Y / 400 V D (also 660 V Y, 415 V D, 380 V D)
Amps Motor: 525 A @ 690 V Y, 910 A @ 400 V D, 555 A @ 660 V Y, 965 A @ 380 V D, 885 A @ 415 V D
HZ 50 Hz (motor plate), also for 60 Hz operation

More info

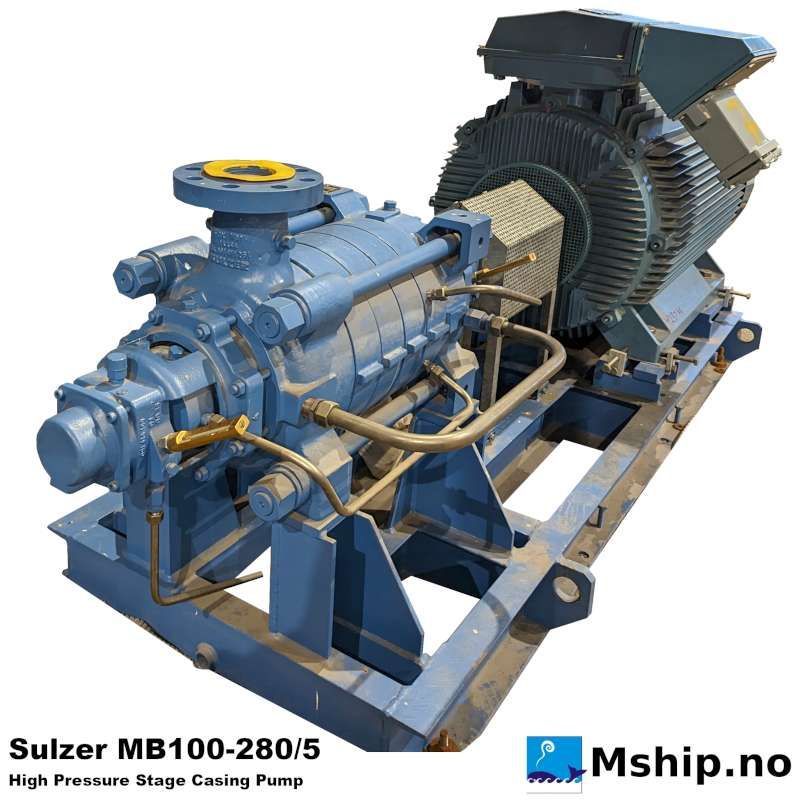

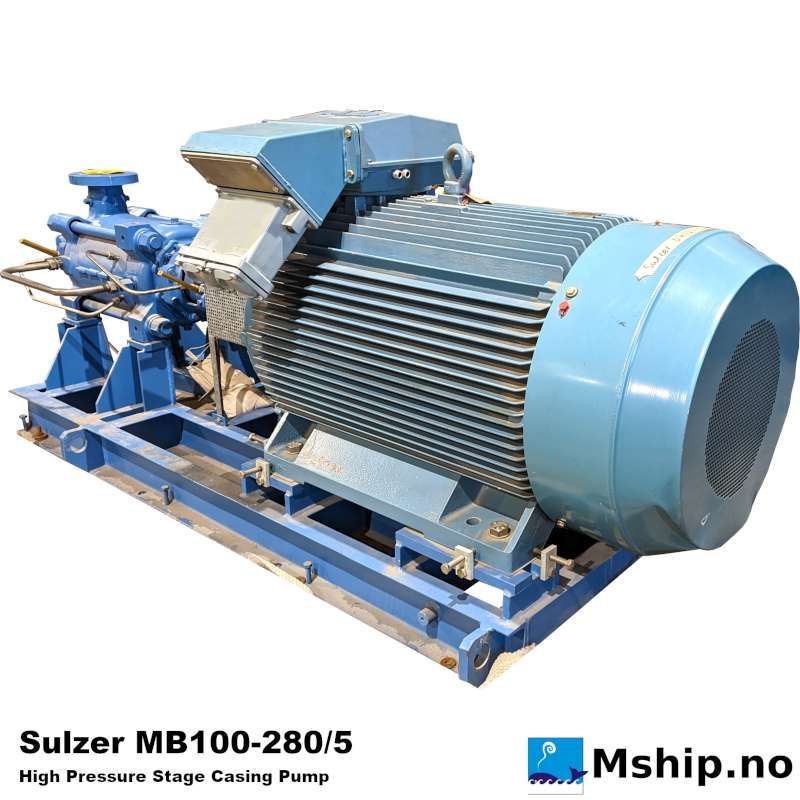

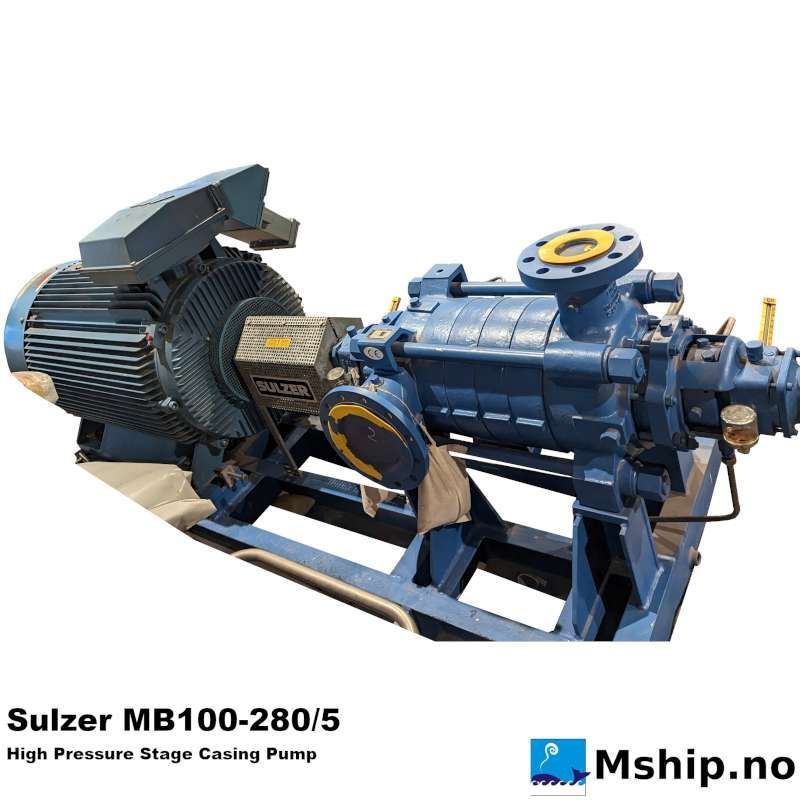

Sulzer MB100-280/5 high pressure stage casing pump with ABB 560 kW motor

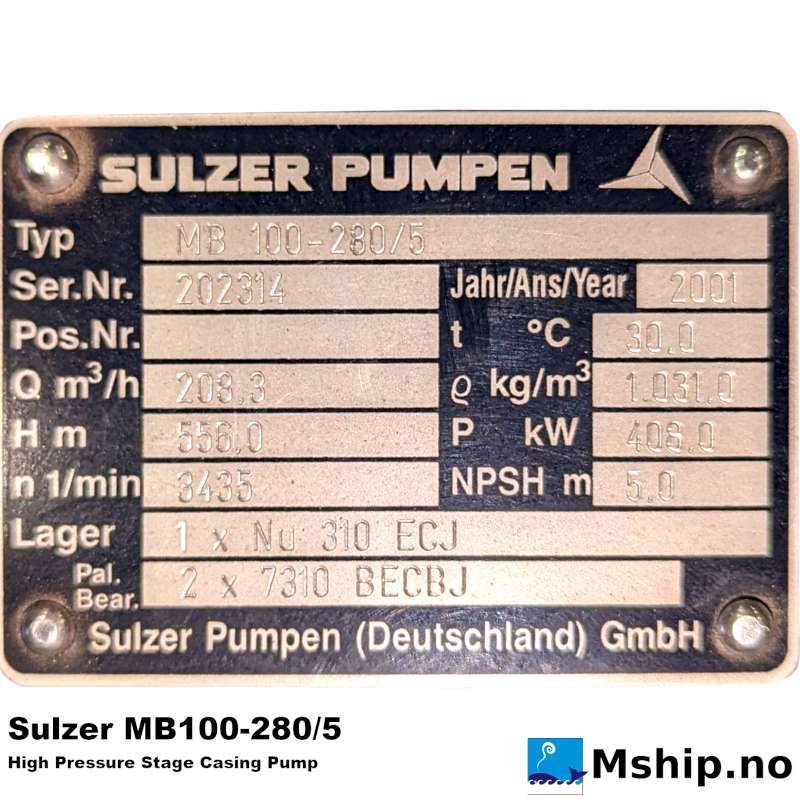

  • Pump: Sulzer MB 100-280/5, year 2001, new and unused
  • Capacity Q 208.3 m³/h, head H 556 m, NPSH 5.0 m
  • Liquid 30 °C, density 1031 kg/m³; pump power 408 kW @ 3435 rpm
  • Pump bearings: 1 x NU 310 ECJ, 2 x 7310 BECBJ

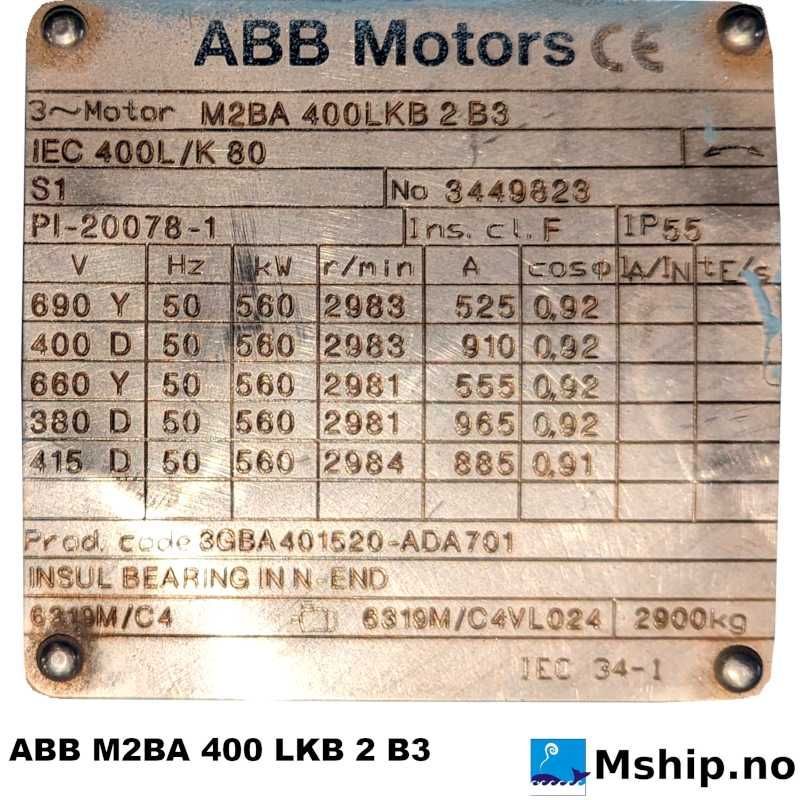

  • Motor: ABB M2BA 400LKB 2 B3, IEC 400L/K 80, prod. code 3GBA401520-ADA701, 560 kW, S1, IP55, insulation class F, 2900 kg
  • Motor ratings 50 Hz: 690 V Y 525 A, 400 V D 910 A, 660 V Y 555 A, 380 V D 965 A, 415 V D 885 A; 2981-2984 rpm, cos φ 0.91-0.92
  • Motor bearings 6319M/C4 and 6319M/C4VL024 (insulated bearing N-end)
  • Motor plate is for 50 Hz; the motor can also run on 60 Hz, where the speed rises about 20 % (pump plate: 3435 rpm)
  • Two identical pumps available.
