MTU 20V4000M93

20v4000pckg

New product

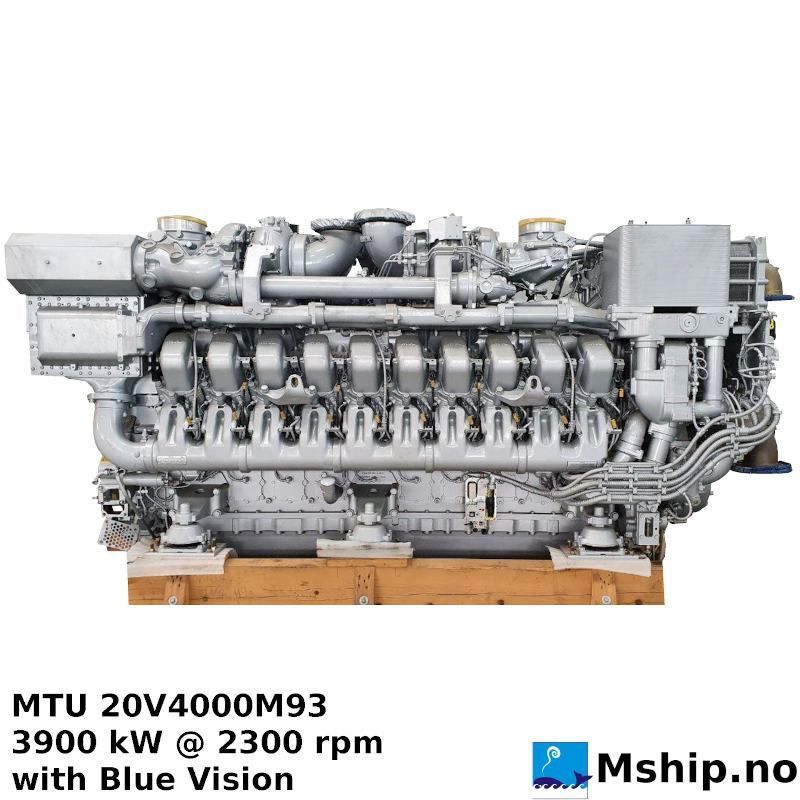

2 x MTU 20V4000M93 3900 kW @ 2300 rpm with Blue Vision

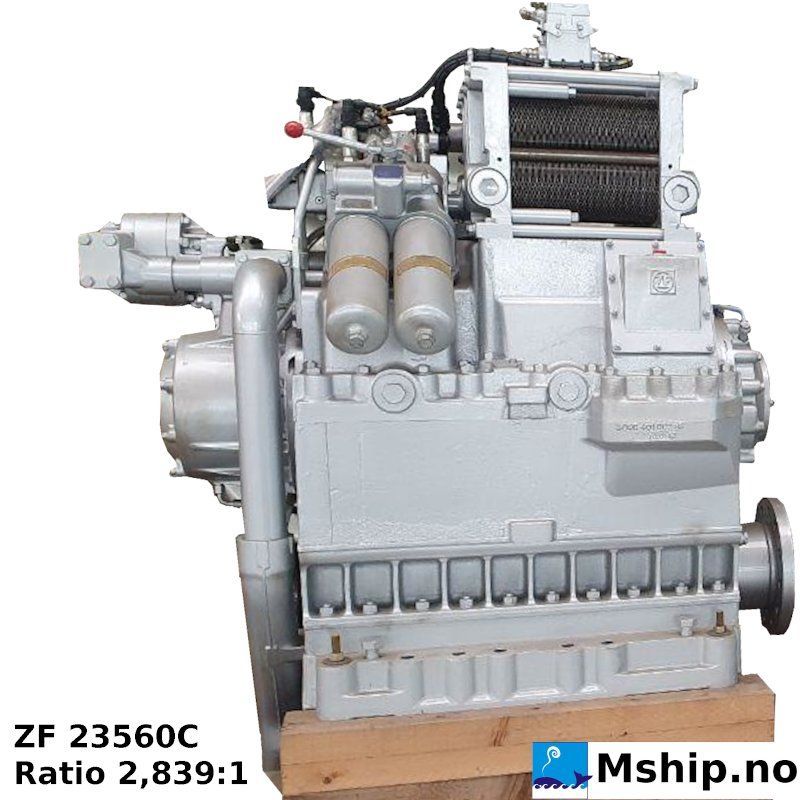

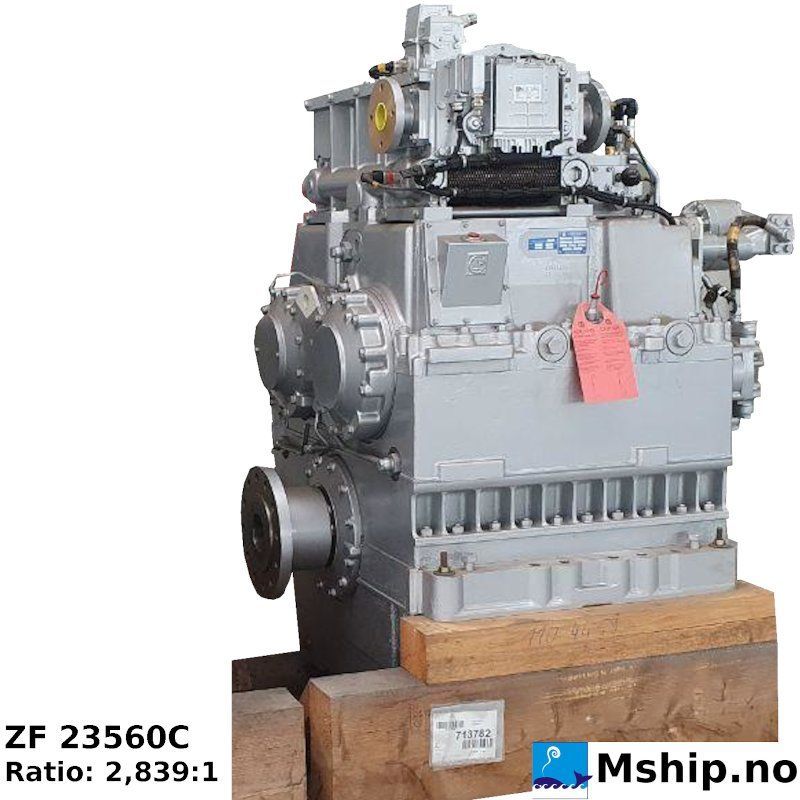

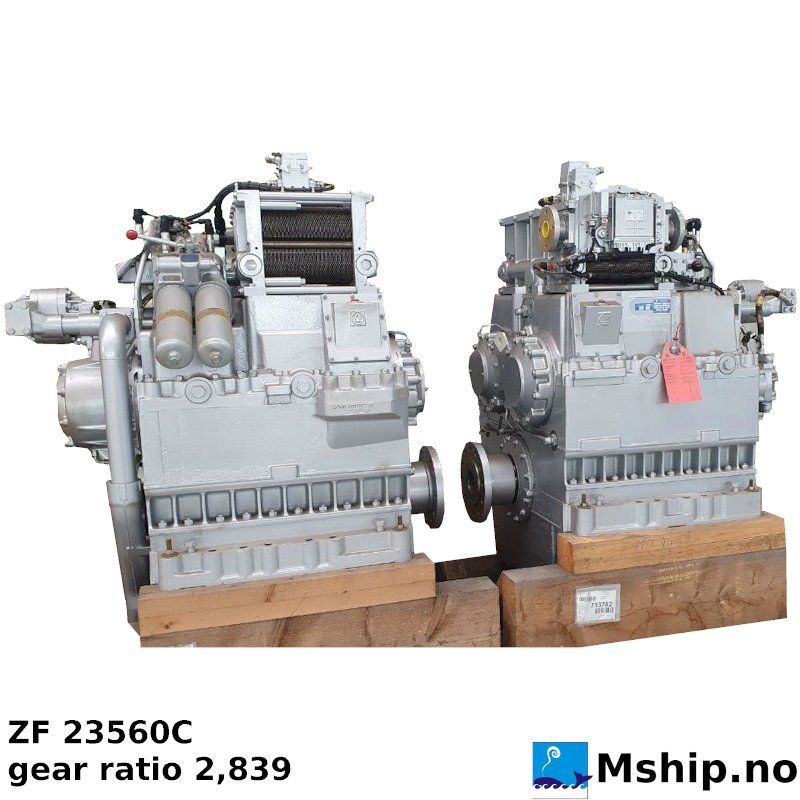

2 x freestanding gearbox ZF 23560C gear ratio 2,839

More details

    • Data sheet

    Manufacturer MTU
    Model 20V4000M93

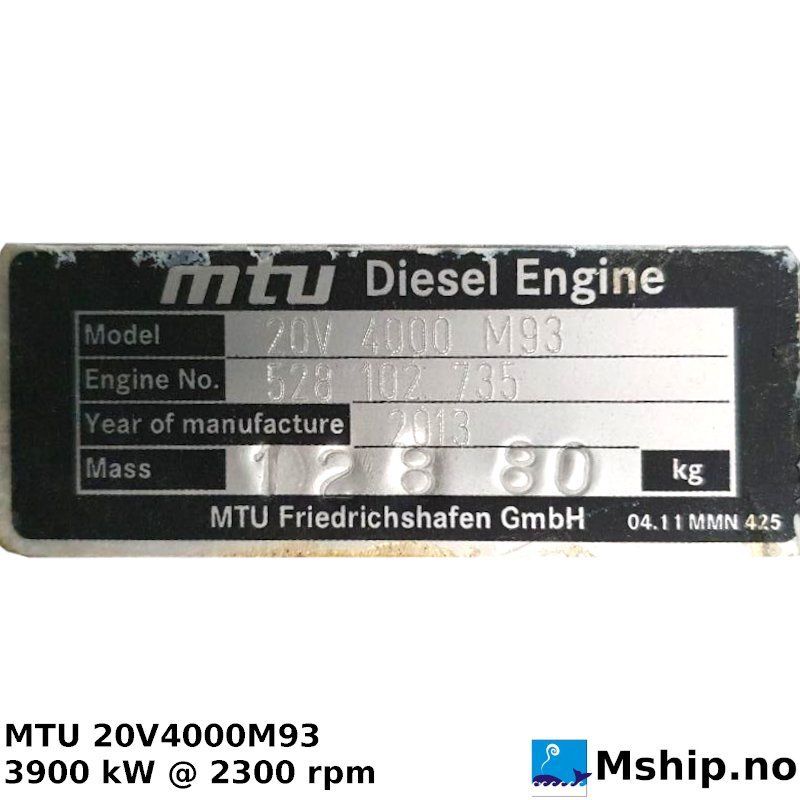

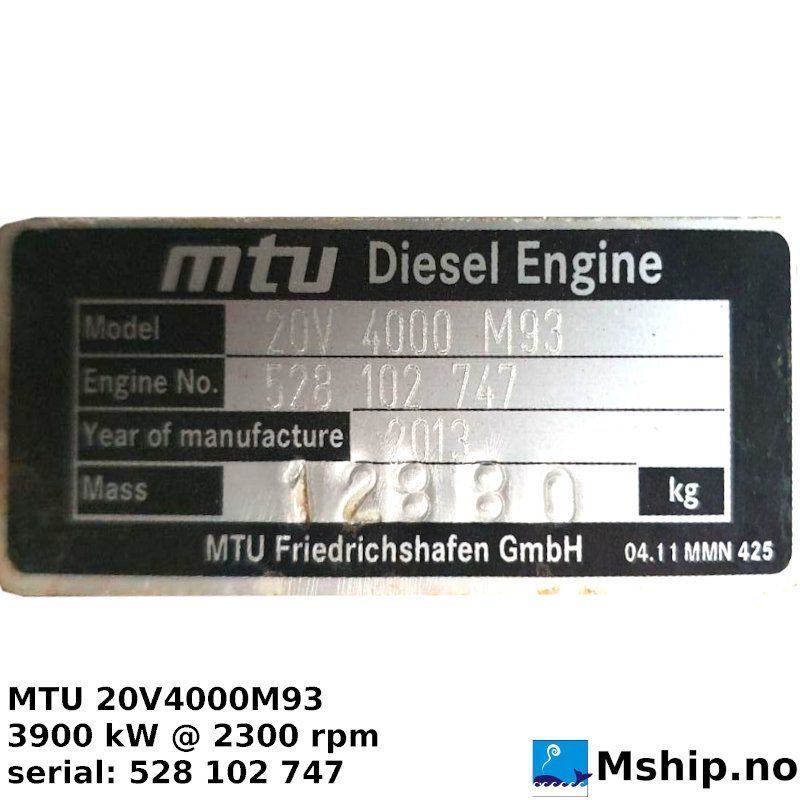

    Serial number 528 102 735 and 528 102 747
    Performance specification M93
    Year 2013 (never installed)
    HP 5228
    kW 3900
    RPM 2100
    Cylinder bore 120 mm
    Piston Stroke 190 mm
    Number of cylinders 20
    Displacement displacement, liter (cu in) 86.2 (5260)
    Cylinder configuration V-engine
    Rotation direction CCW - Counter clockwise seen from aft
    Fuel Type Diesel
    Other WARRANTY: 1 year from the seller (require MTU commissioning assistance)
    Weight 12280 kg - dry weight - engine only

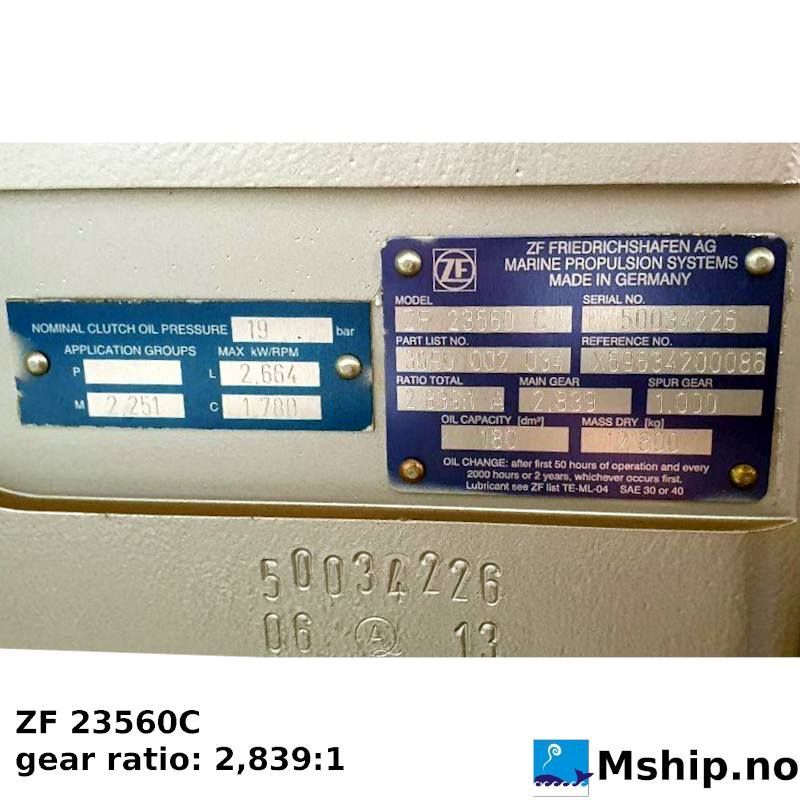

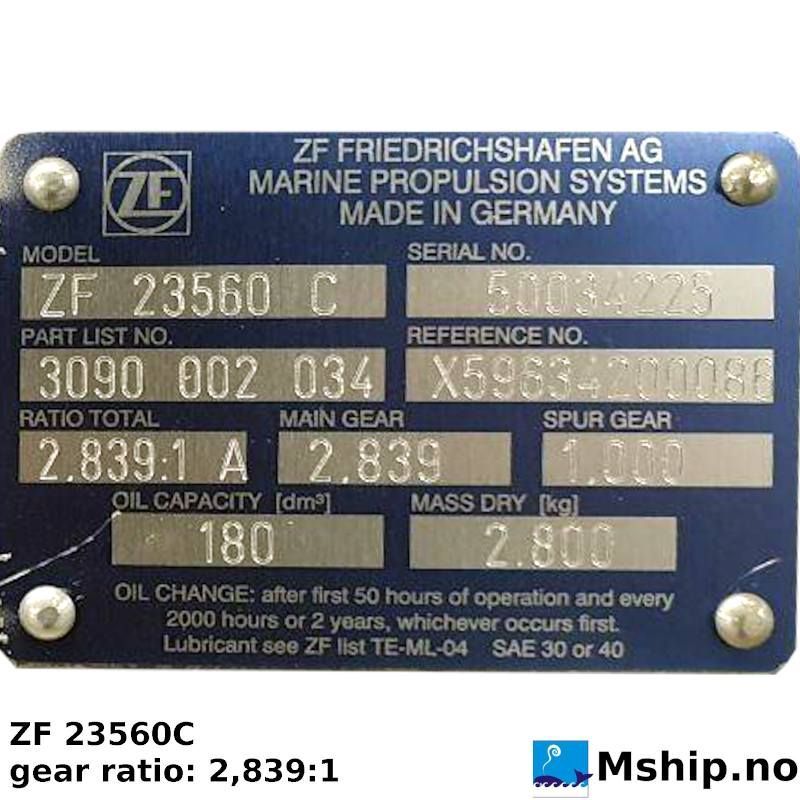

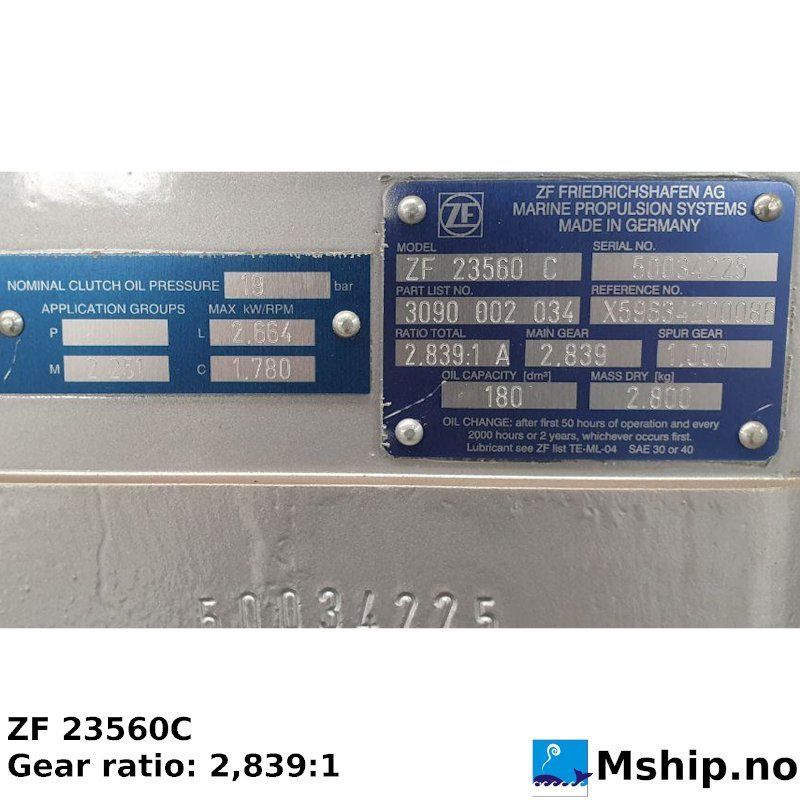

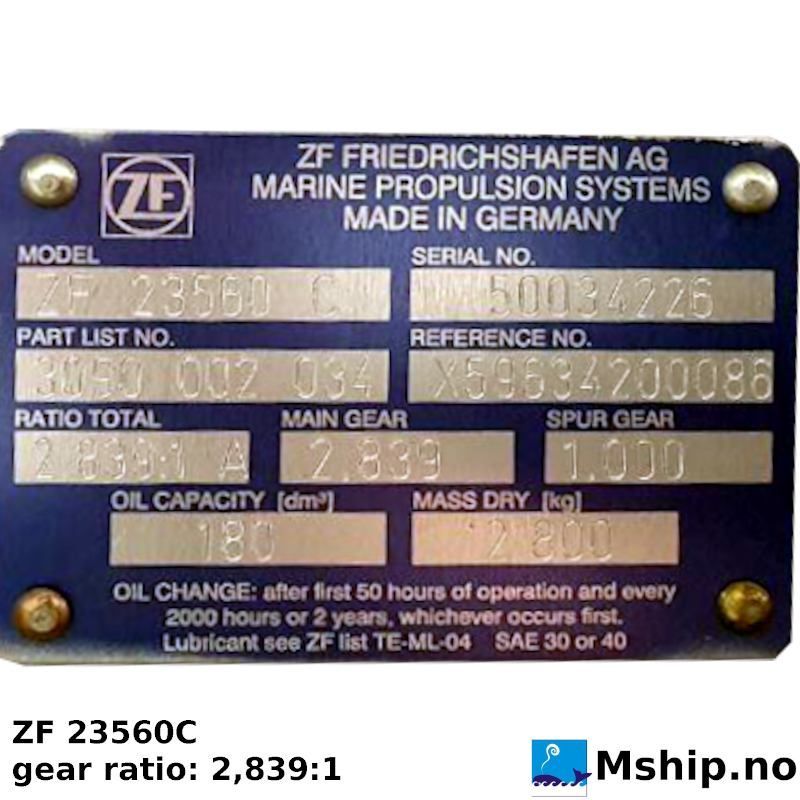

    Gear type ZF 23560C
    Gear ratio 2,839:1
    Remarks Optimization of exhaust emissions 1) IMO II/EPA 2
    DIMENSIONs (LxWxH) mm) 4015x1470x2440

    More info

    MTU PROPULSION PACKAGE 20V4000M93

    CONDITION: NEW with warranty - Surplus form canceled project

    • 2 x MTU 20V4000M93 3900 kW @ 2300 rpm with Blue Vision (2 control station + LOP)

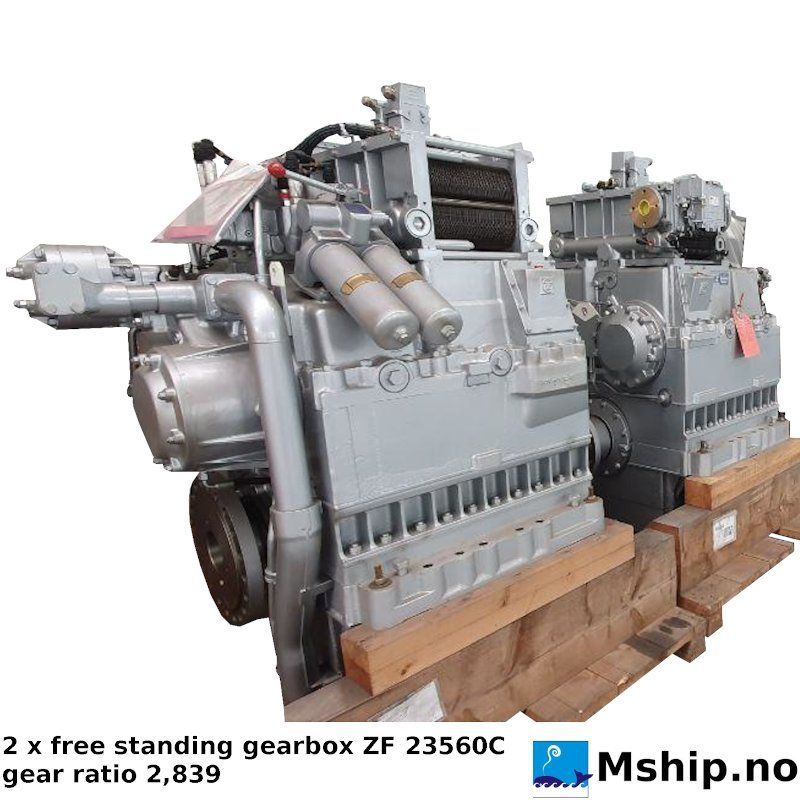

    • 2 x freestanding gearbox ZF 23560C gear ratio 2,839 available - OPTION

    • Engines 20V4000M93 can be upgraded to 20V4000M93L 4300 kW @ 2100 rpm via official MTU software upgrade.


    CONDITION: NEW

    PRODUCTION YEAR: 2013

    OPERATION HOURS: 0 (never installed)

    WARRANTY: 1 year from the seller (with commissioning assistance)

    STORAGE: warehouse in original MTU packaging

    Factory acceptance testing and technical file by MTU.

    Installed options:

    • start system 24V
    • coolant preheating unit
    • centrifugal oil filter
    • lube oil priming system
    • fuel treatment plant KFWA 2
    • engine mounted heat exchanger
    • Set of exhaust elbows and bellows
    • exhaust junction
    • resilient engine mounts
    • resilient coupling for freestanding gearbox - OPTION

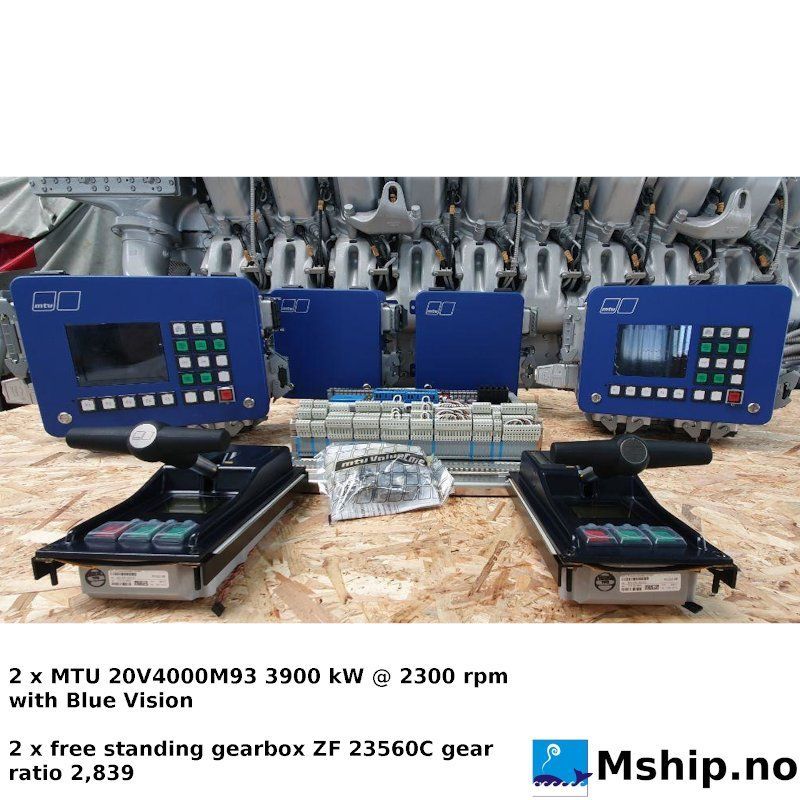

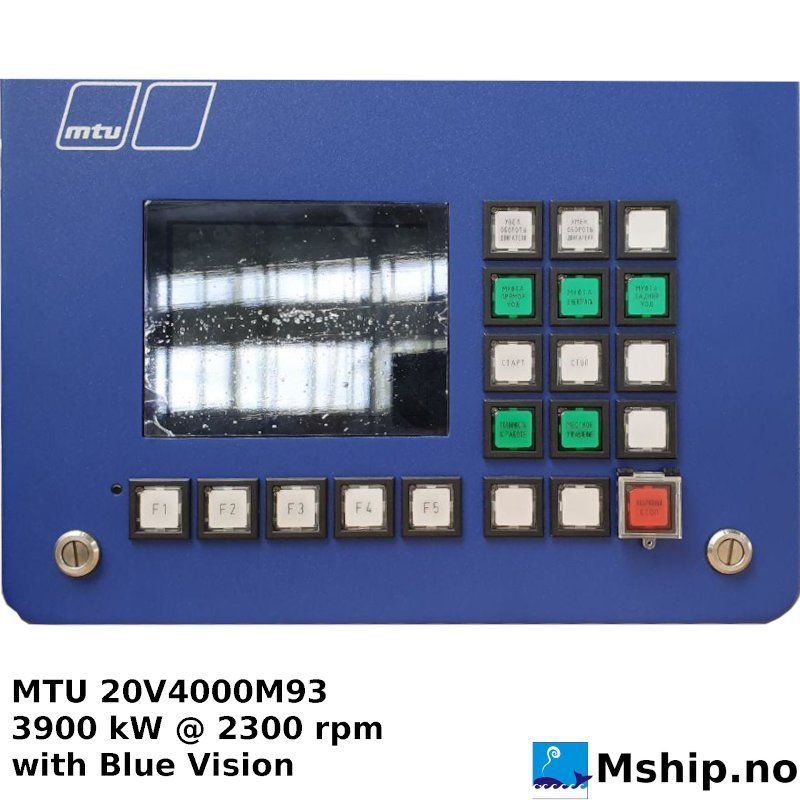

    • Blue vision 2 control stations (wheelhouse, fly
      bridge + LOP)
    • gearbox controls for electric remote control, - OPTION
      trolling device
    • TFT monitor 17” with trackball
    • printer
    • control levers
    • engine telegraph system
    • MTU system cables
    • documentation, IMO Tier 2
