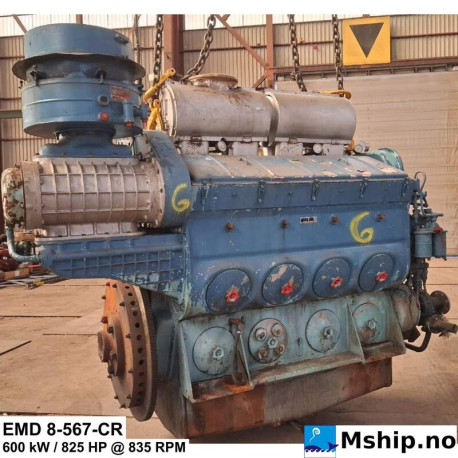

EMD 8-567-CR — Manufacturer: EMD, Model: 8-567-CR, Alternative part number: 8567CR, Serial number: 62-E-31, Year: 1962, HP: 825, kW: 600, RPM: 835, Cylinder bore: 8 1⁄2 in (216 mm), Piston Stroke: 10 in (250 mm), Number of cylinders: 8, Displacement: 4539.61 cubic inches / 73,287 Liter, Cylinder configuration: V-engine, Fuel Type: Diesel, Class: Lloyd’s Register View larger
Previous Next

EMD 8-567-CR

EMD8567CR

Used

EMD 8-567-CR

EMD 8-567-CR

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer EMD
Model 8-567-CR
Alternative part number 8567CR
Serial number 62-E-31
Year 1962
HP 825
kW 600
RPM 835
Cylinder bore 8 1⁄2 in (216 mm)
Piston Stroke 10 in (250 mm)
Number of cylinders 8
Displacement 4539.61 cubic inches / 73,287 Liter
Cylinder configuration V-engine
Fuel Type Diesel
Class Lloyd’s Register

More info

Videos

EMD 8-567-CR

8-567CR ENGINE

Configuration 45° Vee V8
Displacement 4,540 cu in
567.5 cu in (9.3 L) per cylinder
Cylinder bore 8 1⁄2 in (216 mm)
Piston stroke 10 in (250 mm)
Valvetrain Overhead camshaft, one per bank
Compression ratio
  • 16:1 (Roots-style blower)

EMD Pointers publication, October 17, 1956, "NEW MODEL 8-567CR ENGINE" "Due to expanding usage in a wide variety of applications, the 8 cylinder 567C engine is now being manufactured with certain design changes to provide a better total balance. This "rebalanced" engine has the model designation 8-567CR and supersedes the previous standard 8-567C in all applications. The major change is in firing order, which requires a new design crankshaft #8235623 for the 8-567CR engine. This crankshaft has 2 relocated crankpin throws as well as larger counterweights." - reference: https://en.wikipedia.org/wiki/EMD_567
