View larger

Reference: 7285036

Condition: Used

Deutz MWM TBD604 BV12

Manufacturer	Deutz MWM
Model	TBD604 BV12
Serial number	7285036
Year	1986
HP	1475 hp @ 1500 rpm 1632 hp @ 1690 rpm / 1795 hp @ 1745 rpm
kW	1100 kW@ 1500 rpm / 1200 kW @ 1690 rpm / 1320 kW @ 1745 rpm
RPM	1500 /1690 / 1745
Running Hours	less than 150 since new
Cylinder bore	170 mm
Piston Stroke	195 mm
Number of cylinders	12
Displacement	53,1 Liter
Cylinder configuration	V-engine
Rotation direction	CCW - Counter clockwise seen from aft
Fuel Type	Diesel
Injection pump type	Block pump with internal camshaft. The camshaft gear wheel of the engine drives the gear wheel, which is mounted on the internal camshaft of the block pump.
Other	IMO type double wall high pressure injection tubes
Weight	3,89 ton with flywheel
Fuel consumption	192 - 202 g/kWh using a fuel with a lower calorific value of 42,700 kJ/kg (10,200 kcal/kg) as per DIN 6271

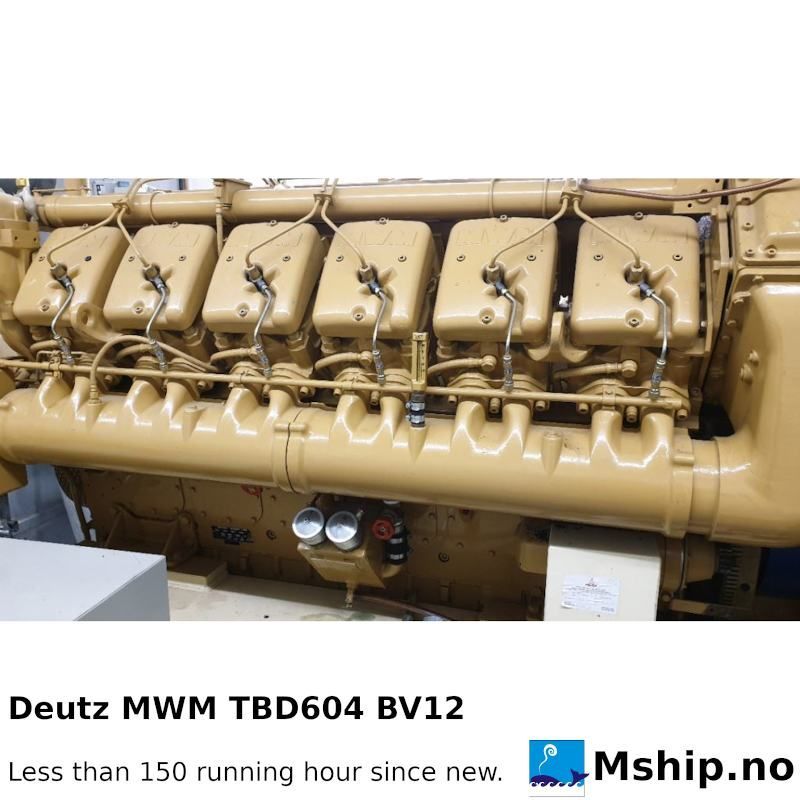

Deutz MWM TBD604 BV12

This engine have less than 150 running hours since new.
