Kumera Helseth Type 4H 4 blade CPP propeller — Manufacturer: Kumera HELSETH, Model: Type 4H (4-blade controllable pitch propeller), Manufacturers part number: 4H110/100-1700 HS + VS (starboard + port side), Performance specification: Medium-duty CP propeller series for work boats, fishing, passenger and fast monohull / catamaran vessels, Year: 2022 (built), RPM: Propeller design speed approx. 280 rpm, Rotation direction: Pair: one CW and one CCW propeller (HS starboard / VS port), Class: DNV (class hard stamp on the propellers), Other: Sold as a pair (2 pcs) incl. propeller shafts and shrink-fit shaft flanges (motor / shaft). Used, very good condition, Gear type: Not included – for use with a CPP gearbox (pitch rod to the pitch piston in the gearbox), DIMENSIONs: Propeller diameter 1700 mm; shaft diameter 100 mm; shaft length approx. 7300 mm, Maximum speed: Up to approx. 35 knots View larger
Previous Next

Kumera Helseth Type 4H 4 blade CPP propeller

4H110100

Used

Kumera Helseth 4H 4-blade CP propeller pair, Ø 1700 mm, CW + CCW, DNV.

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer Kumera HELSETH
Model Type 4H (4-blade controllable pitch propeller)
Manufacturers part number 4H110/100-1700 HS + VS (starboard + port side)
Performance specification Medium-duty CP propeller series for work boats, fishing, passenger and fast monohull / catamaran vessels
Year 2022 (built)
RPM Propeller design speed approx. 280 rpm
Rotation direction Pair: one CW and one CCW propeller (HS starboard / VS port)
Class DNV (class hard stamp on the propellers)
Other Sold as a pair (2 pcs) incl. propeller shafts and shrink-fit shaft flanges (motor / shaft). Used, very good condition
Gear type Not included – for use with a CPP gearbox (pitch rod to the pitch piston in the gearbox)
DIMENSIONs Propeller diameter 1700 mm; shaft diameter 100 mm; shaft length approx. 7300 mm
Maximum speed Up to approx. 35 knots

More info

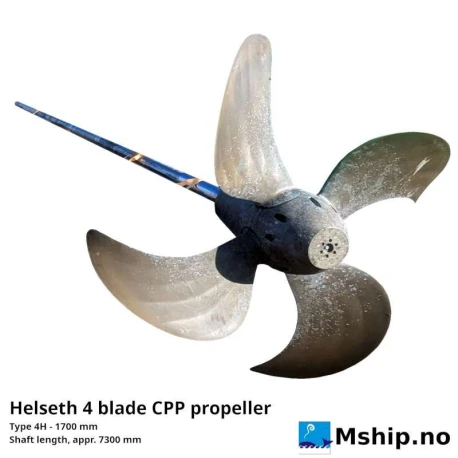

Pair of used Kumera Helseth type 4H four-blade controllable pitch propellers, one for each side of the vessel (HS / VS), built in 2022 and DNV hard-stamped. Each propeller comes with its propeller shaft and a shrink-fit shaft flange.

  • Propeller system 4H110/100-1700 HS + VS
  • Diameter 1700 mm, one clockwise and one counter-clockwise propeller
  • Shaft diameter 100 mm, shaft length approx. 7300 mm
  • Design speed approx. 280 rpm, for vessels up to approx. 35 knots
  • For use with a CPP gearbox: the pitch is set through a pitch rod to the pitch piston built into the gearbox
  • Very good condition

The Helseth 4H is a medium-duty series for work boats, fishing vessels, passenger vessels and fast monohulls and catamarans. The hub is streamlined and the blades sit flush with it for a smooth water flow, which gives good efficiency with low noise and vibration.

Contact us for price and condition.
