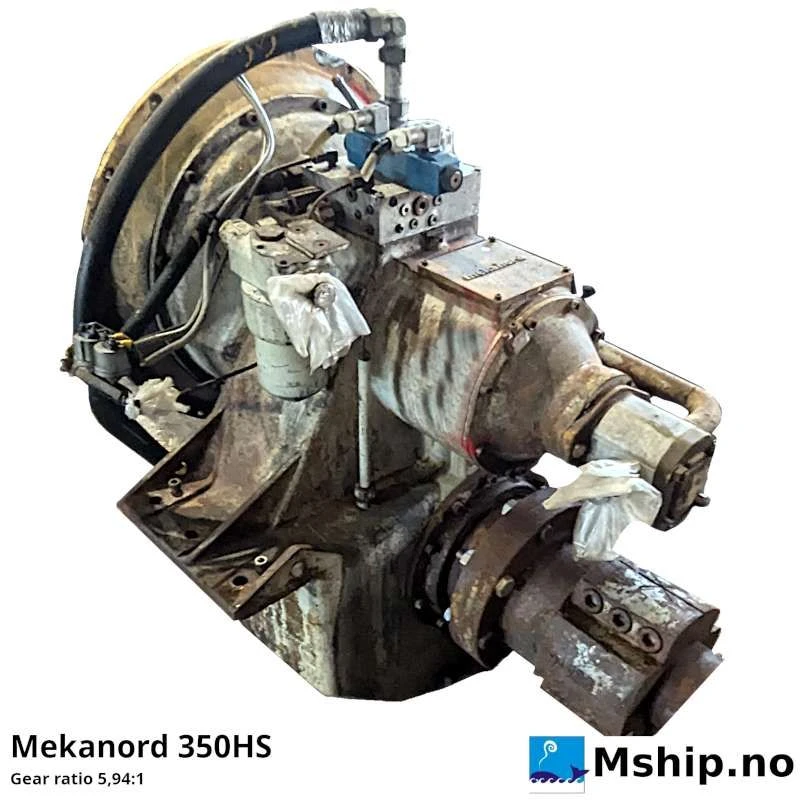

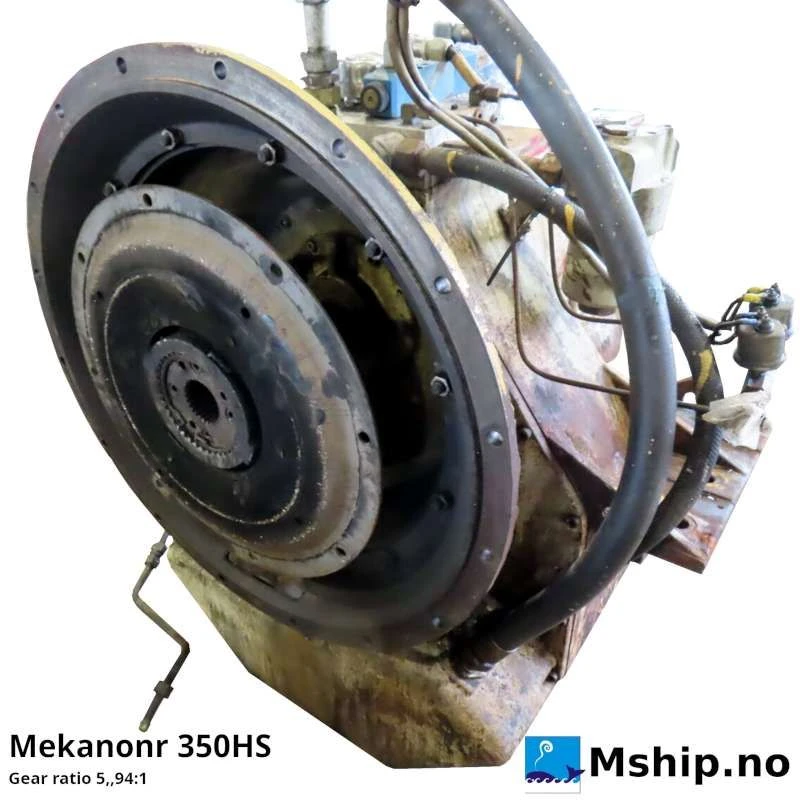

Mekanord 350HS — Manufacturer: Mekanord, Model: 350HS, Serial number: 9-028, Year: 1994, HP: Power Factor 0,333 HP / RPM, kW: Power Factor 0,245kW / RPM, Weight: About 600 kg, Gear type: Non Reversing Gearbox CPP - to be used with controllable pitch propeller, Gear ratio: 5,94:1 View larger
Previous Next

Mekanord 350HS

Mekanord-350HS9028

Used

Mekanord 350HS

More details

Price on request

or call +47 908 92 500

Data sheet

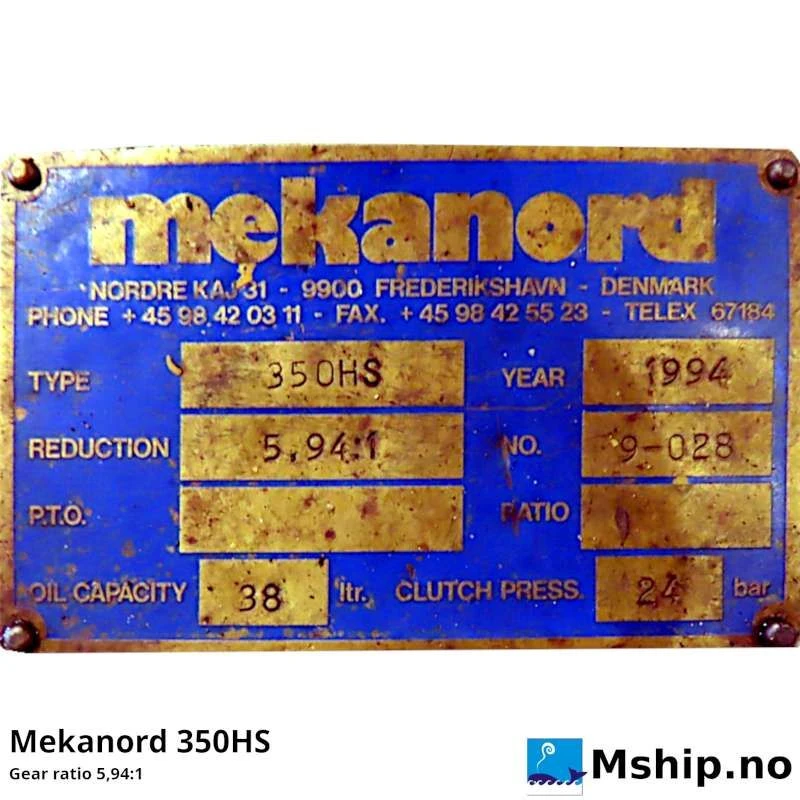

Manufacturer Mekanord
Model 350HS
Serial number 9-028
Year 1994
HP Power Factor 0,333 HP / RPM
kW Power Factor 0,245kW / RPM
Weight About 600 kg
Gear type Non Reversing Gearbox CPP - to be used with controllable pitch propeller
Gear ratio 5,94:1

More info

Mekanord 350HS

Servo for propeller:
Max force = 120 kN
Max stroke = 90 mm

• Large economical reduction ratio.
• Built-in servosystem for C.P.-propeller.
• Compact design with short building length.
• Optional 1 or 2 P.T.O.’s each with own hydraulic clutch.
• Rigid cast iron house with S.A.E.1 flange towards the engine.
• Helical gearwheels in casehardened and grinded highly
alloyed steel.
• Hydraulic multiplate clutch.
• Oilsystem with direct driven oilpump, cooler, filter, valves etc.
• Pressure lubricated spherical rollerbearings.
• The 350 gearbox is designed according to the rules of the
classification societies.
