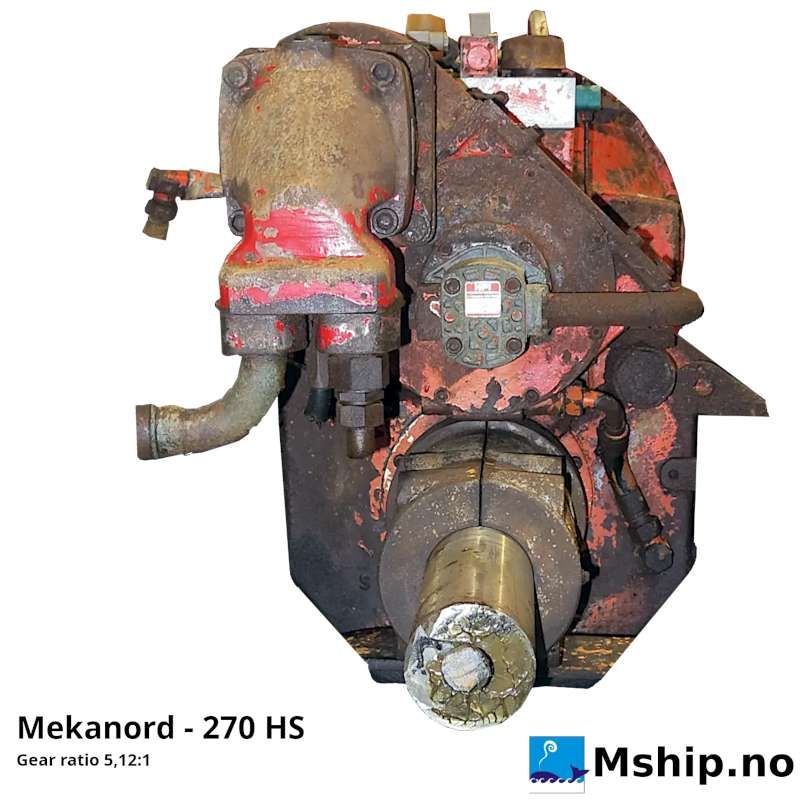

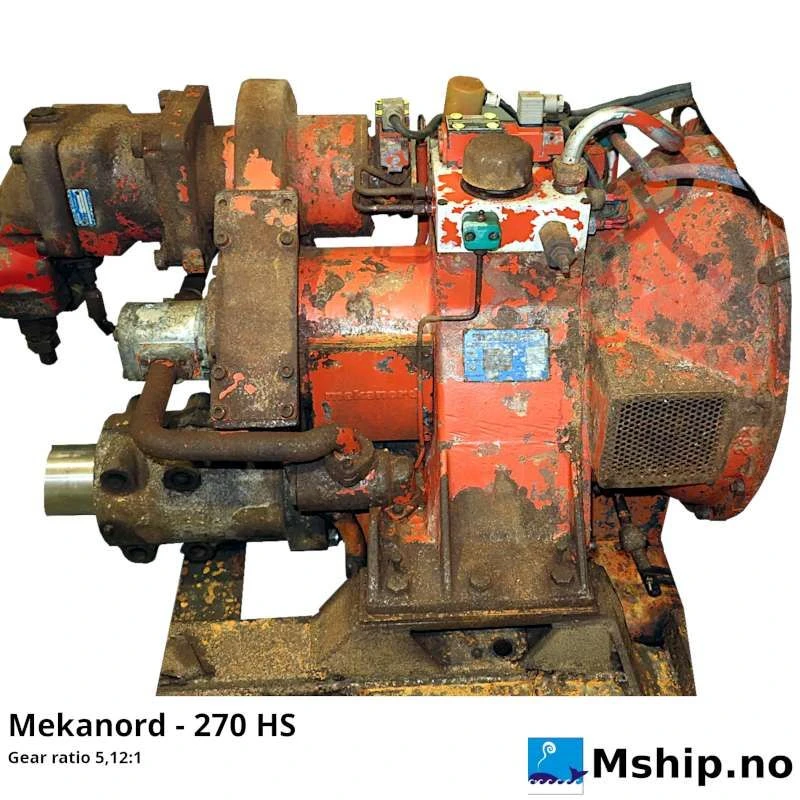

Mekanord - 270 HS — Manufacturer: Mekanord, Model: 270 HS, Alternative part number: 270HS, Weight: 370 Kg including 1 PTO., Gear type: Non Reversing Gearbox CPP - to be used with controllable pitch propeller, Gear ratio: 5,12:1 View larger
Previous Next

Mekanord - 270 HS

gb6375625

Used

Mekanord - 270 HS

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer Mekanord
Model 270 HS
Alternative part number 270HS
Weight 370 Kg including 1 PTO.
Gear type Non Reversing Gearbox CPP - to be used with controllable pitch propeller

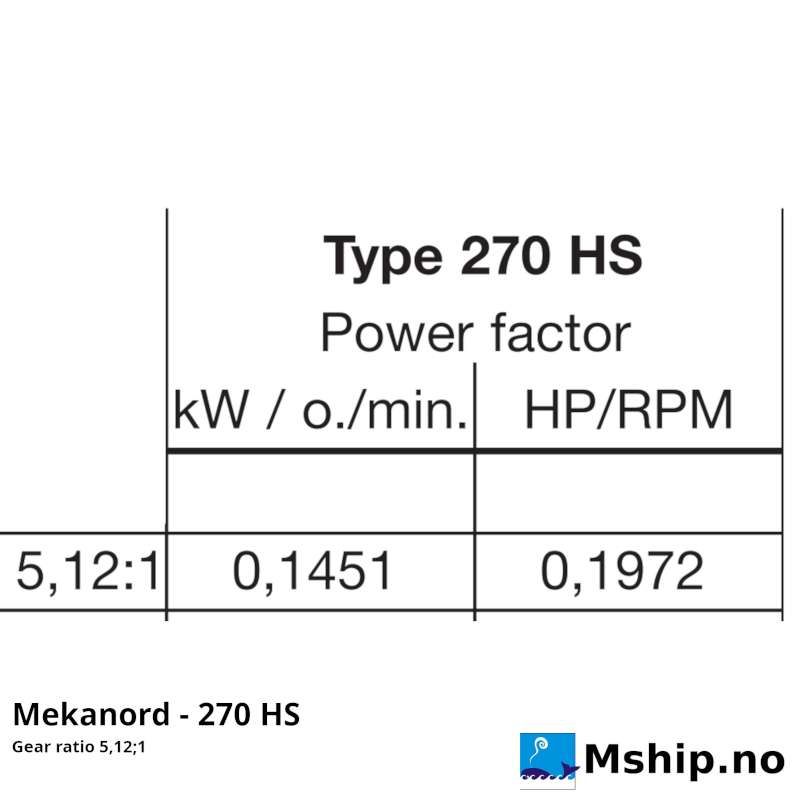

Gear ratio 5,12:1

More info

Mekanord - 270 HS

Fitted with 1 PTO and hydraulic pump on the PTO

• Built-in servosystem for C.P.-propeller.
• Compact design.
• Large economical reduction ratio.
• 1 P.T.O with own hydraulic clutch.
• Rigid cast iron house with S.A.E.1 flange towards the engine.
• Helical gearwheels in casehardened and grinded highly alloyed steel.
• Hydraulic multiplate clutch.
• Oilsystem with direct driven oilpump, cooler, filter, valves etc.
• Pressure lubricated spherical rollerbearings.
• The 270 gearbox is designed according to the rules
of the classification societies
