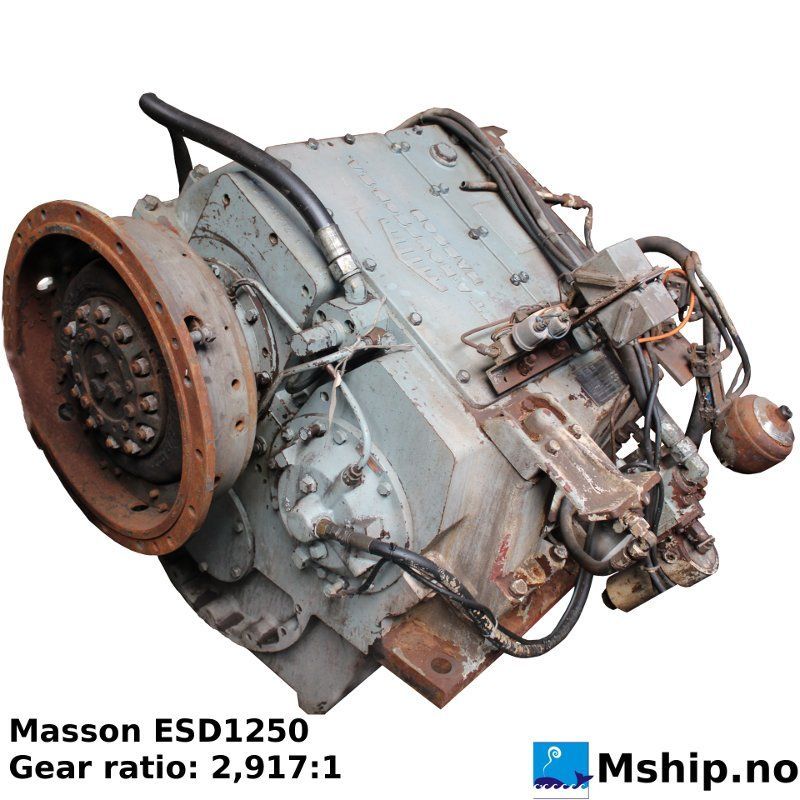

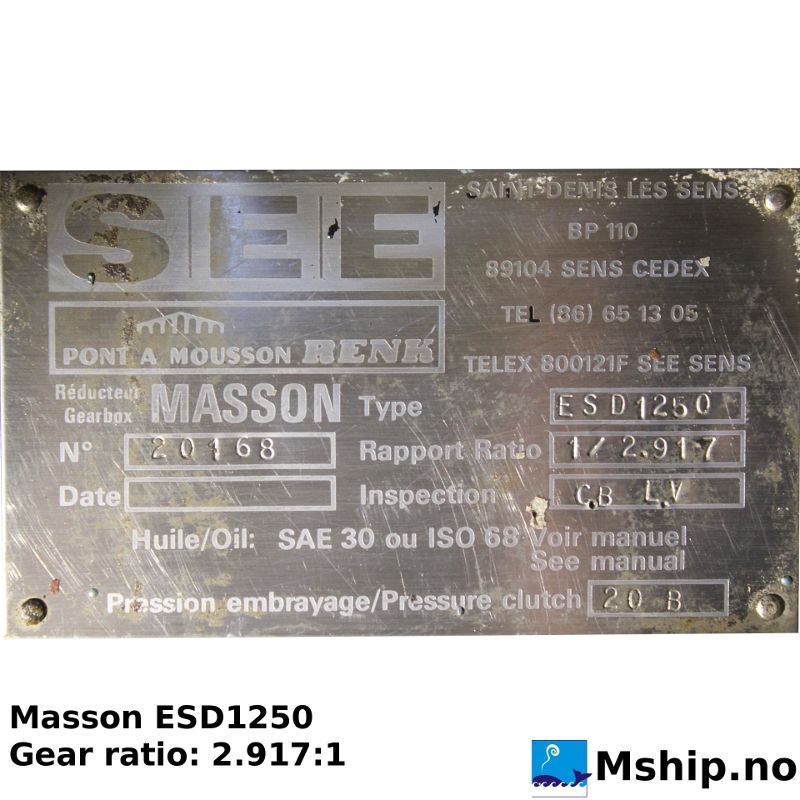

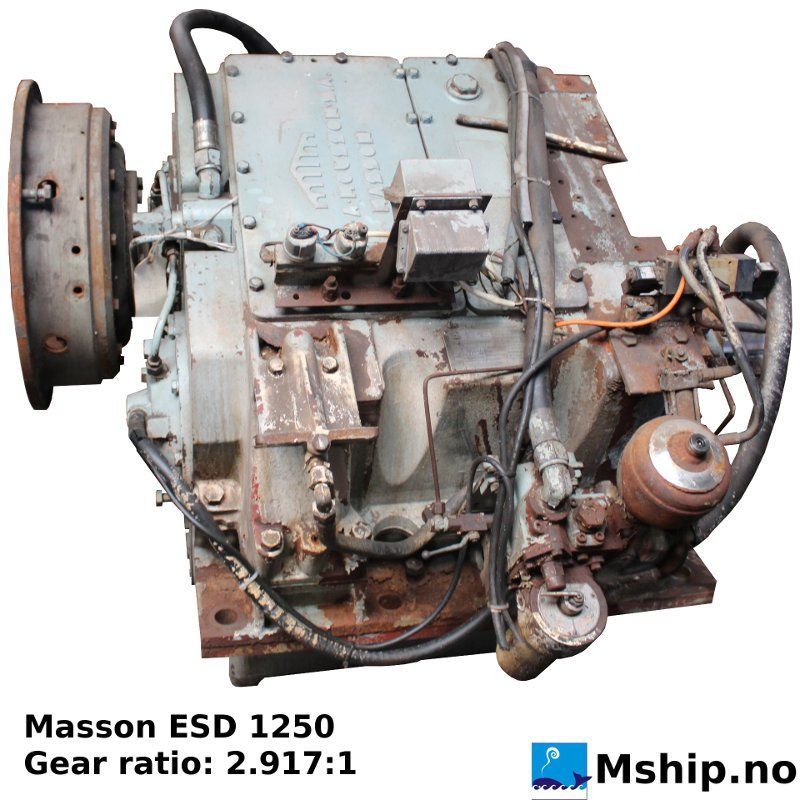

Masson ESD1250 — Manufacturer: Masson, Model: ESD1250, Serial number: 20168, HP: 2055, kW: 1511, RPM: 1250, Rotation direction: Input from engine: CCW seen from propeller side, Injection pump type: Non Reversing Gearbox, Other: This gearbox is still manufactured today under the following name: MM W12200 NR , Gear type: Non Reversing Gearbox CPP - to be used with controllable pitch propeller, Gear ratio: 2.917:1 View larger
Previous Next

Masson ESD1250

g149769

Used

Masson ESD1250

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer Masson
Model ESD1250
Serial number 20168
HP 2055
kW 1511
RPM 1250
Rotation direction Input from engine: CCW seen from propeller side
Injection pump type Non Reversing Gearbox
Other This gearbox is still manufactured today under the following name: MM W12200 NR
Gear type Non Reversing Gearbox CPP - to be used with controllable pitch propeller
Gear ratio 2.917:1

More info

This gearbox is sold. We have spare parts for most of the gearboxes we have sold, and we can often source a similar gearbox. Contact us with your request.

Examples of transmittable power (speed in rpm)
900 1200 1600
kW hp kW hp kW hp
2,18 1304 1774 ***** ***** ***** *****
2,65 1204 1638 ***** ***** ***** *****
2,98 1133 1541 1511 2055 ***** *****
3,48 1030 1400 1373 1867 ****** ******
3,91 945 1285 1260 1714 1680 2285
4,40 849 1154 1132 1539 1509 2052
4,97 751 1021 1001 1361 1334 1815
