AvK DSG 114 M1-8W generator 3111 kVA, 690 V 60 Hz, ABS

AvK DSG 114 M1-8W synchronous generator – 3111 kVA, 690 V, 60 Hz, ABS classed

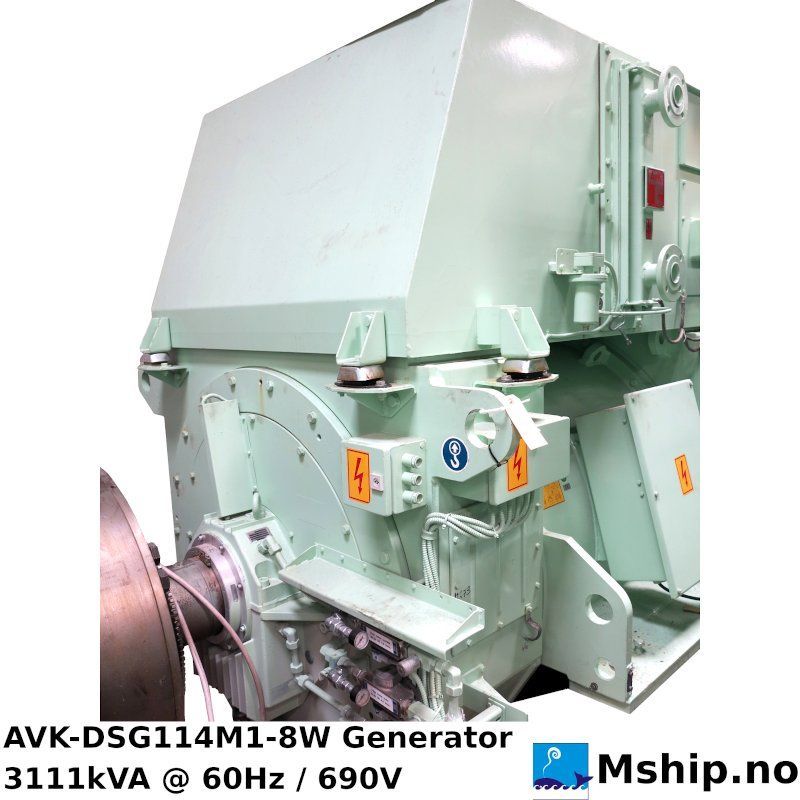

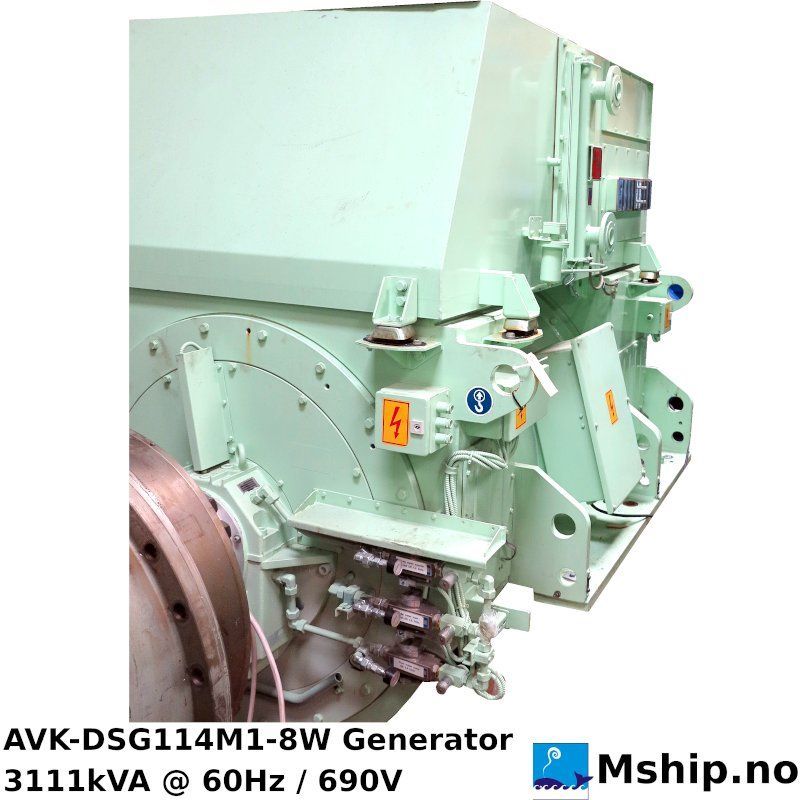

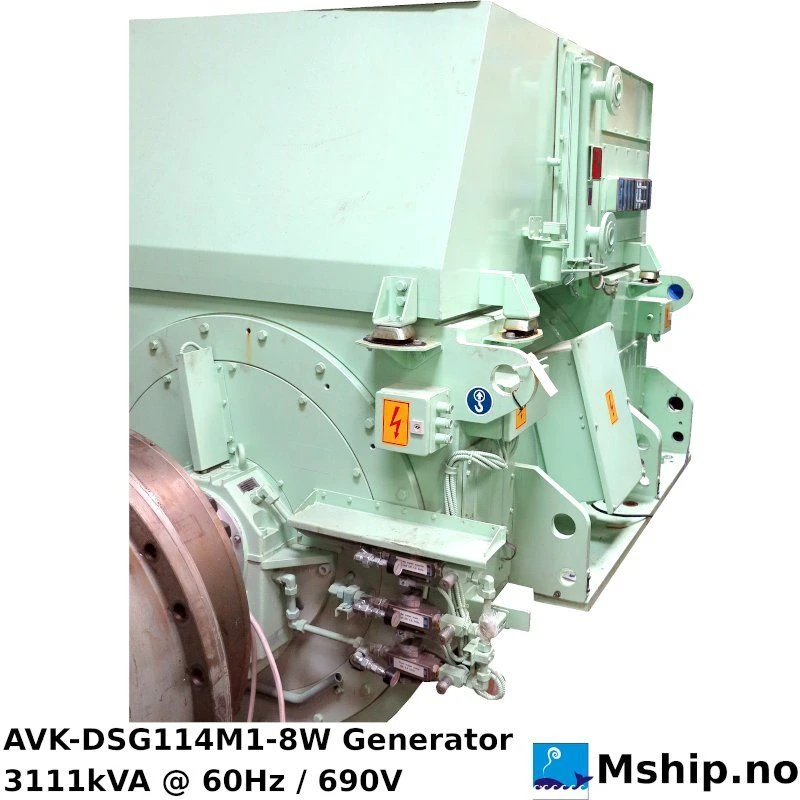

New, 0 running hours, built 2014, serial no. 8131776 A406. Water-cooled (IC 81W) with AvK heat exchanger by VDL Klima BV. Two identical units in stock – see also the other unit.

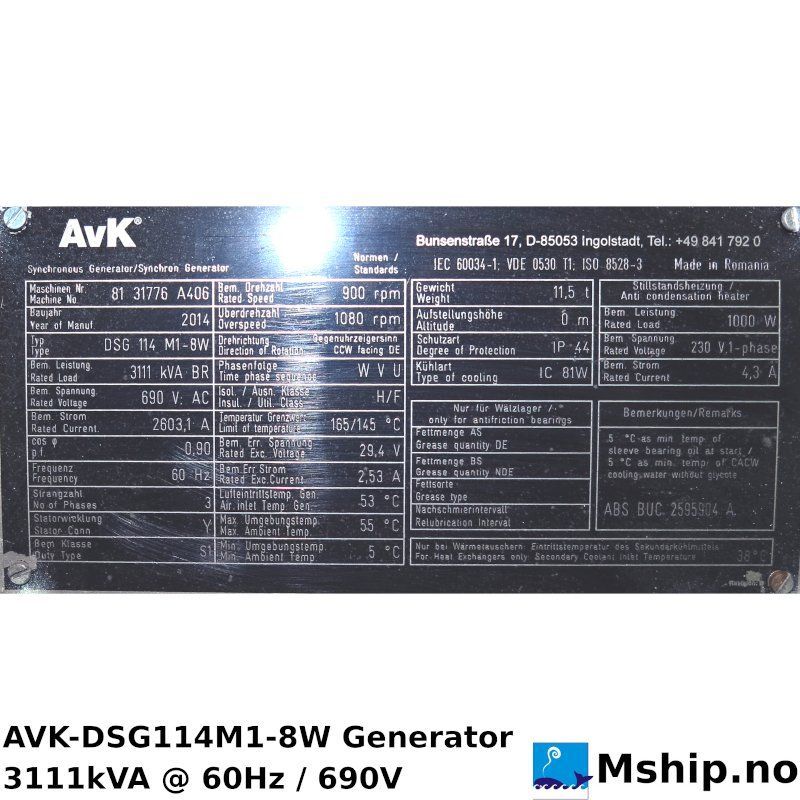

Nameplate data (AvK, Ingolstadt – made in Romania; IEC 60034-1, VDE 0530 T1, ISO 8528-3)

• Type: DSG 114 M1-8W, synchronous generator, duty S1
• Output: 3111 kVA (BR), 690 V AC, 2603.1 A, cos φ 0.90, 60 Hz, 3 phases, star (Y)
• Speed: 900 rpm, overspeed 1080 rpm, rotation counter-clockwise facing DE, phase sequence W V U
• Excitation: 29.4 V / 2.53 A
• Insulation class H, utilisation class F, limit of temperature 165/145 °C
• Protection IP44, cooling IC 81W; air inlet temperature 53 °C, ambient 5–55 °C, secondary coolant inlet max 38 °C
• Anti-condensation heater 1000 W, 230 V 1-phase, 4.3 A
• Sleeve bearings: min. 5 °C bearing oil temperature at start; cooling water without glycol
• Weight 11.5 t
• Classification: ABS, certificate BUC 2595904 A

Heat exchanger: AvK / VDL Klima BV type 16KDLD-183-1320-4-1.8, built 2014, ABS certificate AN2528326

• Water flow 11.4 m³/h, air temperature in / out 75 / 53 °C
• Design pressure 0 / 6 barg, test pressure 9 barg, design temperature 0 / 80 °C
• Weight full / empty 203 / 183 kg

About the AvK DSG series (from the AvK DSG product brochure – series standard, not checked on these units)

• Self-regulating, brushless synchronous alternator with damper cage, self-excitation via permanent magnets in the exciter
• Voltage regulator COSIMAT N+ (standard from DSG 74), in a separate terminal box on DSG 114–144; static voltage tolerance ±0.5 to ±1 %
• Equipped as standard for parallel operation (voltage droop current transformer)
• Overload: 1.5 x rated current for 30 s, 1.1 x for 1 h within 6 h, approx. 1.8 x for approx. 10 s; sustained short-circuit current 2.5–4 x rated current for 3 s
• DSG 114–144: feet integrated in the end shields, both end shields bolted to the stator housing
