MTU 20V 4000 P63 Generator set 2500 kWe - EDG for Nuclear Power Plants

MTU 20V 4000 P63  Generatorset   2500 kWe -  EDG for Nuclear Power Plants

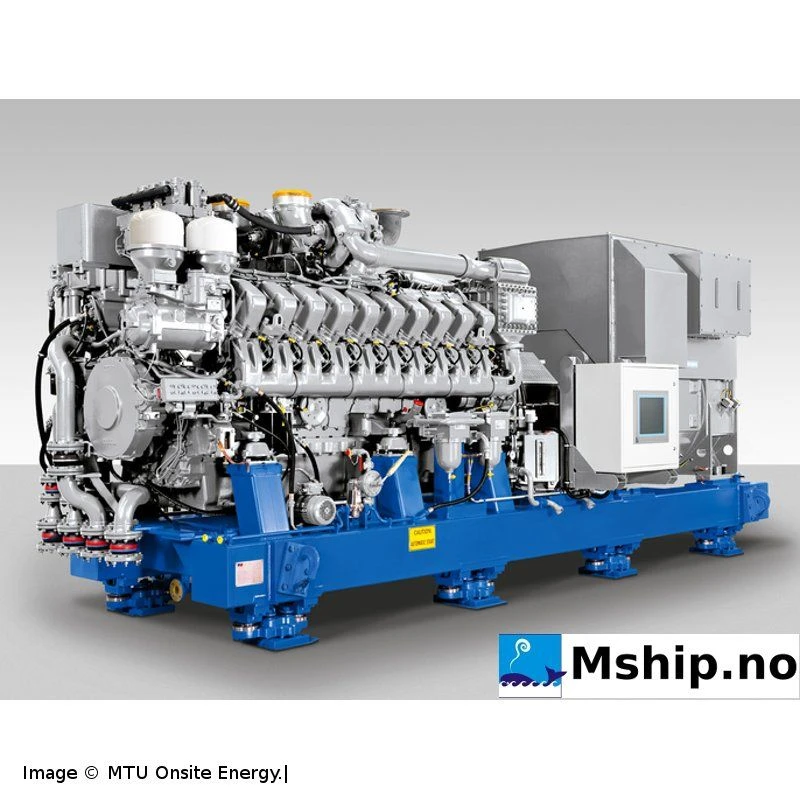

MTU Series 4000 NPP Genset.

• Highest availability and reliability
• Start-up time: 10 seconds until readiness for load acceptance
• Load acceptance capability of 50% in the first load step
• Compatible with all diesel building designs within its power range due to optimum relation of power to dimensions and weight
• High level of system integration into the base frame to reduce the number of separate mechanical systems and interfaces
• Certification according the IEEE 387 and KTA 3702 (further nuclear standards on customer demand)
• Quality management in engineering and manufacturing according EN ISO 9001, KTA 1401and IAEA 50 C QA Rev.1
• Load Profile : Continuous power rating of all MTU NPP Engines is in accordance with ISO 8528.
  This genset are capable of supplying the maximum nominal power at the alternator terminals for a cumulated length of 8760 hours.


Equipment

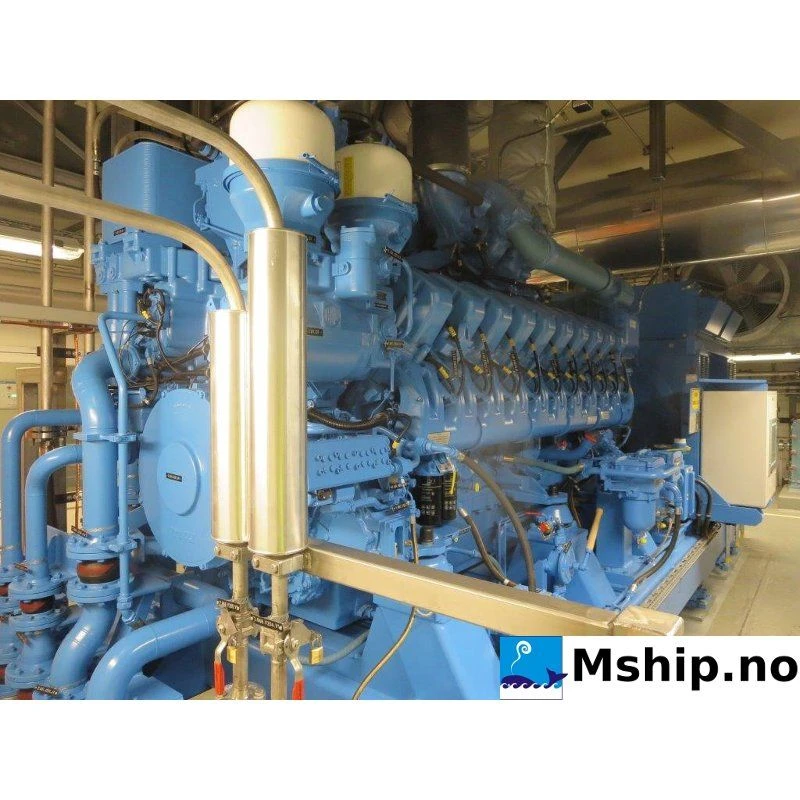

• Engine: MTU 20V4000 P63 type-tested according KTA 3702
• Governor: SafeDEC engine control unit (IEC 60880-certified)
• Cooling System: Dual-circuit engine cooling, - With Alfa Laval M10-MFD Plate heat exchangers
• Fuel System: Common rail fuel injection

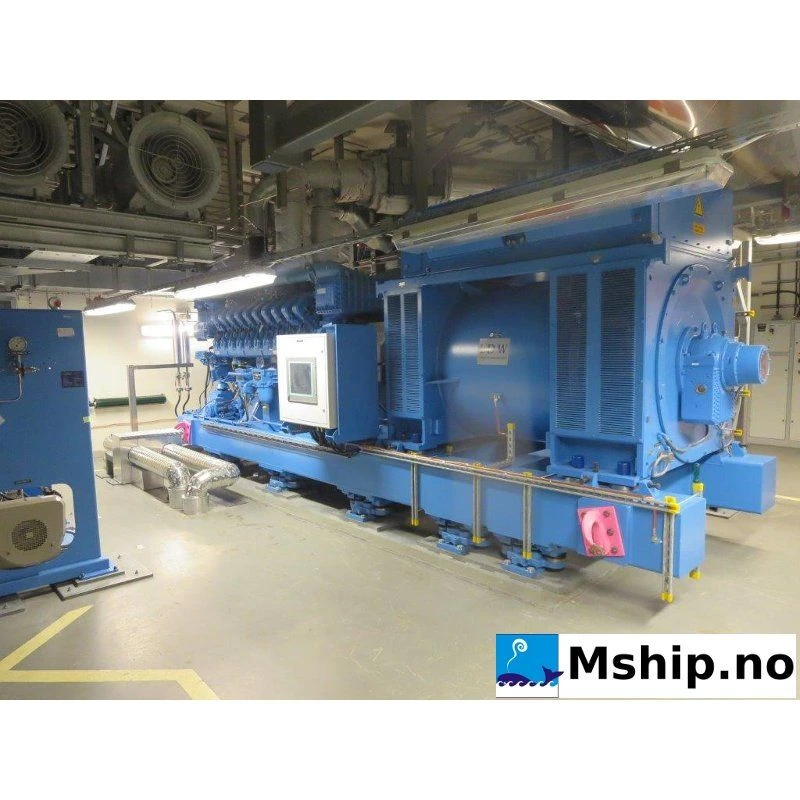

• Generator: Lloyd Dynamowerke S5E710M50-4SE. Design according IEC,DIN, BS; with class protection IP44

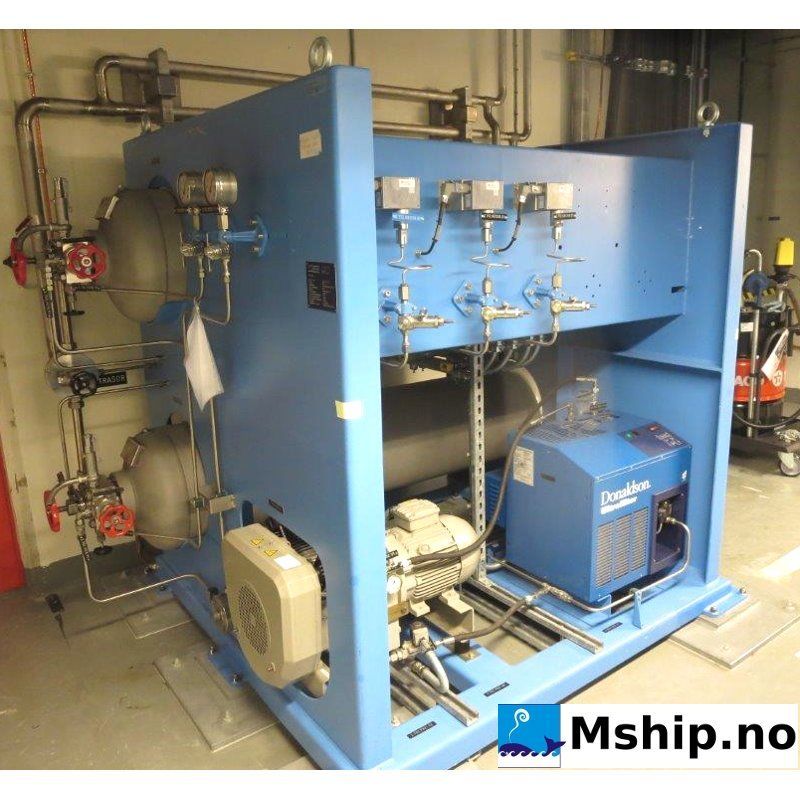

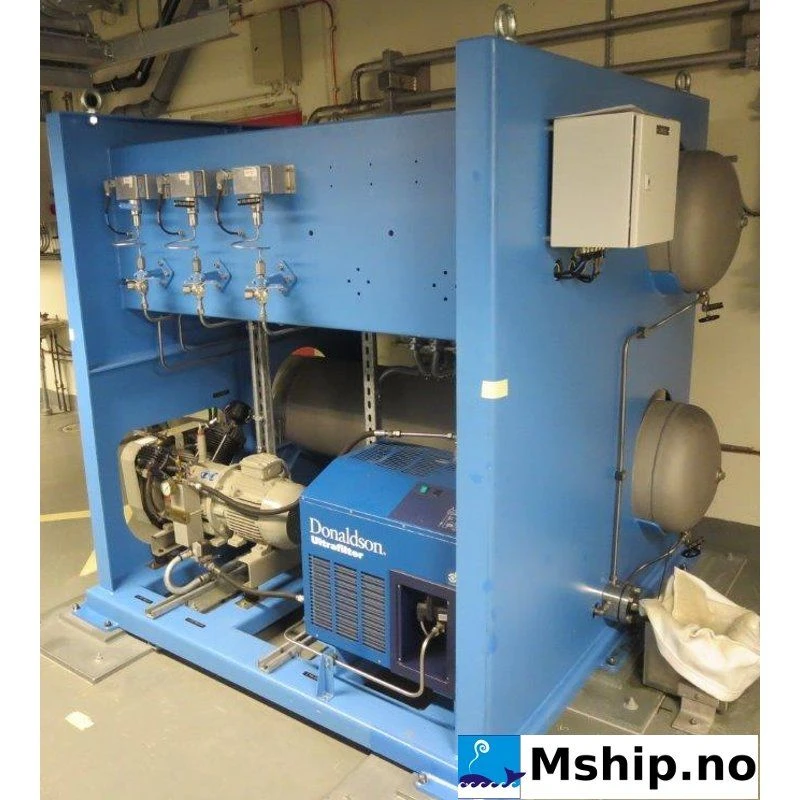

• Starting system: Compressed air with pneumatic motor Air Starting System. The Air Starting System consists of an electrically driven air compressor,compressed air vessels and start-up valves.

• Dimensions L x W x H   7.2 x 2.7 x 2.9 m
• Weight approx.  32 t
• Start-up time 10 s
• Nominal power  2500 kWe
• Nuclear codes KTA 3702 / IEEE 387
• Number of cylinders 20V
• Rated speed 1500 RPM
• Cylinder config. 90°V
• Bore/Stroke 170 mm / 210 mm
• Electronic engine governor  MTU SafeDEC
