Racor announces the addition of our
new, compact 79804MA Series diesel
fuel filter/water separator, made of
100% steel construction to meet
applicable marine classification society
requirements for marine fuel filters on
classed and inspected vessels. The
new 804MA series will be available in
single, dual valved and triple valved
configurations and handle fuel flow
rates of 240, 480 and 720 gallons per
hour, respectively; utilizing the standard
Racor 2020 Series filter cartridges.

75804MA Turbine Series Fuel Filter

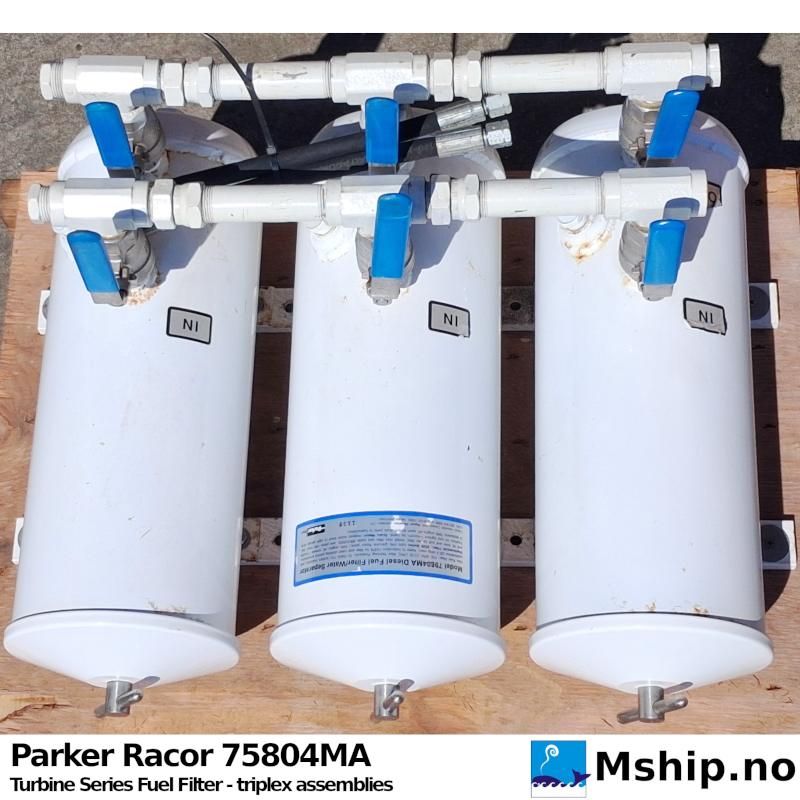

79804MA triplex assemblies
feature three single units to
deliver triple the fuel flow and
performance of a single unit.

This model uses three 2020
Series fuel filter cartridges.

Install on suction side of pump for
maximum efficiency and filter life.

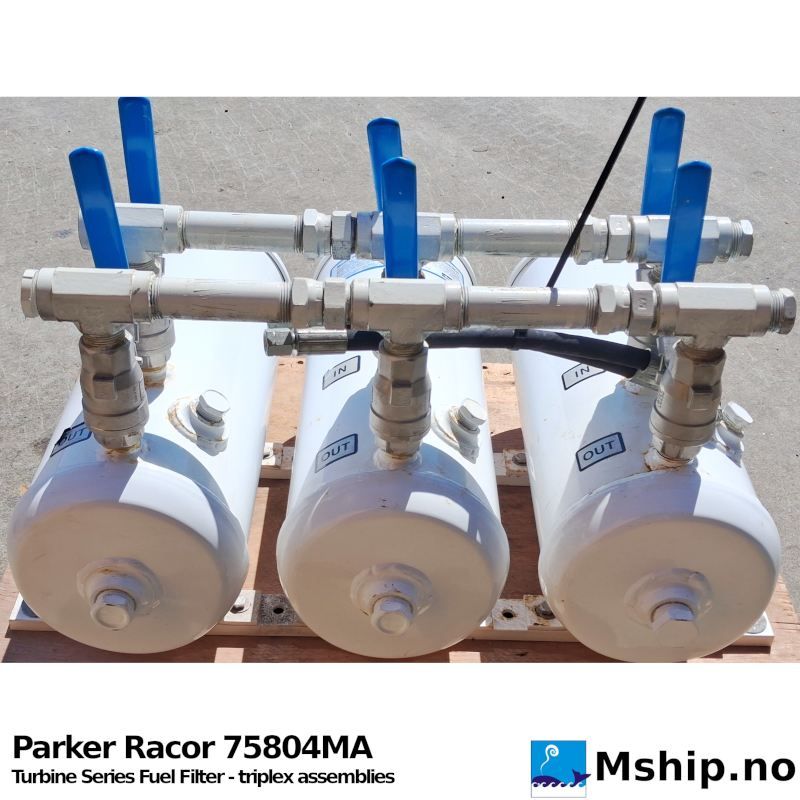

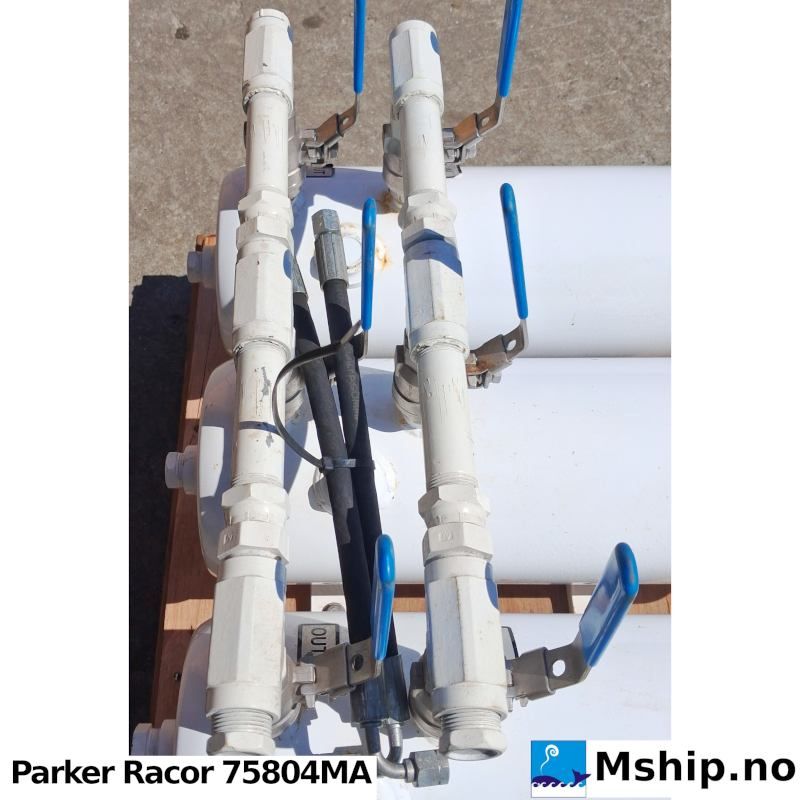

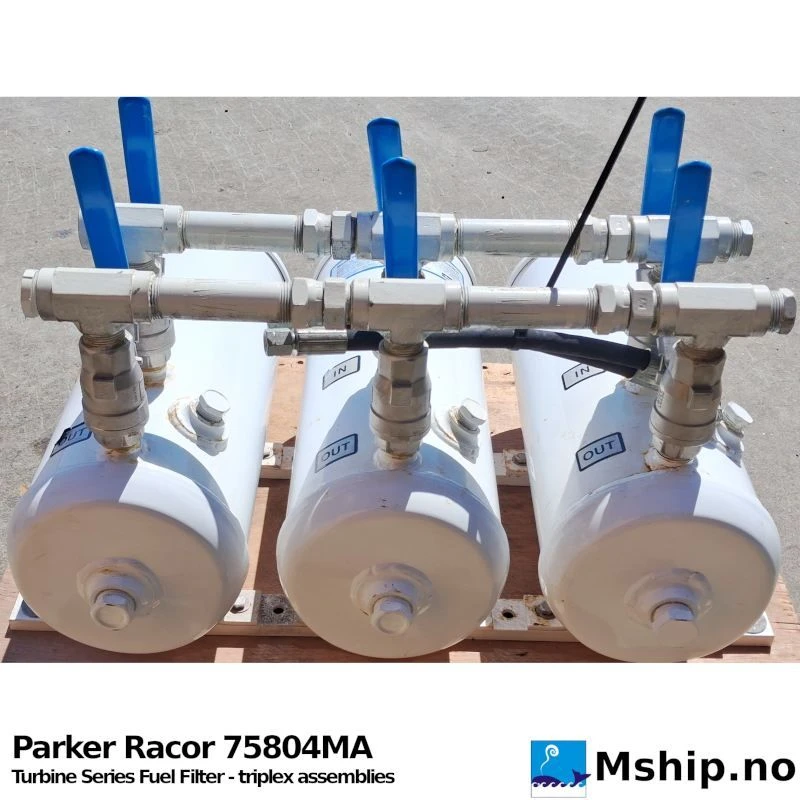

All triple manifolded assemblies have steel ball valves to allow the isolation of each unit, so you
don’t have to shut the engine down to service the filter. The manifold pipes are threaded at each end, so
once installed on the engine, fuel can flow from the left or right—just cap the ends you do not use.
Note: All flow rates, dimensions, and weights for the 75804MA and 79804MA Series are approximations and subject to change.
