Sperre HL2/120 Start air compressor — Manufacturer: Sperre, Model: HL2/120, Serial number: 1210025, kW: 16.5, RPM: 1170, Running Hours: 11913, Number of cylinders: 2, Cylinder configuration: V, Class: DNV, Volt: 440, HZ: 60, Working pressure BAR: 30, Test Pressure BAR: 45 View larger
Previous Next

Sperre HL2/120 Start air compressor

8288-1210025

Used

Sperre HL2/120 Start air compressor

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer Sperre
Model HL2/120

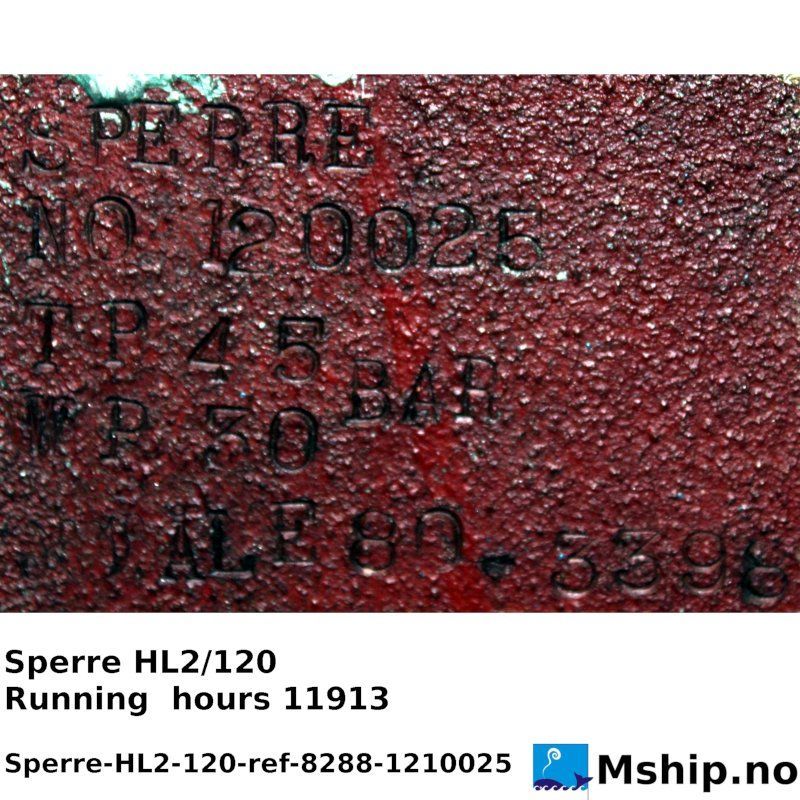

Serial number 120025

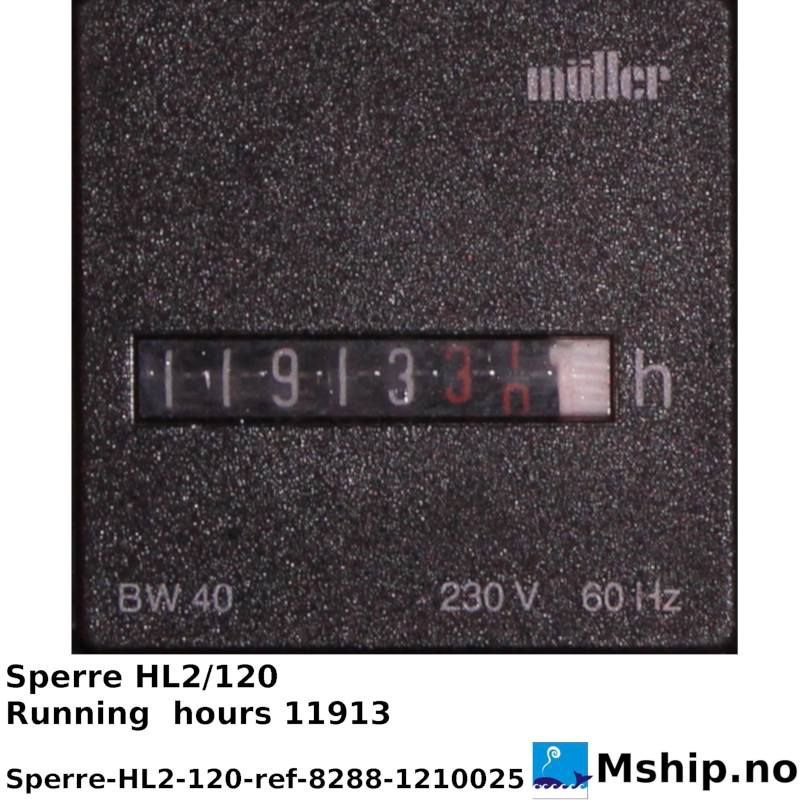

Running Hours 11913
m³ /h, cubic meter per hour capacity 60 at 1170 rpm (60 Hz) / approx. 50 at 975 rpm (50 Hz)
Working pressure BAR 30
Test Pressure BAR 45
Number of cylinders 2
Cylinder configuration V
Class DNV

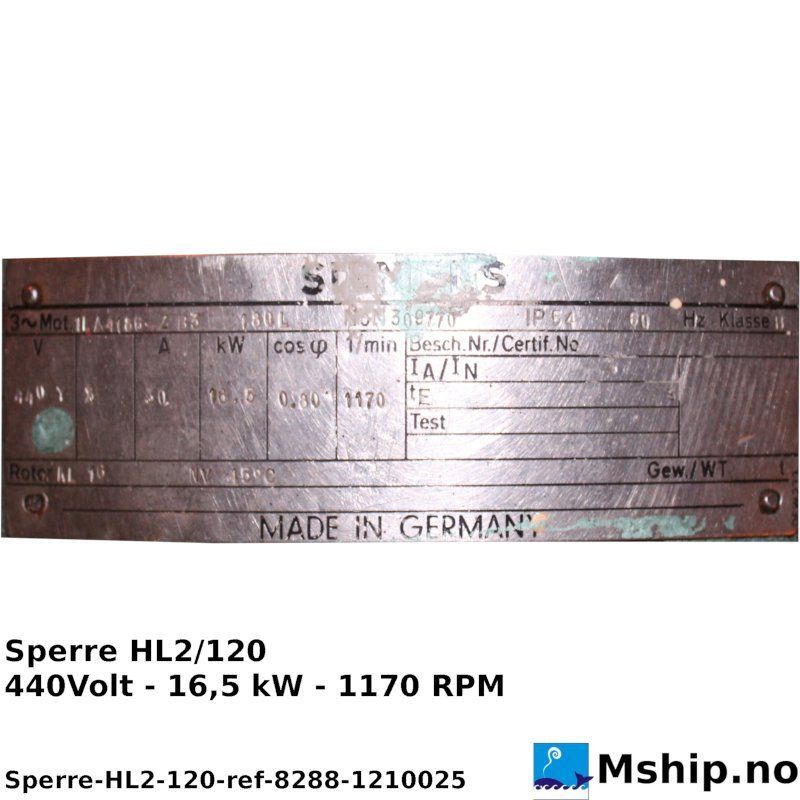

kW 16.5
RPM 1170
Volt 440
Amps 30 A (440 V)
HZ 60

More info

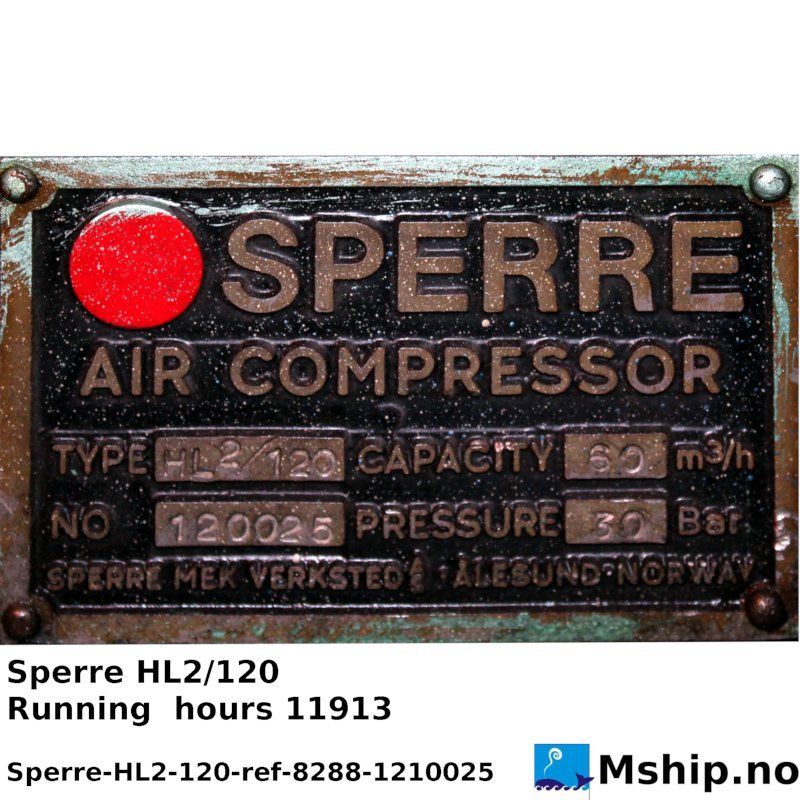

Capacity at 50 / 60 Hz: 60 m³/h at 1170 rpm (60 Hz) according to the nameplate. On 50 Hz the speed is approx. 975 rpm, which gives approx. 50 m³/h. 60 Hz gives 20 % higher speed than 50 Hz, and thus approx. 20 % more air (theoretical, capacity follows speed). The HL2/120 is rated for max. 1500 rpm and uses a 6-pole motor.

Model HL2/120 is a two stage 90º V-compressor.

Cylinders and compressed air coolers are air-cooled. Cooling air is supplied by a well-dimensioned fan.

Bearings and cylinders walls are splash lubricated.

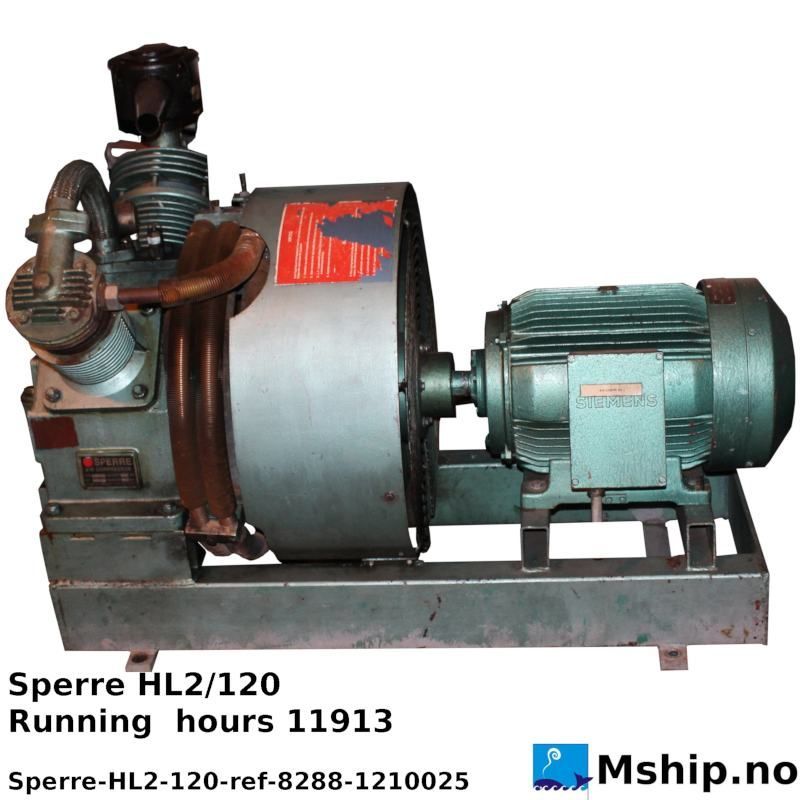

The compressor and motor are normally supplied mounted together on a foundation,and connected by means of a heavy-duty flexible coupling.

echnical Data
Performance50 Hz (30 bar)60 Hz (30 bar)
Speed (RPM) 975 1450 1175
Charging capacity (m³/h)* 50 74 59
Power requirement (kW) 11,5 19,3 14
Heat dissipation (kCal/h) 8901 14935 10836
*Charging capacity is from ambient pressure to final pressure. Tolerance +/-5%.
Design
No. of cylinders 2
Cylinder arrangement 90° V
No. of compression stages 2
Cooling Air
Cooling system Direct driven axial fan
Valve LP Concentric plate valve
Valve HP Concentric plate valve
Dimensions & weight
Cylinder diameter LP 120 mm
Cylinder diameter HP 77 mm
Stroke 100 mm
Weight (compressor/el.motor) 573 kg
Lubrication
Sump capacity 10 litres
Lubrication system Splash
Operating parameters
Maximum delivery pressure 40 bar
Ambient temperature 45°C
Normal working pressure LP 3–4 bar
Normal temperature outlet air Approx. 15°C above ambient temperature
Maximum speed 1500 RPM
Set point thermo switch air alarm/stop 75°C/80°C
Rotation Anti-clockwise (looking at the drive end)
Safety valves set point 10% above stage pressure
Max. noise level 91 dBA
Max. vibration level 30 mm/s-RMS
