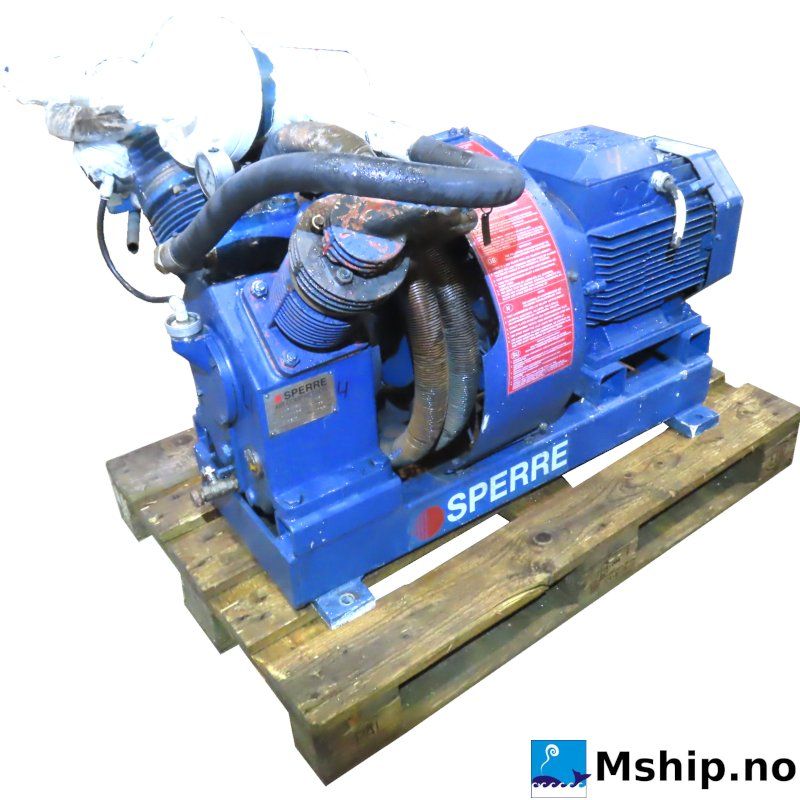

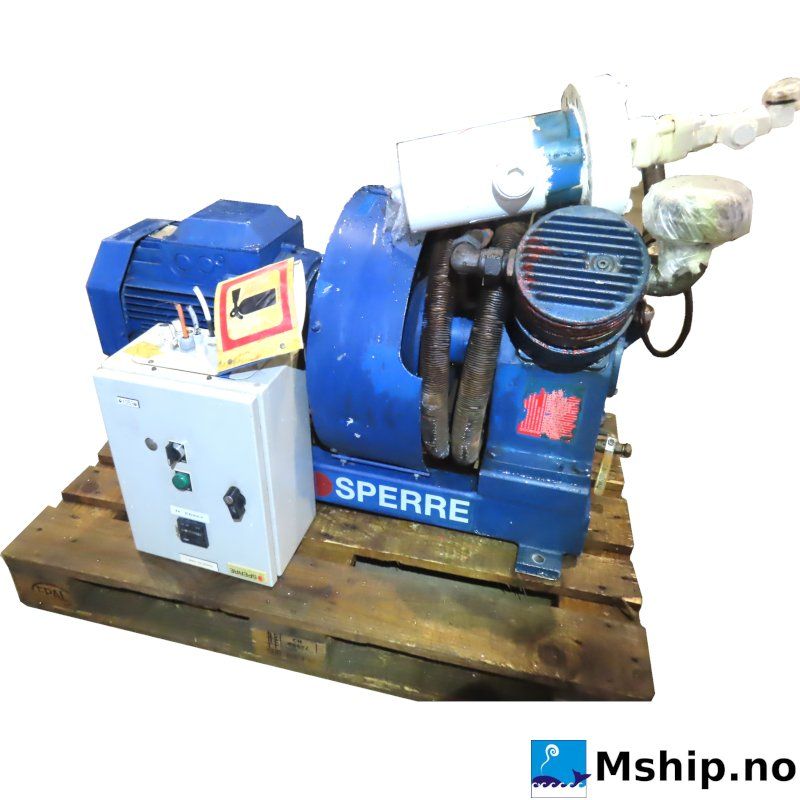

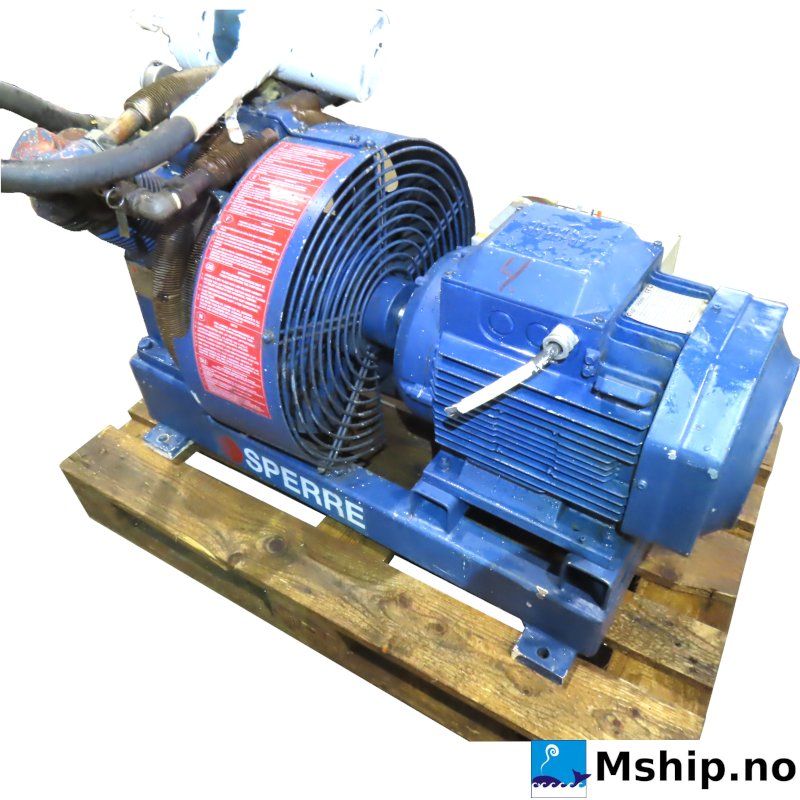

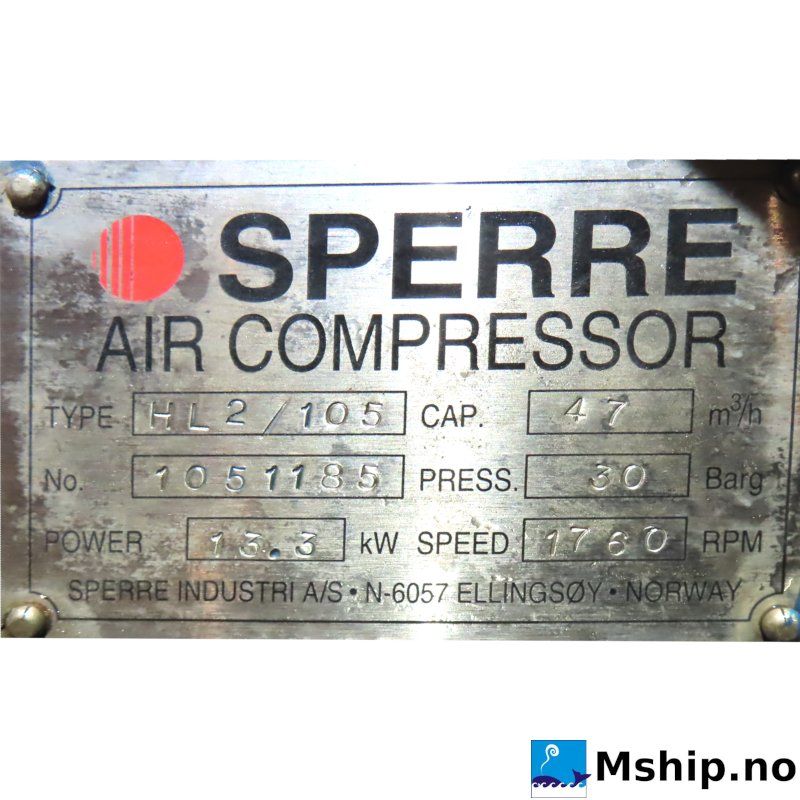

Sperre HL2/105 Air Start Compressor — Manufacturer: Sperre, Model: HL2/105, Serial number: 1051185, RPM: 1760, Class: DNV, m³ /h, cubic meter per hour capacity: 47m³ / h, Electric motor type: ABB M3AA 160L 4, Working pressure BAR: 30 View larger
Previous Next

Sperre HL2/105 Air Start Compressor

Sperre-105-1051185

Used

Sperre HL2/105

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer Sperre
Model HL2/105
Serial number 1051185
m³ /h, cubic meter per hour capacity 47 at 1760 rpm (60 Hz) / approx. 39 at 1450 rpm (50 Hz)
Working pressure BAR 30
Class DNV

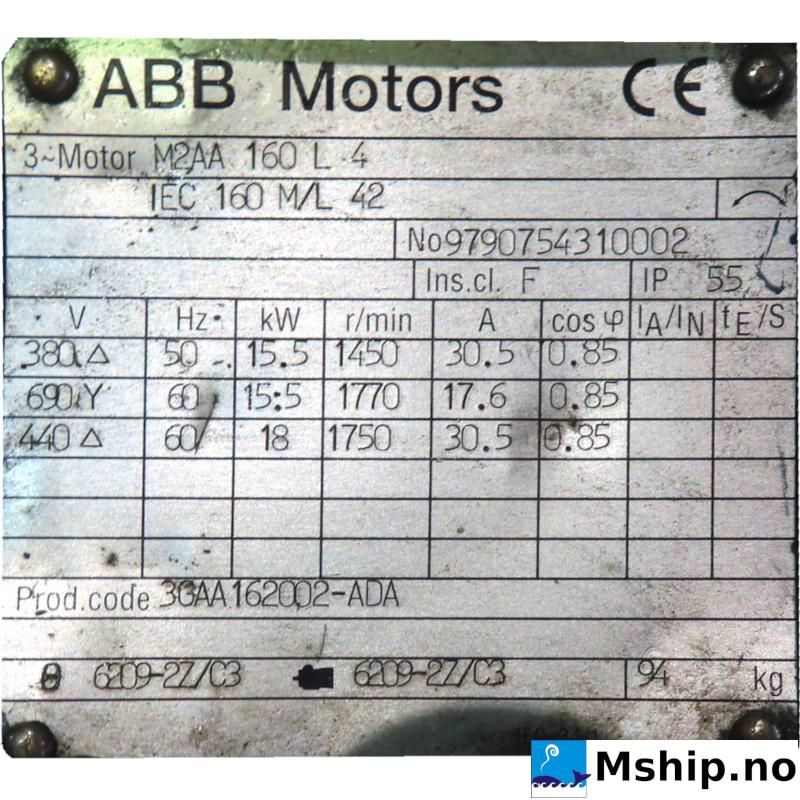

Electric motor type ABB M2AA 160 L-4, 15.5 kW 50 Hz / 18 kW 60 Hz
kW 13.3
RPM 1760
Volt 380 V Δ (50 Hz) / 440 V Δ (60 Hz) / 690 V Y (60 Hz)
Amps 30.5 A (380 / 440 V Δ) / 17.6 A (690 V Y)
HZ 50 / 60

More info

Capacity at 50 / 60 Hz: 47 m³/h at 1760 rpm (60 Hz) according to the nameplate. On 50 Hz the speed is approx. 1450 rpm, which gives approx. 39 m³/h. 60 Hz gives 20 % higher speed than 50 Hz, and thus approx. 20 % more air (theoretical, capacity follows speed). The HL2/105 is rated for max. 1800 rpm, so it can run with a 4-pole motor on both 50 Hz and 60 Hz.

We have 8 Sperre HL2/105 start air compressors in stock – ask us for the unit that fits your needs. Contact us

Model HL2/105 is a two stage 90º V-compressor.

Cylinders and compressed air coolers are air-cooled. Cooling air is supplied by a well-dimensioned fan.

Bearings and cylinders walls are splash lubricated.

The compressor and motor are normally supplied mounted together on a foundationand connected by means of a heavy-duty flexible coupling.

Both electrical and diesel engine driven versions are available.

Technical Data
Performance50 Hz (30 bar)60 Hz (30 bar)
Speed (RPM) 975 1450 1175 1750
Charging capacity (m³/h)* 30 45 37 55
Power requirement (kW) 7 10,7 9 14
Heat dissipation (kCal/h) 5418 8282 6966 10836
*Charging capacity is from ambient pressure to final pressure. Tolerance +/-5%.
Design
No. of cylinders 2
Cylinder arrangement 90° V
No. of compression stages 2
Cooling Air
Cooling system Direct driven axial fan
Valve LP Reed valve
Valve HP Concentric plate valve
Dimensions & weight
Cylinder diameter LP 105 mm
Cylinder diameter HP 50 mm
Stroke 80 mm
Weight (compressor/el.motor) 283 kg
Lubrication
Oil type Synthetic oil (see approved list)
Sump capacity 4 litres
Lubrication system Splash
Operating parameters
Maximum delivery pressure 40 bar
Ambient temperature 45°C
Normal working pressure LP 4–5 bar
Normal temperature outlet air 15°C–30°C above ambient temperature
Maximum speed 1800 RPM
Set point thermo switch air alarm/stop 75°C/80°C
Rotation Anti-clockwise (looking at the drive end)
Safety valves set point 5–10% above stage pressure
Max. noise level 84 dBA
Max. vibration level 40 mm/s-RMS
