Sperre HL2/90 Start Air Compressor — Manufacturer: Sperre, Model: HL2/90, Serial number: 902929, kW: 5,9, RPM: 1175, Volt: 380 / 440, HZ: 50 / 60, m³ /h, cubic meter per hour capacity: 27, Working pressure BAR: 30 Barg View larger

Sperre HL2/90 Start Air Compressor

sperre-90-902929

Used

Sperre HL2/90 Start air compressor

More details

Price on request

or call +47 908 92 500

Data sheet

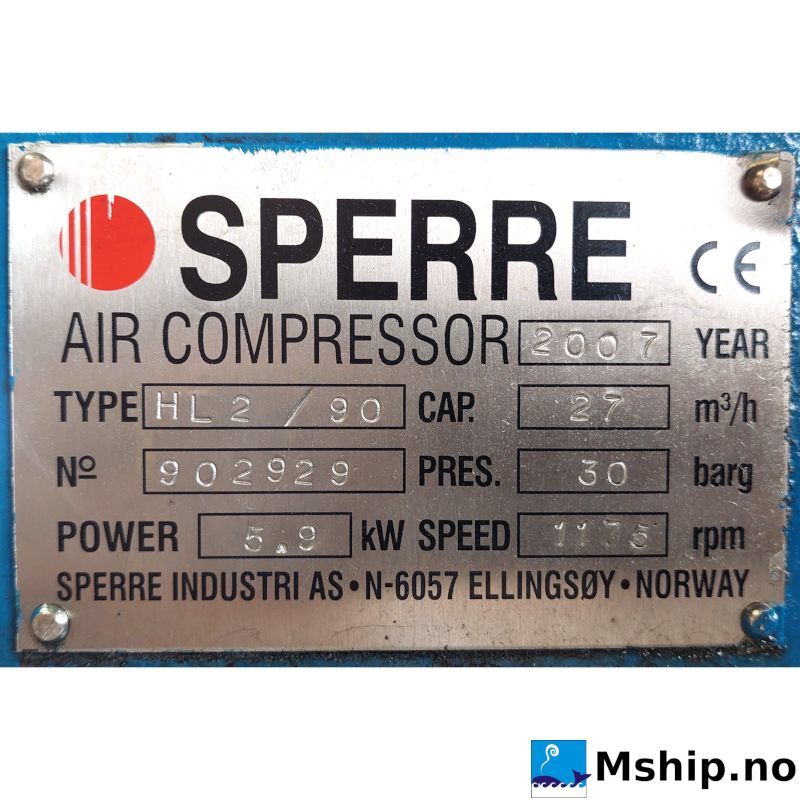

Manufacturer Sperre
Model HL2/90
Serial number 902929
Year 2007
m³ /h, cubic meter per hour capacity 27 at 1175 rpm (60 Hz) / approx. 22 at 975 rpm (50 Hz)
Working pressure BAR 30 Barg
kW 5,9
RPM 1175
Volt 380 / 440
HZ 50 / 60

More info

This item is sold. We can often source the same or a similar item. Contact us with your request.

Capacity at 50 / 60 Hz: 27 m³/h at 1175 rpm (60 Hz) according to the nameplate. On 50 Hz the speed is approx. 975 rpm, which gives approx. 22 m³/h. 60 Hz gives 20 % higher speed than 50 Hz, and thus approx. 20 % more air (theoretical, capacity follows speed).

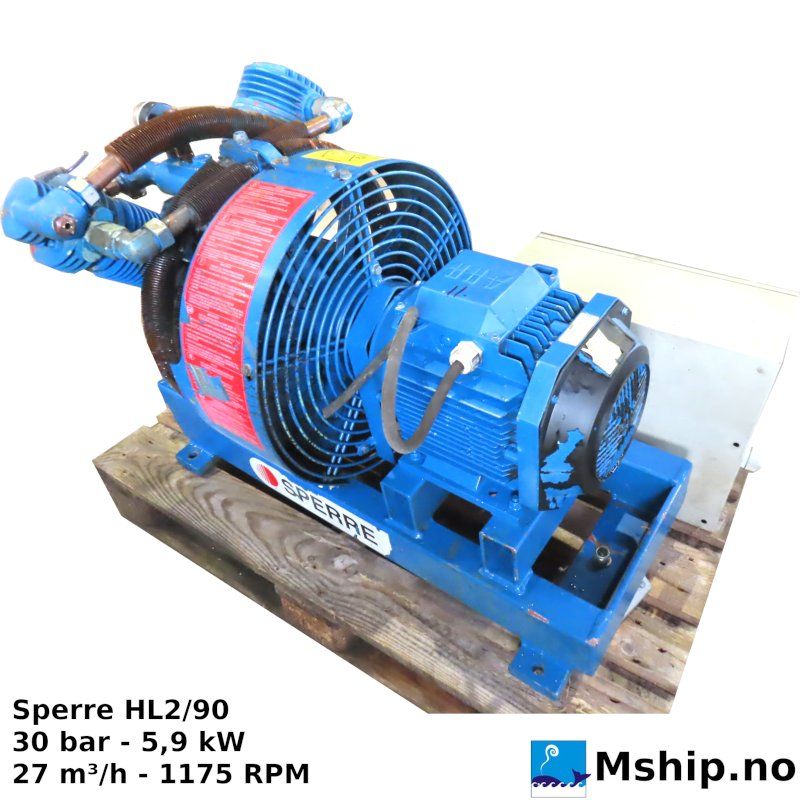

Model HL2/90 is a two stage 90º V-compressor. ( typical data )

Cylinders and compressed air coolers are air-cooled. Cooling air is supplied by a well-dimensioned fan.

Bearings and cylinders walls are splash lubricated.

The compressor and motor are normally supplied mounted together on a foundation, and connected by means of a heavy-duty flexible coupling.

Technical Data
Performance50 Hz (30 bar)60 Hz (30 bar)
Speed (RPM) 975 1450 1175 1750
Charging capacity (m³/h)* 24 35 28 40
Power requirement (kW) 5,6 8,2 6,5 10,3
Heat dissipation (kCal/h) 4334 6346 5031 7972
*Charging capacity is from ambient pressure to final pressure. Tolerance +/-5%.
Design
No. of cylinders 2
Cylinder arrangement 90° V
No. of compression stages 2
Cooling Air
Cooling system Direct driven axial fan
Valve LP Reed valve
Valve HP Concentric plate valve
Dimensions & weight
Cylinder diameter LP 90 mm
Cylinder diameter HP 50 mm
Stroke 80 mm
Weight (compressor/el.motor) 255 kg
Lubrication
Oil type Synthetic oil (see approved list)
Sump capacity 4 litres
Lubrication system Splash
Operating parameters
Maximum delivery pressure 40 bar
Ambient temperature 45°C
Normal working pressure LP 3–4 bar
Normal temperature outlet air 15°C–30°C above ambient temperature
Maximum speed 1800 RPM
Set point thermo switch air alarm/stop 75°C/80°C
Rotation Anti-clockwise (looking at the drive end)
Safety valves set point 5–10% above stage pressure
Max. noise level 84 dBA
Max. vibration level 40 mm/s-RMS
