HATLAPA L9 — Manufacturer: HATLAPA, Model: L9, Serial number: 41985, Year: 1990, HP: 4, kW: 3, RPM: 1400, Amps: 7,3, Volt: 380, HZ: 50, m³ /h, cubic meter per hour capacity: 8,4, Electric motor type: SCHORCH Type BD9100L-BA520-Z, Working pressure BAR: 30 View larger
Previous Next

HATLAPA L9

54306-hatlapa-L9

Used

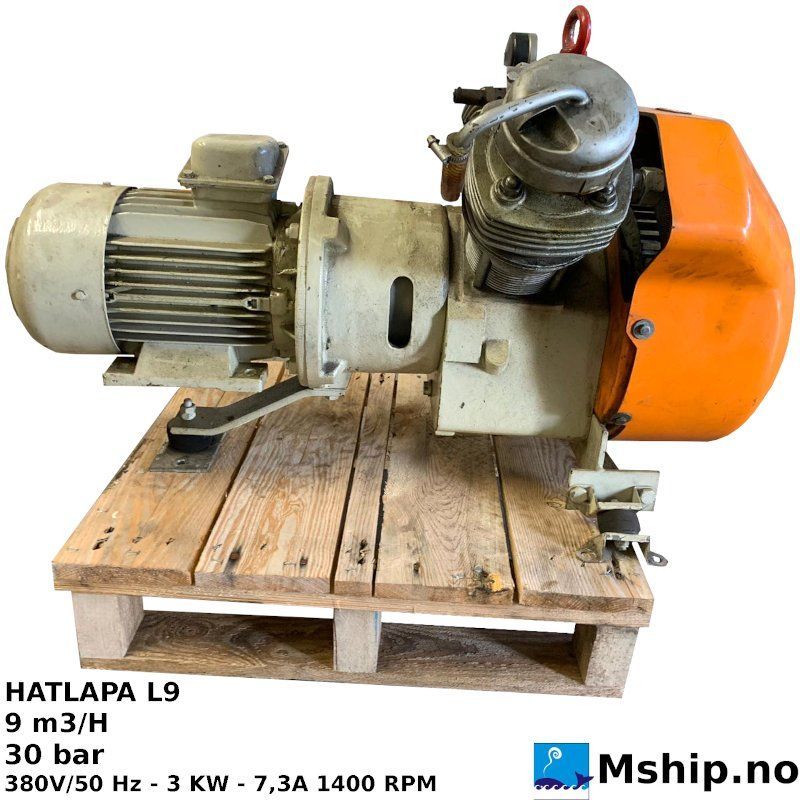

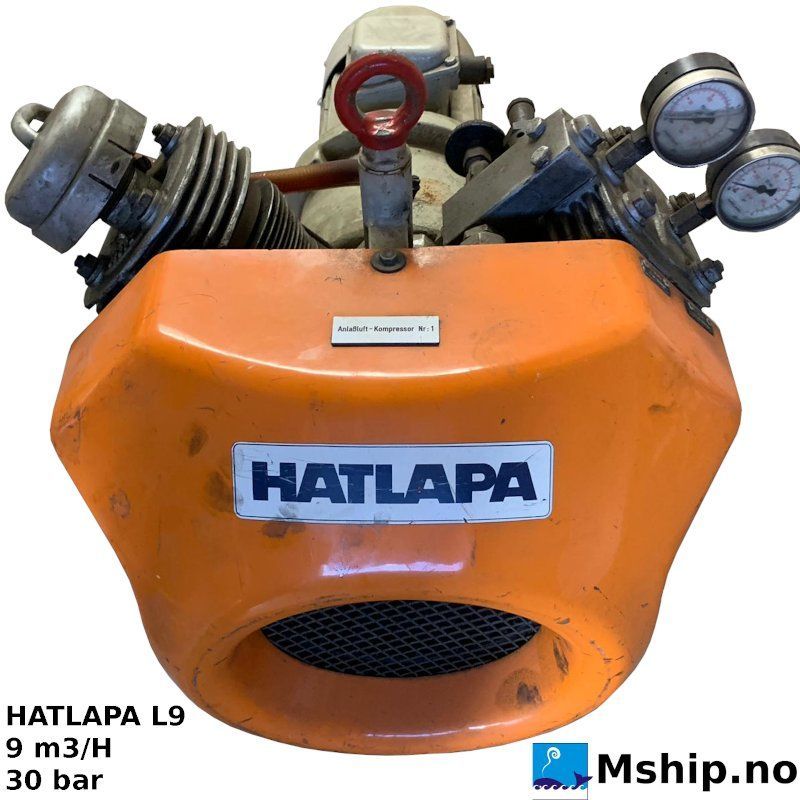

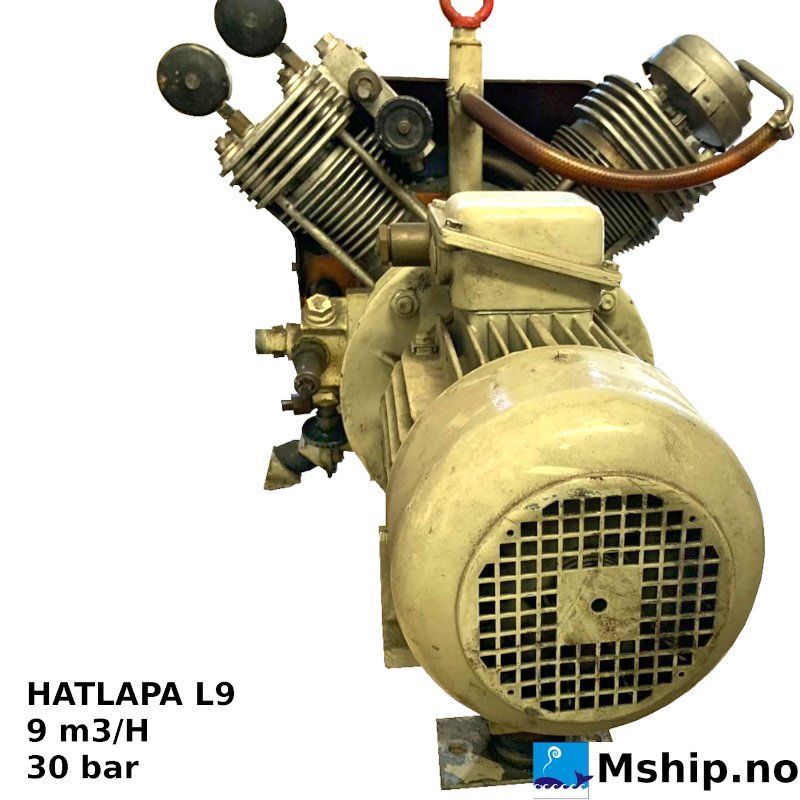

HATLAPA Air-cooled piston compressor L9.


More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer HATLAPA
Model L9
Serial number 41985
Year 1990

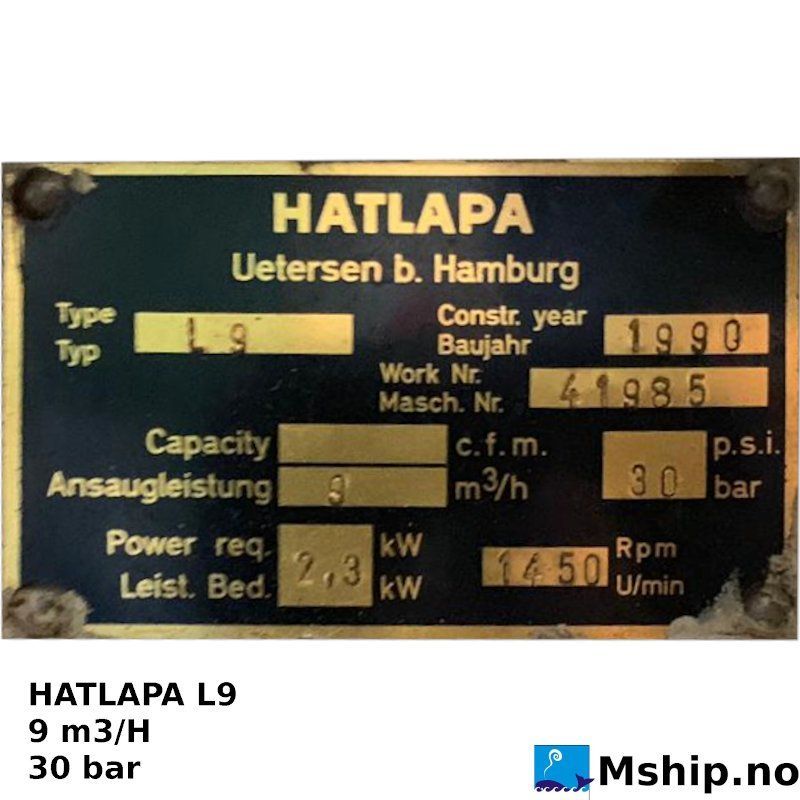

m³ /h, cubic meter per hour capacity 9 at 1450 rpm (50 Hz, nameplate) / approx. 10.5 at 1750 rpm (60 Hz)
Working pressure BAR 30

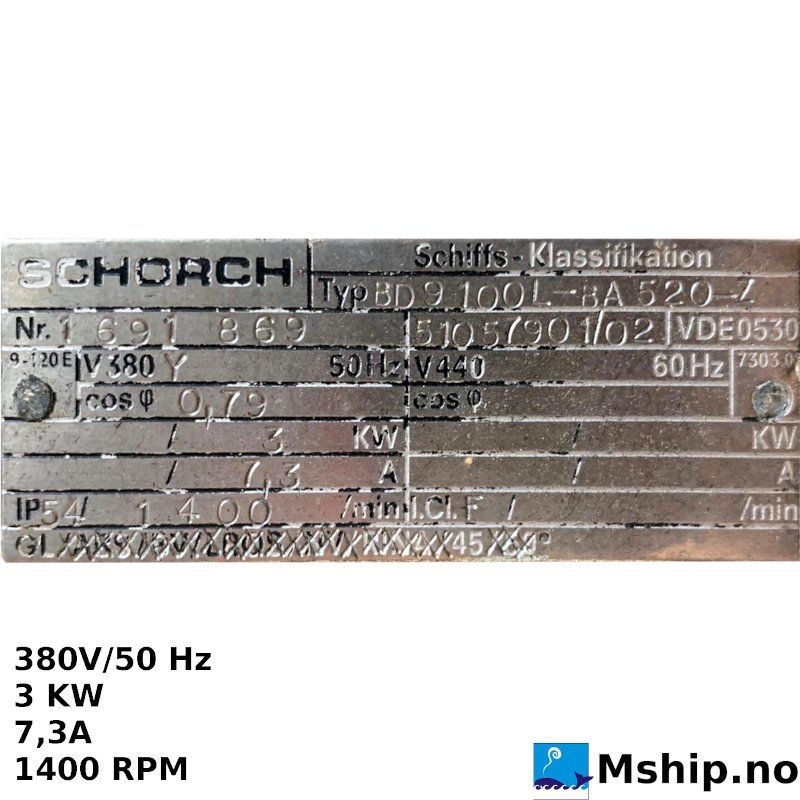

Electric motor type Schorch BD9100L-BA520-Z, 3 kW, 380 V Y, 50 Hz, 7.3 A, 1400 rpm
kW 3
HP 4
RPM 1450 (compressor, nameplate) / 1400 (motor)
Volt 380
Amps 7,3
HZ 50

More info

This item is sold. We can often source the same or a similar item. Contact us with your request.

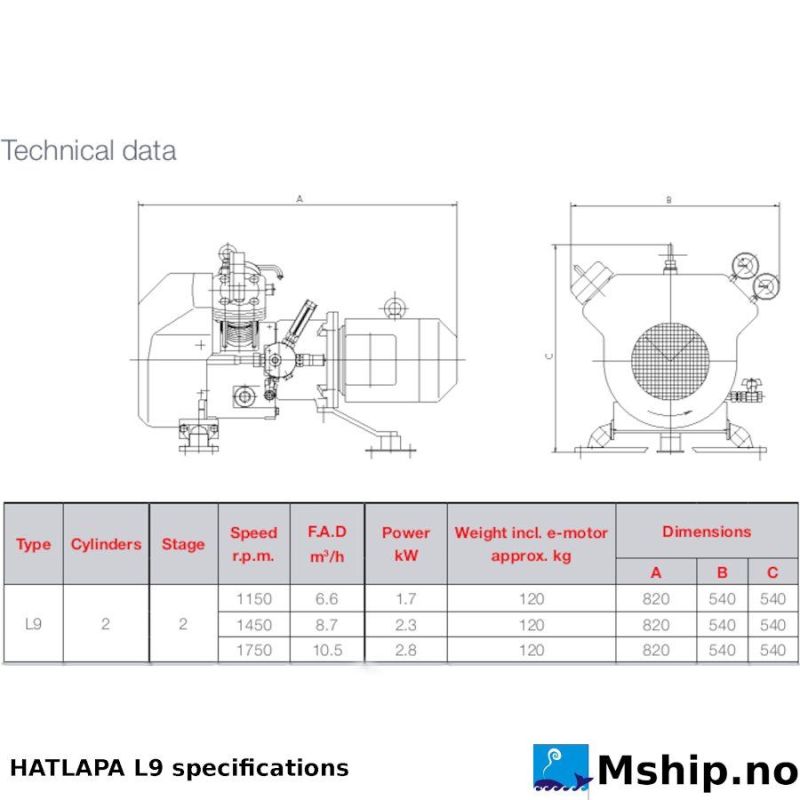

50 / 60 Hz: 9 m³/h at 1450 rpm (50 Hz) according to the nameplate (power required 2.3 kW). Hatlapa data for the L9: 6.6 m³/h at 1150 rpm, 8.7 m³/h at 1450 rpm and 10.5 m³/h at 1750 rpm (2.8 kW). On 60 Hz the speed is 20 % higher, which gives approx. 20 % more air – the 3 kW motor covers this, but its nameplate only states 50 Hz.

Structural features:

  • Two staged cylinders in 90° V-arrangement, with
  • one-throw crankshaft, single acting trunk pistons
  • 1st stage: 1 cylinder
  • 2nd stage: 1 cylinder

Valves:

  • Combined suction and pressure valves for both stages

Air cooling:

  • By radial fan directly driven by the crankshaft

Intercooler and aftercooler:

  • Finned pipes

Splash lubrication:

  • Oil level inspection glass
  • Crankcase venting from oil filler to air suction filter

Bearings:

  • Crankshaft: cylinder roller bearings
  • Connecting rod: needle roller bearings
  • Wrist pin: needle roller bearings
