EMERSON MAS 2600 G30-10-1/1P

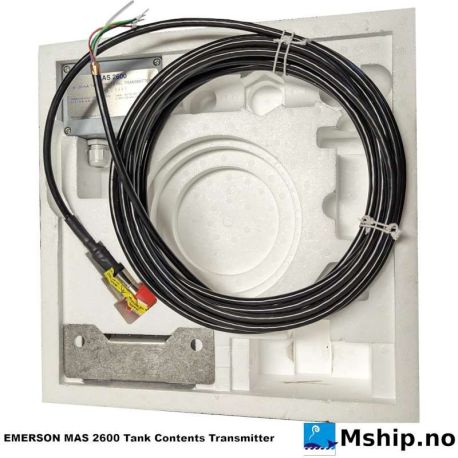

EMERSON MAS 2600 Tank Contents Transmitter
Model MAS2600-G30-10-1/1P

22 pcs in stock

MAS 2600 Tank Contents Transmitter
The MAS 2600 is a 2-wire 4-20 mA level transmitter consisting of a transducer, an amplifier and an
interconnecting cable.

Transducer
The transducer is a pressure sensitive silicon micro strain gauge sensor mounted in a glass to metal
seal. The sensor is protected by an isolation diaphragm, welded to the transducer housing, with an oil
filling between the sensor and the diaphragm. Pressure changes on the front of the diaphragm will
bring a resistance change in the Wheatstone bridge of the transducer. This change in the Wheat-
stone bridge will be transmitted to the amplifier as a change in the electrical signal.
The transducer is fully welded, housed in titanium with a titanium diaphragm.
All transducer types are submersible (IP68).

Application
The MAS 2600 has been developed for level measuring in ballast, oil, service and fresh water tanks as
well as tanks containing media which are not hostile to titanium.

Intrinsically Safe in Hazardous Areas
The MAS 2600 is certified for use with standard transmitter safety barriers or Ex isolation amplifiers
and is Ex ia [ia Ga] IIC T4 Gb compliant in accordance with IEC/EN 60079-0 and IEC/EN 60079-11.

Type Approvals
DNV, GL, LRS, MRS, BV, RINA, KRS, ABS, PRS.
CE marked in accordance with EU directive.
