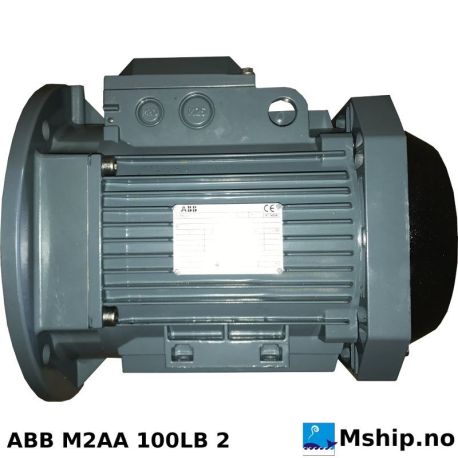

Electric motor ABB M2AA 100LB 2

rw151

New product

Electric motor ABB 3GAA101212-BSE

More details

  • Click HERE for more information
  • Product Request:


    Electric motor ABB M2AA 100LB 2

    Electric motor ABB M2AA 100LB 2

    Electric motor ABB 3GAA101212-BSE

    do not include special characters

    * Required fields

    Cancel

    Data sheet

    ManufacturerABB
    Model M2AA 100LB 2
    Manufacturers part number3GAA101212-ADE
    HP4
    kW3
    RPM2920@50 Hz - 3530@ 60 Hz
    OtherEAN: 3GAA101212-ADE
    Rotation directionCW + CCW

    More info

    3GAA101212-BSE

    General Information

    • Product ID:
      3GAA101212-BSE
    • ABB Type Designation:
      M2AA 100LB 2
    • EAN:
      3GAA101212-BSE
    • Catalog Description:
      M2AA 100LB 2

    Additional Information

    • ABB Type Designation:
      M2AA 100LB 2
    • Altitude:
      1000 m
    • Ambient Temperature:
      40 °C
    • Bearing:
      6306-2Z/C3
    • Bearing NDE:
      6205-2Z/C3
    • Country of Origin:
      Poland (PL)
      Sweden (SE)
    • Customs Tariff Number:
      85015220
    • Direction of Rotation:
      Both sides
    • EAN:
      3GAA101212-BSE
    • Electrical Data:
      ConnTemp ClassFreqVoltagePowerSpeedCurrentPower FactorEfficiency
      D--50 Hz230 V3.00 kW2920 r/min10.10 A0.86086.40 %
      Y--50 Hz400 V3.00 kW2920 r/min5.80 A0.86086.40 %
      Y--60 Hz460 V3.00 kW3530 r/min5.10 A0.84087.50 %
    • Gross Weight:
      25 kg
    • IC Class:
      IC411
    • IE Class Data (50 Hz):
      IE Class IE2
      Full Load (100%) 86.4 %
      Partial Load (75%) 86.0 %
      Partial Load (50%) 83.9 %
    • IE Class Data (60 Hz):
      IE Class IE2
      Full Load (100%) 87.5 %
      Partial Load (75%) 85.5 %
      Partial Load (50%) 83.5 %
    • IM Class:
      IMB5 IM3001
    • IP Class:
      IP55
    • Insulation Class:
      ICLF
    • Lubrication:
      For life
    • Moment of Inertia:
      0.00500 kg/m³
    • Package Level 1 Units:
      0 carton
    • Poles (High):
      2
    • Product Name:
      3-Phase squirrel cage motor
    • Product Net Weight:
      25 kg
    • Product Type:
      2AA2__M2AA__IE2_AA
    • Standards:
      IEC_60034-1
    • Starting of Motor:
      Direct Online
    • Temperature Class Default:
      --
    • Terminator Box Location:
      D-End top
    • Two Speed Motor:
      No
    • Type of Duty:
      S1
    • Voltage Code:
      S
