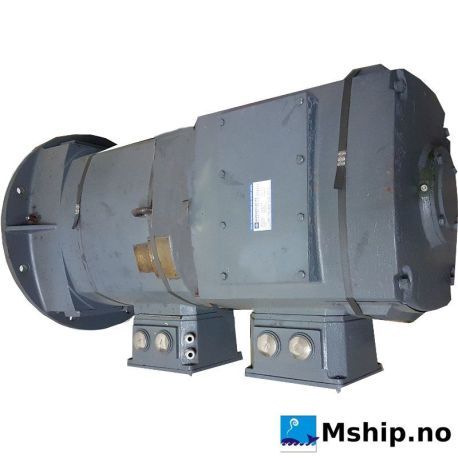

Indar Type NAR280M/4 Power: 220 kW electric Bow thruster engine View larger
Previous Next

Indar Type NAR-280-M/A Power: 220 kW electric Bow thruster engine

23-10-17-1241-indar

Refurbished

Indar Type NAR-280-M/A  Power: 220 kW electric Bow thruster engine

Indar Type NAR280M/4 Power: 220 kW electric Bow thruster engine

More details

    • Data sheet

    ManufacturerIndar electric motors
    ModelNAR-280-M/A
    Manufacturers part numberMCA. S-2/30
    Serial number950.997
    Performance specificationImpeller number: 950997
    HP295
    kW220
    RPM1760
    OtherMCA.S-2/30 N 950.997
    Amps395
    Volt440
    HZ60
    cos φ0,79

    More info

    Indar Type NAR-280-M/A  Power: 220 kW electric Bow thruster engine.

    1 completely overhauled electric motor (purpose bow thruster)

    Manufacturer: Indar

    Indar Type NAR-280-M/A

    Power: 220 kW

    Voltage: 440 V

    Revolution: 1760

    Impeller number: 950997

    Completely overhauled as per enclosed

    Type Plate:

    NAR-280-M/A

    MCA.S-2/30 N 950.997

    440 V 395 A

    KW 220 cos phi φ 0,79

    1760 / min 60 Hz

    FR=465 V IR = 280 A

    IP26 0,73 t

    4-3-96

    Shaft

    80 mm diameter shaft

    177 mm length shaft

    Flange recess 545 mm

    Download

    BowThruster-worksDone.pdf

    Inedar-BowThruster-service-report

    Download (2.31M)
