230' AHTS. DP2. Built: 2009

VSL2019-59532850

Used

230' AHTS. DP2.  Year: 2009

More details

  • Click HERE for more information
  • Product Request:


    230' AHTS. DP2. Built: 2009

    230' AHTS. DP2. Built: 2009

    230' AHTS. DP2.  Year: 2009

    do not include special characters

    * Required fields

    Cancel

    Data sheet

    Manufacturer P.T. JAYA ASIATIC SHIPYARD
    Model 70.05M AHSV, Yard No 871B.
    Year 2009
    Fuel Type MDO
    Class ABS ✠A1, Towing Vessel, Offshore Support Vessel AH,FiFi 1, DPS2 , ✠AMS
    Length Overall LOA Meter 70.05
    Length between Perpendicular Meter 63
    Molded Breadth Meter 16
    Design Draft Meter 4.57 m
    Molded Depth Meter 7,2
    Draft (Maximum) Meter 4.88 m
    Loadline Displacement: 3,830.68 MT
    Cargo Deck Area: 476,04 m 2
    Deck Cargo Capacity: 600.00 MT
    Deadweight Tonnage: 2579.43 MT
    Gross tonnage ITC (registred) 2342 MT
    Net Tonnage ITC (registred) 702 MT
    Fuel Oil: 870,98 m 3
    Fresh Water M³ 613.82 m 3
    Ballast M³ 437.23 m 3
    Dry Bulk: 200 m3
    Liquid Mud: 613,12 m 3
    Main Engines: Two Wärtsilä 6L32A / 72570-5, 9 cylinder, 3000 kW each @ 750 rpm. total 6000 kW.
    Total Propulsion HP: 8158 HP
    Propulsion: 2 x WARTSILA PROPULSION NORWAY AS CPP Bronze-ABS-Type 4 Ni-Al Bronze
    Shaft Generators: Two LEROY SOMER LSAM 50.1 VL 10 4P
    Ship’s Service Generators: Two (2) x LEROY SOMER LSAM 471 L 9, 370 kW each
    Positioning: DP 2
    ACCOMMODATIONS: 42
    LIFESAVING EQUIPMENT Six (6) x 25 Life Rafts One (1) SOLAS FRC
    Deck strenght m ² 7.5 Metric Ton/m2
    Maximum speed 13.5 knots
    Bollard pull 99.297 Metric Ton

    More info

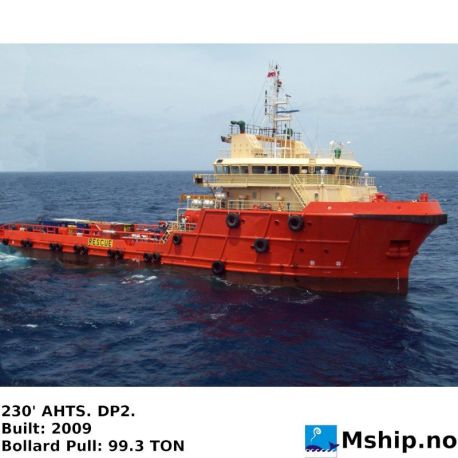

    230' AHTS. DP2.  Year Built: 2009
    70.05 m X 16.00  m X 7,20 m
