Manufacturer | Wärtsilä Wichmann |
Model | 10V28B |
Serial number | 6107 |
Year | 1995 |
HP | BHP 4550 IHP 5290 |
kW | Brake power 3345 kW Indicated power 3890 kW |
RPM | 660 |
Cylinder bore | 280 mm |
Piston Stroke | 360 mm |
Number of cylinders | 10 |
Displacement | 221,7 Liter |
Cylinder configuration | V-engine |
Rotation direction | Port side engine |
Turbo model | ABB VTR354-11 HT413029 |
Class | DNV |
Other | Engine speed R/S: 11 |

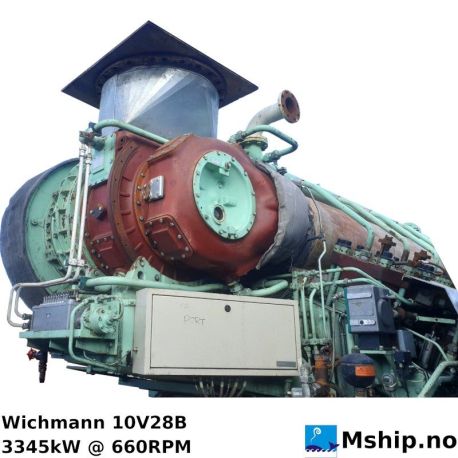

Wärtsilä propulsion
Wichmann 10V28B
3345Kw / 4550HP @ 660RPM
Port side engine, to see starboard side, click HERE.
Complete engines may sometimes be dismantled for spare parts.
Don't hesitate to ask us!
