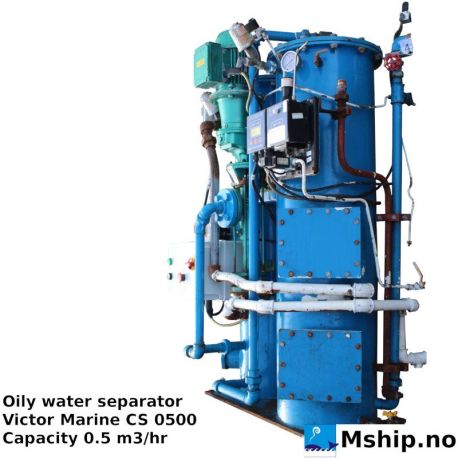

Victor Marine CS 0500 Oily water separator

Reference: VictorMarineCS0500

Condition: Used

Victor Marine CS0500 Oily water separator

Manufacturer	Victor Marine
Model	CS 0500
Serial number	000339
Year	2008 / overhauled SEP 2015
kW	0,5 / inclusive heater: 1,55
Class	Wheel marked
HZ	50/60
m³ /h, cubic meter per hour capacity	0,5
Electric motor type	Leroy-Somer type CB3131 B5
Working pressure BAR	1,38
Test Pressure BAR	3,45

Capacity	0.5 m³/hr (132 US gal/hr)
Dimensions
Width (inc. Maint.)	1041mm (1655mm)
Depth (inc. Maint.)	655mm (1080mm)
Height (inc. Maint.)	1474mm (1700mm)
Weight
Dry	270kg
Wet	420kg
Power
50 Hz (60Hz)	0.55kW (0.55kW)
inc. heater	1.55kW (1.55kW)
Connections
Inlet Suction	32mm (1 1/4")
Overboard	25mm (1")
Return to bilge	25mm (1")
Recovered Oil	25mm (1")
Flush Valve	15mm (1/2")
Pressure Relief	15mm (1/2")
Pressure
Operating	1.38 Bar (20 psi)
Maximum	3.45 Bar (50 psi
Water Requirement	No back-washing required. Clean water required for oil content monitor and commissioning. Recommended pressure 0.5 – 4 bar.
Air Requirement	Air Pressure of 4-7 bar for operation of pneumatic valves only.

Victor oil separators-brochure
