MTU 20V 4000 P63 Generator set 2500 kWe - EDG for Nuclear Power Plants

MTU20V4000P63-1

New product

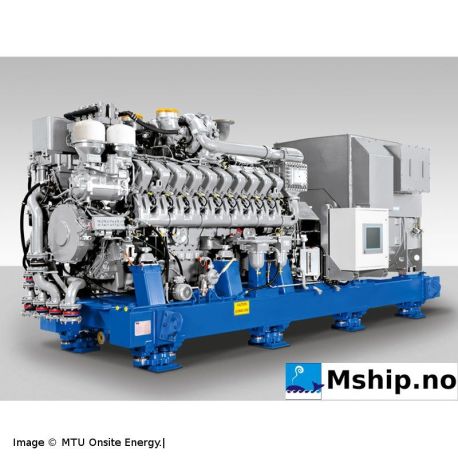

MTU 20V 4000 P63  Generator set   2500 kWe -  EDG for Nuclear Power Plants

Series 4000 NPP Gensets  - SOLD


More details

  • Data sheet

    ManufacturerMTU
    Model20V 4000 P63 EDG for Nuclear Power Plants
    Performance specificationEmergency Diesel Generator for Nuclear Power Plants
    Year2012
    HP3353
    kW2500
    RPM1500
    Running Hours135
    Number of cylinders20
    Cylinder configurationV-engine
    Fuel TypeDiesel
    ClassIAEA 50-C-Q
    OtherNew unit - Only 135 running hrs for testing.
    Generator end typeLloyd Dynamowerke S5E710M50-4SE
    Amps293
    Volt6300
    HZ50
    kVA3200

    More info

    MTU 20V 4000 P63  Generatorset   2500 kWe -  EDG for Nuclear Power Plants

    MTU Series 4000 NPP Genset.

    • Highest availability and reliability
    • Start-up time: 10 seconds until readiness for load acceptance
    • Load acceptance capability of 50% in the first load step
    • Compatible with all diesel building designs within its power range due to optimum relation of power to dimensions and weight
    • High level of system integration into the base frame to reduce the number of separate mechanical systems and interfaces
    • Certification according the IEEE 387 and KTA 3702 (further nuclear standards on customer demand)
    • Quality management in engineering and manufacturing according EN ISO 9001, KTA 1401and IAEA 50 C QA Rev.1
    • Load Profile : Continuous power rating of all MTU NPP Engines is in accordance with ISO 8528.
      This genset are capable of supplying the maximum nominal power at the alternator terminals for a cumulated length of 8760 hours.

    Equipment

    • Engine: MTU 20V4000 P63 type-tested according KTA 3702
    • Governor: SafeDEC engine control unit (IEC 60880-certified)
    • Cooling System: Dual-circuit engine cooling, - With Alfa Laval M10-MFD Plate heat exchangers
    • Fuel System: Common rail fuel injection
    • Generator: Lloyd Dynamowerke S5E710M50-4SE. Design according IEC,DIN, BS; with class protection IP44
    • Starting system: Compressed air with pneumatic motor Air Starting System. The Air Starting System consists of an electrically driven air compressor,compressed air vessels and start-up valves.
    • Dimensions L x W x H   7.2 x 2.7 x 2.9 m
    • Weight approx.  32 t
    • Start-up time 10 s
    • Nominal power  2500 kWe
    • Nuclear codes KTA 3702 / IEEE 387
    • Number of cylinders 20V
    • Rated speed 1500 RPM
    • Cylinder config. 90°V
    • Bore/Stroke 170 mm / 210 mm
    • Electronic engine governor  MTU SafeDEC
