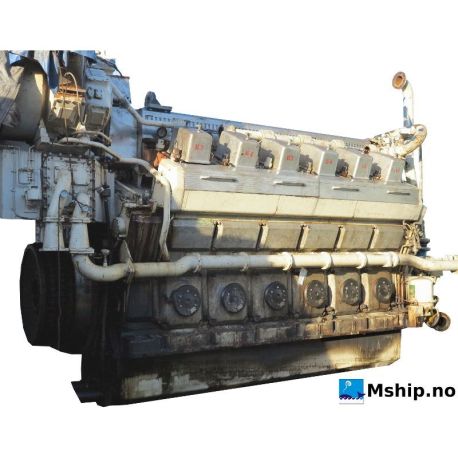

Wärtsilä 12V32LN mship.no View larger
Previous Next

Wärtsilä 12V32LN

4822416

Used

Wärtsilä 12V32LN

Wärtsilä 12V32LN

More details

    • Data sheet

    Manufacturer Wärtsilä
    Model 12V32LN
    Serial number PAAE098772
    Year 2008
    HP 6032
    kW 4500
    RPM 750
    Running Hours 19504
    Cylinder bore 320 mm
    Piston Stroke 400 mm
    Number of cylinders 12
    Displacement 386 Liter
    Cylinder configuration V-angle . 55°
    Rotation direction CW - Clockwise seen from aft
    Fuel Type HFO
    Turbo model ABB, Type: VTR304P11
    Other Valmet gearbox for this engine available.
    Weight 57 Tons

    More info

    The Wärtsilä 32 is a 4-stroke, non-reversible, turbocharged and intercooled diesel engine with direct fuel
    injection.

    • Piston displacement .............. 32.2 l/cylinder
    • Number of valves .................. 2 inlet valves2 exhaust valves
    • V-angle .................................. 55°
    • Speed .................................... 720, 750 rpm
    • Mean piston speed ............... 9.6, 10.0 m/s

    Wärtsilä 12V32LN

    Latest service record form Wärtsilä:

    Main Engine – Complies with engine requirements contained in Annex VI to the international convention for the prevention og pollution from ships (MARPOL 73/78) – 10.01.2013

    32 - ME workshop overhaul – 08.08.2014
    -Standard overhaul of pistons with connecting rods, cylinder liners, fuel pumps, charge air coolers and components from cylinder heads after 12 000 h.

    sister engine available, see; http://mship.no/engines-equipment/278-waertsilae-12v32-d.html
